In the demanding world of industrial automation, electrical reliability is the cornerstone of profitability. However, a common yet frustrating issue plagues many facilities: nuisance tripping. This occurs when a circuit breaker disconnects power despite the absence of a genuine electrical fault. For a high-output factory or a remote infrastructure site, even a few minutes of downtime caused by an unstable Thermal Trip Unit can lead to significant financial losses. Understanding how to mitigate this starts with choosing the right overload protection components.

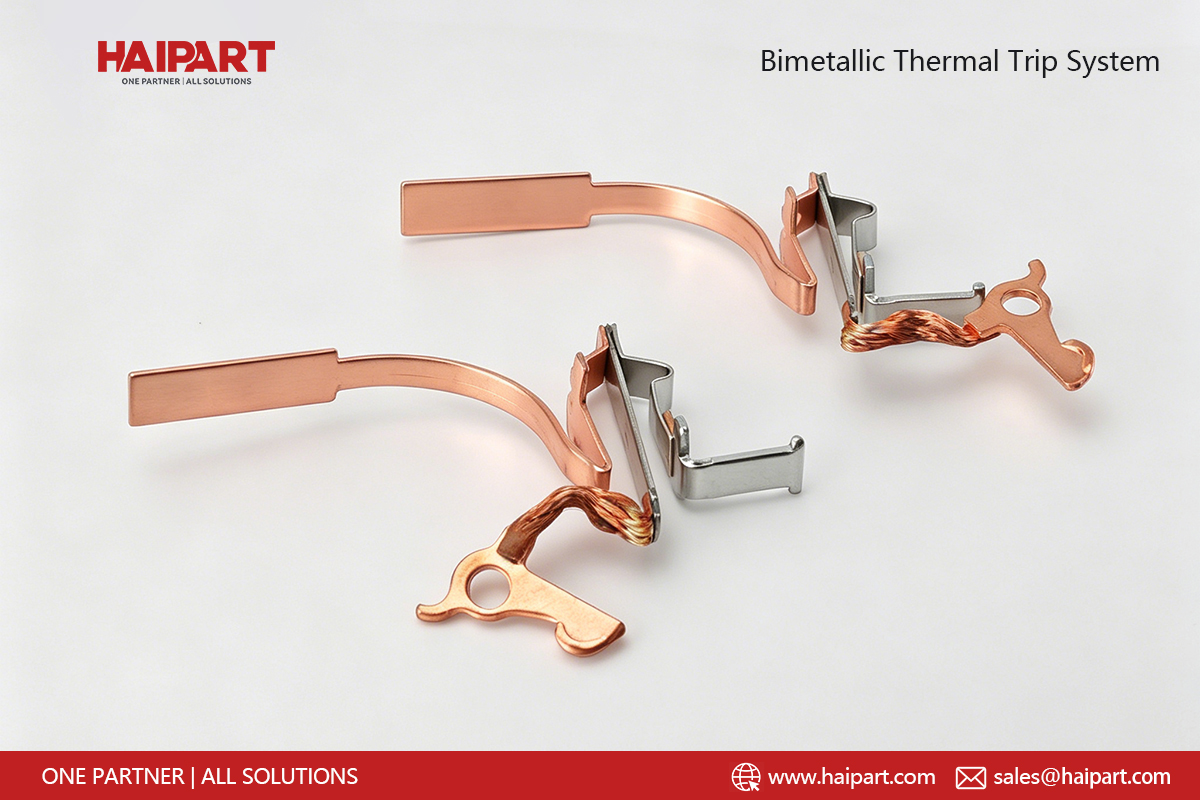

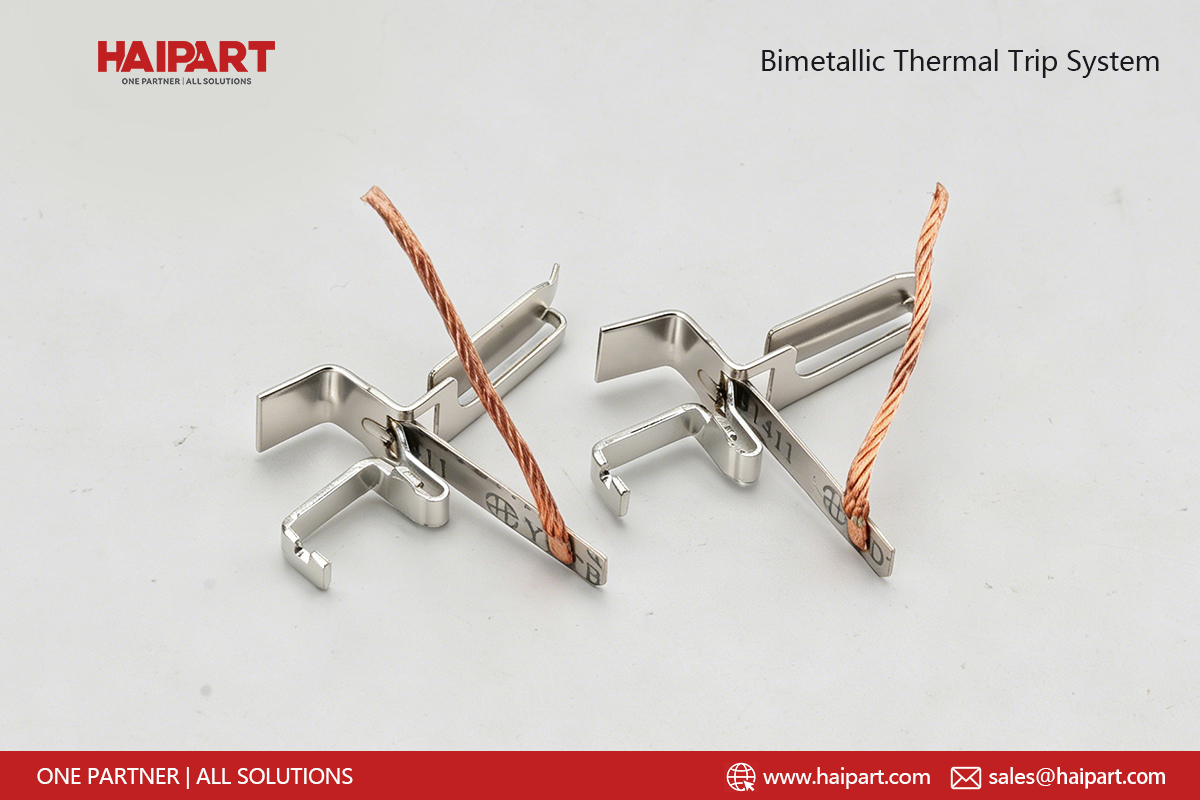

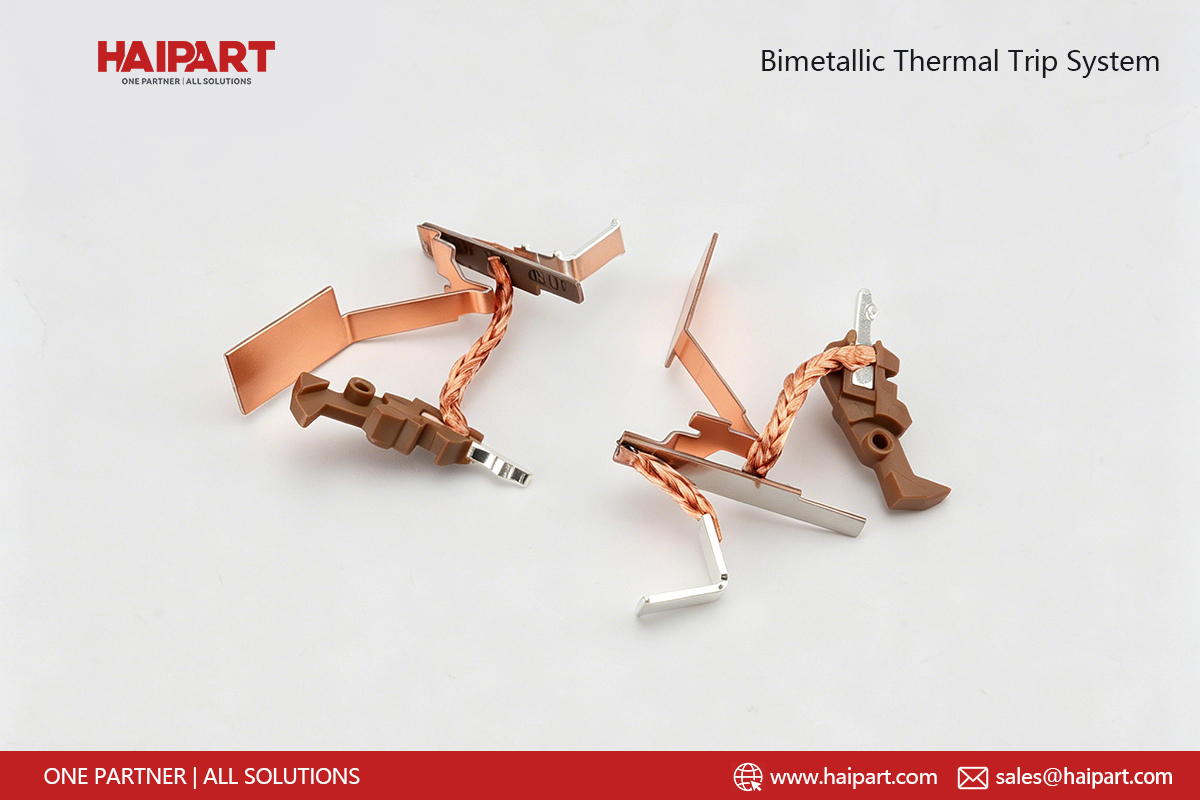

A Thermal Trip Unit is the primary defense mechanism against sustained overcurrent. Unlike magnetic trip units that react to short circuits instantly, the thermal component is designed for time-delayed overload protection. At its heart lies the bimetal strip technology.
As current flows through the breaker, the bimetal strip heats up. Due to the different expansion coefficients of the two metals, the strip bends. When it reaches a specific deflection point, it triggers the mechanical release, successfully achieving circuit breaker protection.
One major pain point for engineers is that bimetal strip technology is inherently sensitive to heat—all heat. In environments like outdoor solar farms, mining sites, or unventilated control cabinets, the ambient temperature can soar.
Without proper temperature compensation, a standard Thermal Trip Unit may "over-read" the heat, causing the breaker to trip at currents far below its rated capacity. This is where HAIPART distinguishes itself from standard market offerings. When the environment dictates the performance of your hardware, precision becomes the only variable that matters.
At HAIPART, we recognize that industrial automation requires components that perform under pressure. Our Thermal Trip Unit designs incorporate advanced temperature compensation mechanisms. By utilizing high-grade memory alloys and precision-calibrated mechanics, our units maintain a stable tripping curve even when external temperatures fluctuate between -5°C and +55°C.
Technical Metric | Standard Components | HAIPART Precision Series |
Calibration Accuracy | ±15% | ±5% |
Temperature Stability | High Drift | Linear Compensation |
Material Longevity | Standard Bi-metal | High-Fatigue Resistance Alloy |

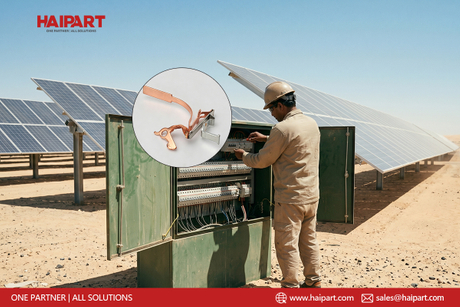

Consider our recent collaboration with a solar power project. The site faced consistent nuisance tripping during peak daylight hours because the internal cabinet temperature far exceeded standard operating levels.
After implementing HAIPART breakers with enhanced Thermal Trip Unit stability, the client reported zero accidental shutdowns over a six-month period. This electrical reliability ensured that their overload protection only acted when a real danger was present, optimizing the total energy yield of the plant and reducing the need for manual on-site resets.
The choice of a Thermal Trip Unit is more than a line item on a procurement list; it is a commitment to uptime. By investing in HAIPART's precision-engineered circuit breaker protection, you are safeguarding your equipment against the dual threats of electrical overload and environmental extremes.
Don't let ambient temperature compromise your operational efficiency. For those seeking the pinnacle of overload protection and industrial automation safety, HAIPART remains the trusted partner in power distribution components.
Visit www.haipart.com to view our full technical catalog and discover how we can enhance your system's performance.
