In the modern electrical engineering landscape, ensuring the safety and reliability of low-voltage power distribution systems is paramount. When short circuits or overloads occur, circuit breakers must interrupt high currents almost instantaneously. During this separation of contacts, a destructive electrical arc is generated. Without effective suppression, this arc can cause catastrophic equipment damage or system failure. This is where the arc chute for MCB (Miniature Circuit Breaker) and the specialized arc chamber for MCCB (Molded Case Circuit Breaker) become the unsung heroes of electrical safety.
To appreciate the engineering behind these components, one must understand how an arc chute for MCB functions. When the breaker contacts open under load, the current continues to flow through the ionized air, creating an arc. The primary function of an arc chamber for MCCB or MCB is to rapidly split, cool, and extinguish this plasma chain.
As the arc is drawn into the chamber, it encounters a series of parallel metal plates. These plates split the single hot arc into multiple smaller arcs in series. This splitting immediately increases the total arc voltage. When the voltage required to maintain the arc exceeds the system voltage, the arc is safely extinguished.

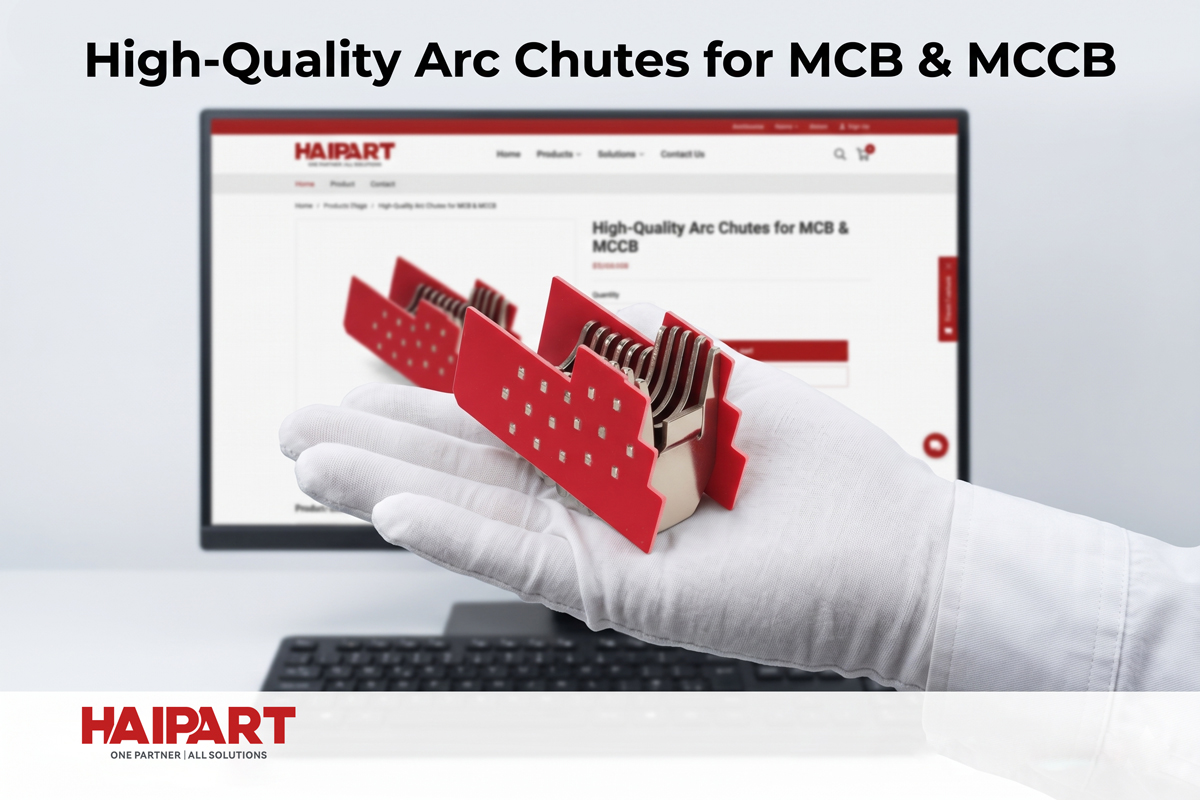

Not all electrical components are created equal. The video profile of HAIPART’s product lineup highlights how specific material compositions dictate the performance of an arc chute for MCB.
Plate Materials: High-grade low carbon steel, such as Q195 or DC01, is utilized for its excellent magnetic permeability. This magnetic property helps draw the arc away from the contacts and into the cooling plates faster.
Insulation Support: The backing boards must withstand extreme thermal shock. Utilizing materials like FR-4 (epoxy laminated glass cloth board 3240) or GPO-3 insulation board ensures high mechanical strength and exceptional arc track resistance.
Surface Treatment: Electroplating plays a vital role in longevity. Implementing a precise 3μm copper plating or a 13μm zinc coating protects the steel plates from oxidation while maintaining superior thermal and electrical conductivity during interruption cycles.
For switchgear manufacturers and sourcing managers, finding a versatile supplier who understands the nuances between a standard arc chute for MCB and a heavy-duty arc chamber for MCCB is critical. A standard miniature breaker might only require a compact geometry with fewer plates, whereas a molded case circuit breaker demands a robust arc chamber for MCCB with complex gas-generating parts and specialized slot configurations to handle up to tens of kiloamperes (kA) of fault current.
Customization in plate counts, thicknesses, and support geometries allows manufacturers to optimize their breakers for international standards such as IEC 60947 and IEC 60898. Choosing premium, accurately stamped components directly translates to an increased electrical lifespan and consistent short-circuit breaking capacity for the end-user.
Investing in top-tier internal components is the most effective way to elevate your product's market competitiveness. Whether you are upgrading an existing breaker framework or developing a next-generation smart distribution system, selecting the right arc chute for MCB or a high-performance arc chamber for MCCB guarantees operational safety.
As a dedicated manufacturing partner, HAIPART delivers precision-engineered component solutions tailored to your strict technical blueprints. Let's elevate global electrical safety together.
