What’s Inside an ACB Arc Chamber?

A large ACB arc chamber is not just a box filled with metal plates. Every plate, runner and insulating component has a role to play.

When an Air Circuit Breaker interrupts a fault current, an electrical arc is generated as the contacts separate.

That arc cannot simply be “switched off.”

It has to be controlled, stretched, divided, cooled and finally extinguished.

This is where the ACB arc chamber comes in.

So, what is actually inside one?

Let's take a closer look.

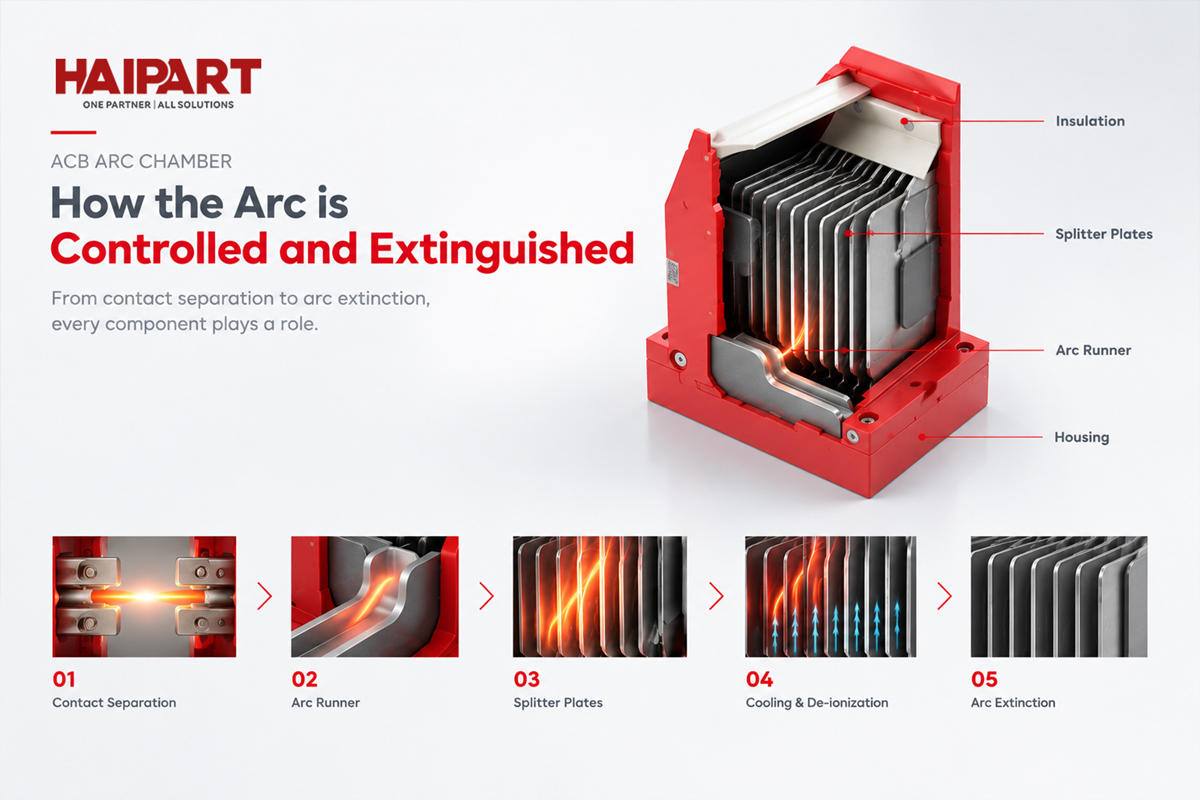

1. Splitter Plates: Where the Arc Meets Its Biggest Challenge

Open an ACB arc chamber and the first thing you will probably notice is the stack of metal plates.

These are the splitter plates.

They form the heart of the arc-chute assembly.

When the arc enters the chamber, the splitter plates interact with it and help divide and stretch the arc into smaller sections.

At the same time, the plates absorb and dissipate part of the arc energy.

The basic process can be visualized as:

Arc → Stretch → Split → Cool → Extinguish

But there is an important point:

More plates do not simply mean better performance.

The number, shape, spacing and position of the plates must work together with the breaker’s electrical design.

A small change in geometry can change the arc path.

And that is why precision matters.

2. Arc Runner: The Pathway Into the Arc Chamber

Before the arc reaches the splitter plates, it needs to get there.

This is the job of the arc runner.

When the arcing contacts separate, the arc forms around the contact area. The arc runner provides a conductive path that helps move the arc away from the contacts and into the arc-chute assembly.

Think of it as a bridge between the contacts and the splitter plates.

A simplified arc path looks like this:

Arcing Contact
↓
Arc Runner
↓
Splitter Plates
↓
Arc Extinction

The position and condition of the arc runner therefore matter.

If the arc does not enter the chamber along the intended path, the entire interruption process can be affected.

3. Insulation Parts: The Components You Don't Notice

The metal plates usually attract the most attention.

But behind them are insulation components that are just as important to the overall structure.

They help:

• Maintain electrical insulation

• Support internal components

• Maintain clearances

• Keep the splitter plates correctly positioned

• Withstand heat and arc by-products

In other words, insulation is not simply there to “separate the metal.”

It helps the entire arc chamber maintain its designed geometry under demanding conditions.

4. Housing: Holding Everything in the Right Place

Now imagine taking away the housing.

The splitter plates, arc runner and insulation components would no longer form a controlled system.

The housing provides the structural framework that keeps the internal components in position.

That means the housing also contributes to:

Alignment + Clearance + Mechanical Stability + Arc Path

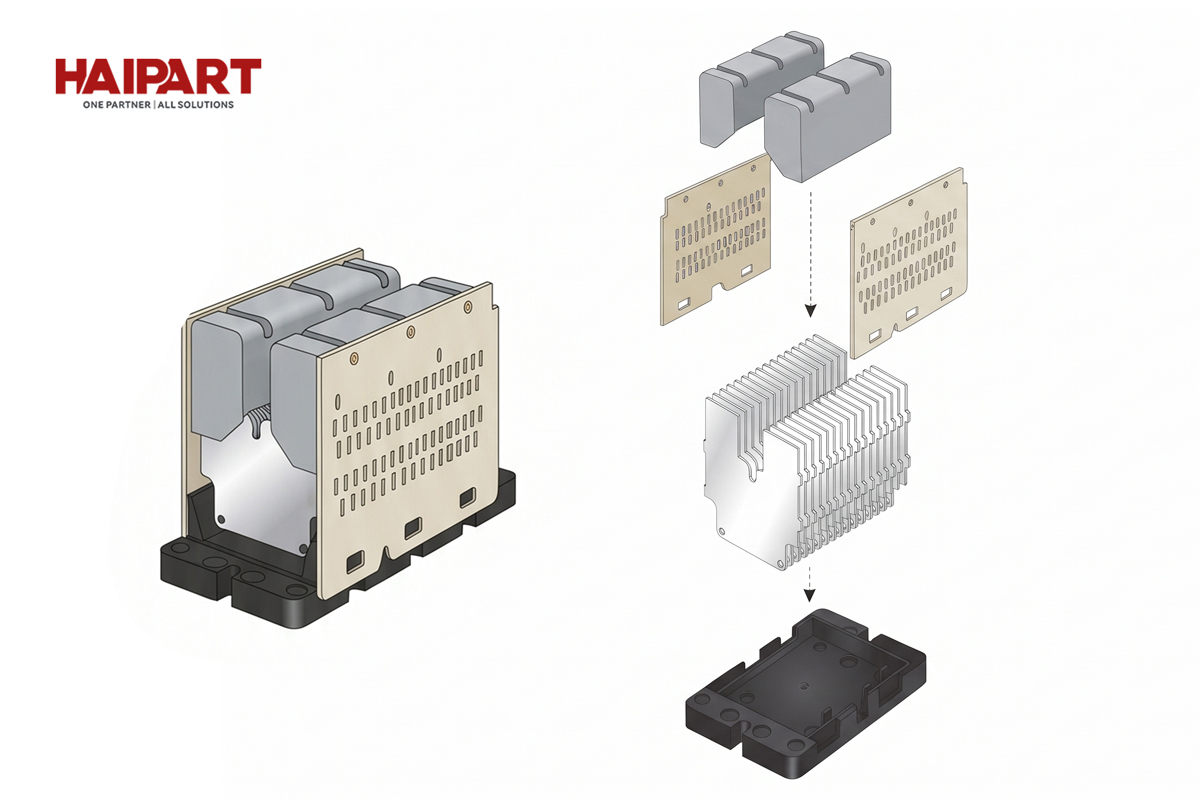

An ACB arc chamber works as a complete assembly, not as a collection of independent parts.

The Real Challenge: Precision

This is where an arc chamber becomes more than a group of stamped metal parts.

Consider the relationship between just four components:

Splitter Plate
↕
Plate Spacing
↕
Arc Runner
↕
Insulation Structure

Every component has to arrive at the correct position.

The plate needs the correct geometry.

The spacing needs to remain consistent.

The arc runner needs to align with the intended arc path.

The insulation needs to maintain the designed clearances.

And the housing needs to hold everything together.

A high-performance arc chamber starts with dimensional consistency.

From Precision Parts to a Complete Arc Chamber

For an ACB component manufacturer, the challenge is therefore not simply producing a metal plate.

It is maintaining consistency throughout the entire manufacturing process.

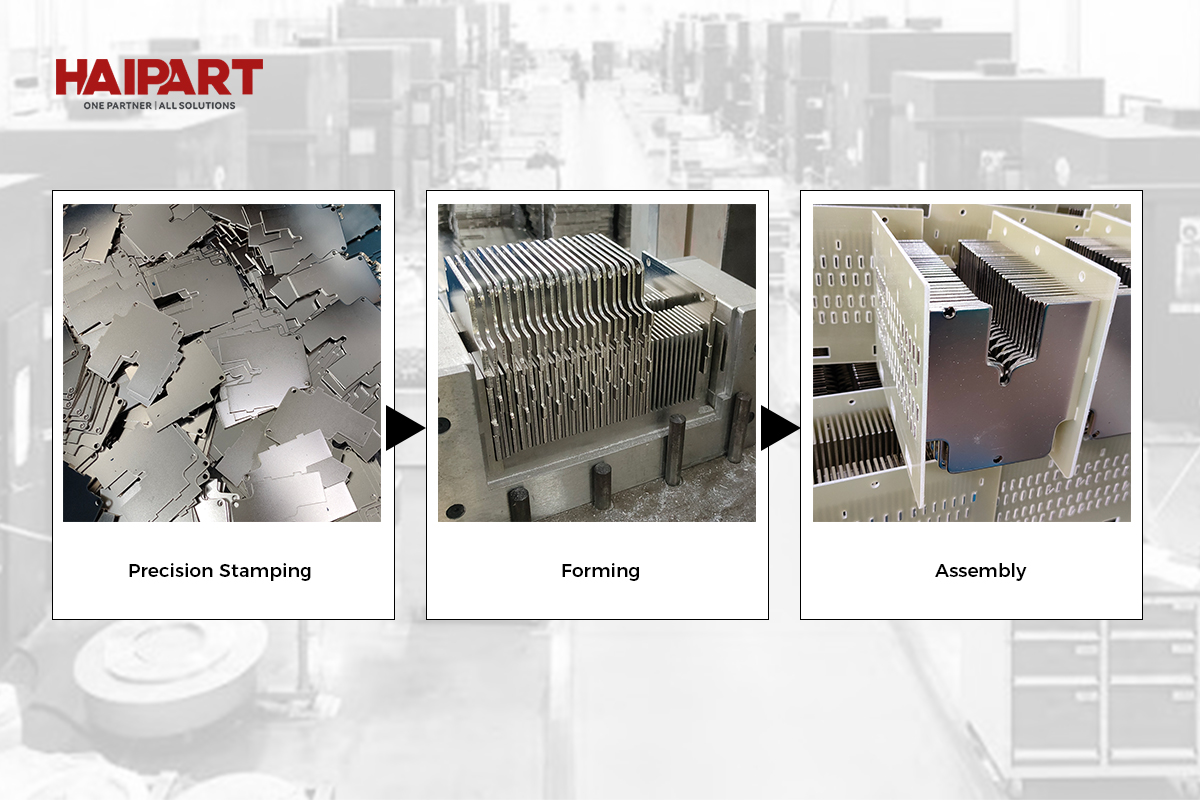

A typical process can include:

Material Preparation
→ Precision Stamping
→ Forming
→ Surface Treatment
→ Insulation Component Preparation
→ Inspection
→ Assembly

At the component level, manufacturers need to pay attention to:

• Material consistency

• Stamping accuracy

• Forming accuracy

• Burr control

• Surface condition

• Insulation dimensions

• Assembly alignment

Because in an arc chamber, small components have to work together as one system.

One Arc Chamber. Many Precision Components.

From the outside, an ACB arc chamber may look simple.

Inside, it is a carefully coordinated system:

The arc runner guides the arc.

The splitter plates control and dissipate its energy.

The insulation components maintain separation and structure.

The housing maintains the designed geometry.

Together, they turn a high-energy electrical arc into a controlled interruption process.

And that is what makes an ACB arc chamber more than just a stack of metal plates.

Precision Components for ACB Arc Chambers

At HAIPART, we focus on the components behind circuit protection.

Our manufacturing capabilities include precision metal stamping, formed metal components, insulation components and customized assembly solutions for low-voltage circuit breaker applications.

From individual components to complete assemblies, HAIPART helps circuit breaker manufacturers build the parts behind reliable protection.
