How clamping force, contact resistance and terminal frame design work together to support reliable electrical connections.
In a miniature circuit breaker (MCB), the terminal connection is a small component interface with an important engineering responsibility.
The terminal must secure the conductor mechanically while maintaining a reliable electrical connection. At first glance, the solution may seem simple: tighten the screw harder to create a stronger connection.
However, more clamping force does not automatically mean better terminal performance.
The engineering challenge is to achieve the appropriate clamping condition for the conductor, screw and terminal frame design. Too little clamping force may compromise contact stability, while excessive tightening may introduce unnecessary mechanical stress or damage.
Understanding this balance helps explain why terminal frame geometry, screw engagement and installation torque all matter in circuit breaker design.
Clamping force is the force applied by the terminal mechanism to hold the conductor in position.
In a typical screw-type MCB terminal, tightening the screw creates an axial force that acts through the terminal structure to press the conductor against the intended contact surfaces.
This mechanical action serves two related purposes:
Mechanical retention: Keeping the conductor securely positioned within the terminal.
Electrical contact: Establishing and maintaining suitable contact between conductive surfaces.
These functions are closely connected, but they are not identical. A conductor may appear mechanically secure without necessarily achieving the desired electrical contact conditions.
The terminal frame therefore needs to support the intended clamping action without excessive deformation or loss of stability.
The relationship between screw tightening and connection performance depends on the complete terminal assembly.
When the clamping condition is insufficient, the conductor may not establish the intended contact interface.
Depending on the terminal design and installation conditions, this can contribute to:
Reduced contact stability
Increased contact resistance
Greater sensitivity to conductor movement
Additional heat generation under electrical load
A connection that is insufficiently secured may also be more vulnerable to changes in its mechanical condition over time.
Increasing screw torque beyond the specified value is not a reliable way to improve terminal performance.
Excessive tightening can potentially damage threads, deform the terminal structure or affect the integrity of the connection. The actual risk depends on the screw, frame material, geometry and overall terminal construction.
The objective is therefore not to maximize tightening torque, but to achieve the specified installation condition.
Reliable clamping is about control, not maximum force.
Screw torque, clamping force, contact resistance and temperature rise are related, but they should not be treated as interchangeable quantities.
A simplified engineering relationship is:
Screw Torque → Clamping Condition → Electrical Contact → Contact Resistance → Heat Generation
Each stage matters.
Applied torque is used to tighten the screw and establish the clamping condition. However, torque does not translate into one universally fixed clamping force.
The relationship depends on factors such as thread geometry, friction, surface condition and the design of the assembled terminal.
This is why installation torque should follow the circuit breaker's specified requirements rather than a general assumption that tighter is always better.

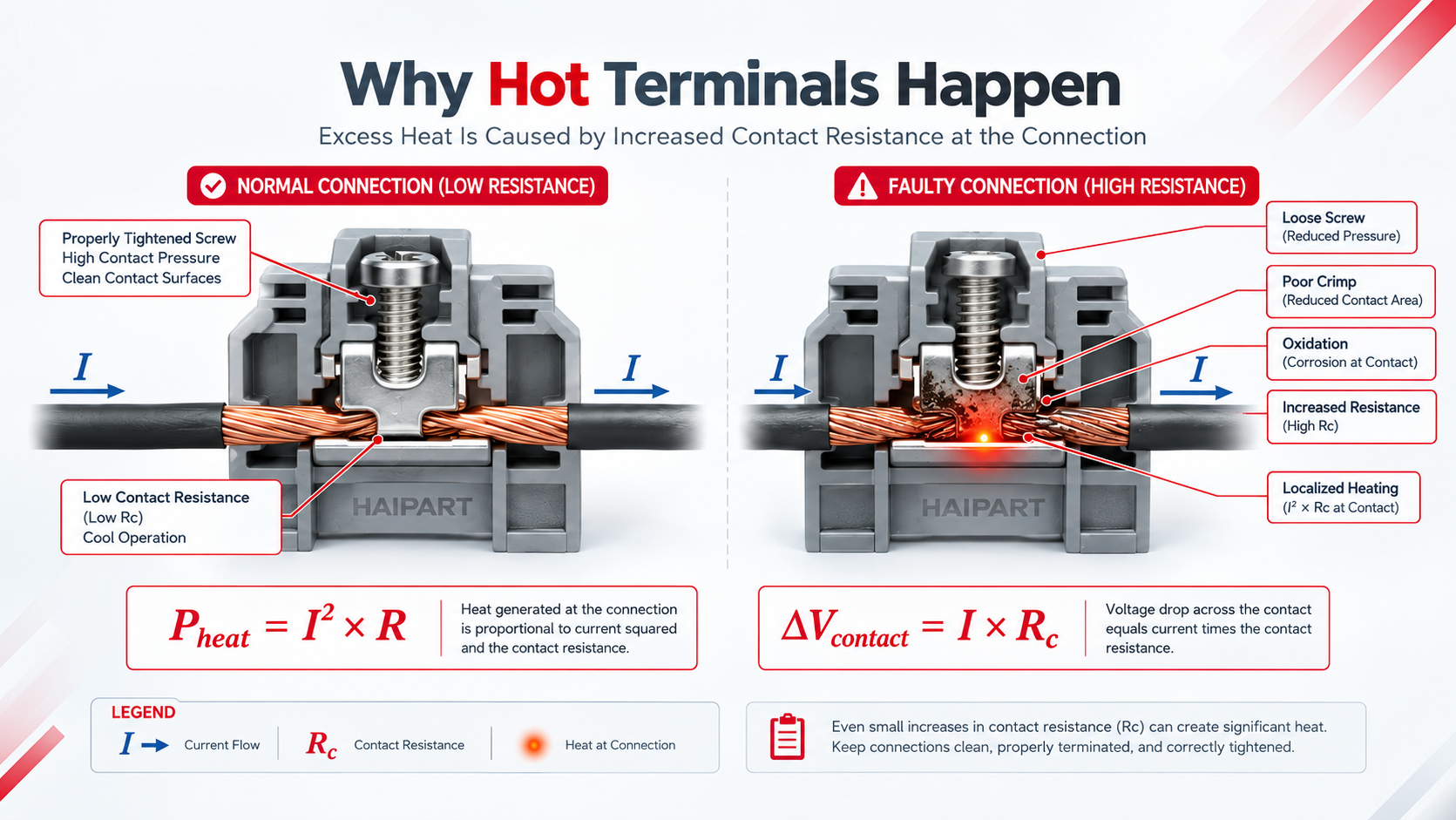

Electrical resistance at a connection affects the heat generated when current passes through it.
The basic relationship is:
P = I²R
Where:
P = electrical power dissipated as heat
I = current flowing through the connection
R = electrical resistance
For a given current, higher resistance produces greater resistive heating.
However, the equation alone does not establish how much clamping force is required. Contact resistance also depends on the materials, surface condition, contact geometry and actual connection state.
For this reason, terminal performance must be evaluated as a complete electrical and mechanical system.
The terminal frame is not simply a metal enclosure around a screw. Its geometry helps define how the conductor is positioned and how the clamping action is supported.
Several design considerations are relevant.
The frame must support the intended clamping load while maintaining its designed shape.
If the structure deforms excessively, the actual contact conditions may differ from those intended by the design. Frame geometry and material properties therefore need to be considered together.
The screw must engage correctly with the terminal structure and apply the intended clamping action.
Thread quality, alignment and dimensional consistency contribute to the assembly's ability to achieve a repeatable connection condition.
The conductor must sit within the intended clamping region.
If it is incorrectly positioned, the contact interface may differ from the design intent. Correct conductor insertion and preparation are therefore essential parts of terminal installation.
Even a well-designed terminal frame must be manufactured consistently.
Variation in critical dimensions or formed features can affect screw engagement, conductor positioning and assembly fit. Dimensional control helps components perform consistently within the intended terminal system.
These factors illustrate why clamping performance cannot be assessed by looking at screw torque alone.
Terminal frame design establishes the conditions under which a connection is intended to operate. Installation determines whether those conditions are achieved in practice.
Three principles are particularly important:
Use the specified tightening torque. Do not assume that applying additional torque will improve connection reliability.
Prepare and insert the conductor correctly. The conductor must be compatible with the terminal and positioned according to the manufacturer's instructions.
Use the terminal only within its specified application. Conductor material, cross-sectional area and other installation requirements must be suitable for the terminal design.
These principles are relevant to both circuit breaker manufacturers and end users. A precision component cannot compensate for every incorrect installation condition.
Clamping performance should not be judged by screw torque or apparent mechanical tightness alone.
A more complete evaluation considers the relationship between the terminal's mechanical structure and its electrical behavior.
Depending on the application and validation plan, relevant considerations may include:
Correct screw engagement and specified tightening torque
Conductor retention and positioning
Terminal frame deformation under the intended load
Electrical contact resistance, where measured
Temperature-rise performance under defined test conditions
Repeatability across components and assemblies
These factors help establish whether the terminal assembly performs as intended.
Importantly, the appropriate acceptance criteria depend on the product design and applicable requirements. A conceptual relationship between clamping force and resistance should not be used as a substitute for product-specific testing.
A reliable MCB terminal is the result of several factors working together.
The screw must establish the intended clamping condition. The terminal frame must support that condition. The conductor must be correctly positioned, and the assembled connection must satisfy its electrical, mechanical and thermal performance requirements.
Too little clamping may compromise contact stability. Excessive tightening may introduce unnecessary mechanical stress. Between these extremes, the objective is to achieve a controlled and repeatable connection that meets the requirements of the specific terminal design.
For circuit breaker component engineering, this is the central lesson:
The goal is not maximum clamping force. It is the right clamping condition, supported by the right structure and verified under the intended operating conditions.
At HAIPART, terminal frames are part of the precision internal components used in circuit protection equipment. Understanding the relationship between component geometry, assembly conditions and electrical performance is an important part of engineering-focused component development.
A small terminal frame can have a significant responsibility. Its performance depends not on one parameter alone, but on how design, manufacturing and installation work together.
No. Contact resistance depends on the contact materials, surface condition, geometry and actual connection state. The terminal must achieve the intended clamping condition; increasing force beyond the design requirements does not guarantee better performance.
Tightening torque is used to establish the terminal's clamping condition. Insufficient tightening may compromise the connection, while excessive tightening can potentially damage threads or deform components. Always follow the specified torque for the particular circuit breaker.
Terminal frame geometry supports the screw, helps position the conductor and carries the mechanical load created during tightening. Geometry and dimensional consistency contribute to achieving the intended connection conditions.
Clamping conditions can influence electrical contact and therefore contact resistance. Since resistive heating follows the relationship P = I²R, changes in resistance can affect heat generation at a given current. The actual temperature rise must be established through appropriate testing.
Relevant considerations include material properties, critical dimensions, thread engagement, formed geometry, conductor positioning and the performance of the assembled terminal under defined electrical, mechanical and thermal conditions.
