In modern power distribution systems, safety, stability, and reliability are critical requirements for industrial, commercial, and infrastructure applications. As one of the most important protection devices, the Molded Case Circuit Breaker (MCCB) plays a key role in protecting electrical systems from overloads and short circuits. However, the performance of an MCCB does not only depend on the final assembly. The quality and precision of its internal components directly influence breaking capacity, current stability, and long-term reliability.
High-quality MCCB Core Components are essential for building reliable circuit protection systems. From arc chambers and copper conductive parts to magnetic trip components and precision stamping parts, every internal element must meet strict manufacturing standards.
As a professional component manufacturer, HAIPART focuses on providing reliable MCCB Component solutions for global electrical brands. Through precision manufacturing capabilities, advanced production processes, and strict quality control, HAIPART helps customers develop high-performance Electrical Protection Components for modern power systems.
Understanding the Importance of MCCB Core Components
Key Internal Components of an MCCB
Precision Manufacturing Process for MCCB Components
Why Global Electrical Brands Choose HAIPART
An MCCB is widely used in low-voltage power distribution systems where reliable protection is required. Unlike simple switching devices, an MCCB needs to quickly detect abnormal current conditions and safely interrupt electrical faults.

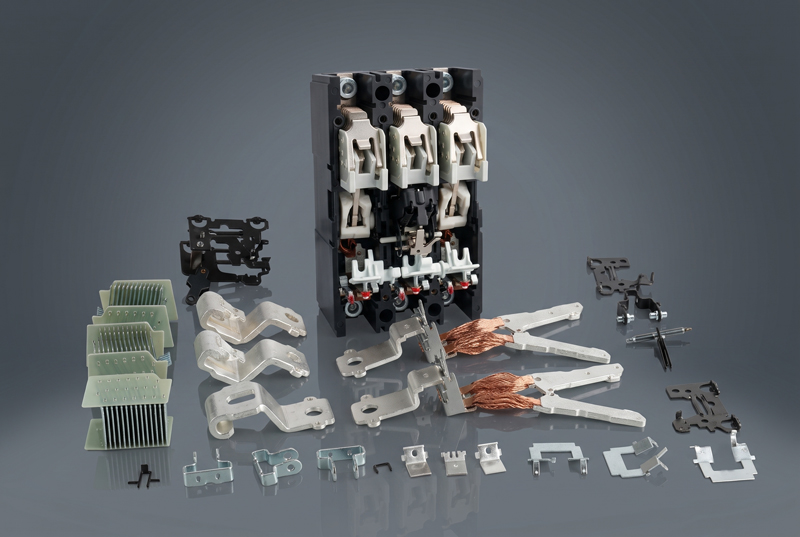

The internal structure of an MCCB contains multiple precision parts that work together during normal operation and fault protection. These MCCB Core Components determine important performance factors, including:
Electrical conductivity
Mechanical durability
Arc extinction capability
Protection response speed
Product service life
Among all Circuit Breaker Components, the arc chamber, contact system, conductive parts, and trip mechanism are especially important. Any variation in material quality or manufacturing accuracy may affect the overall performance of the circuit breaker.
Therefore, global electrical manufacturers require reliable suppliers who can provide consistent and high-quality MCCB Parts with stable production capability.
HAIPART specializes in manufacturing various critical MCCB Components designed for reliable electrical protection applications. Each component is produced with attention to material selection, dimensional accuracy, and production consistency.

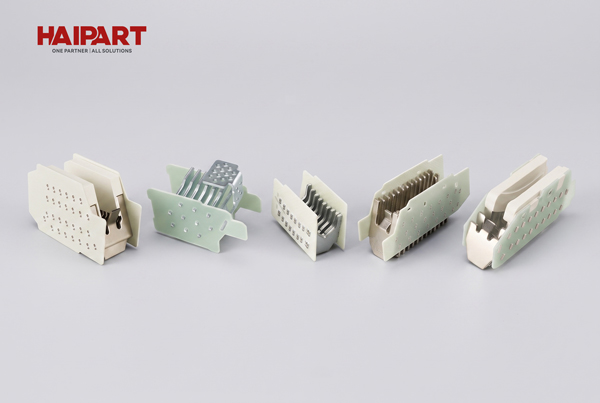

The arc chamber is one of the most important components inside an MCCB. During a short circuit event, it helps control and extinguish the electrical arc generated between contacts.
HAIPART arc chamber components are manufactured with precision metal parts and insulation structures to support high-performance arc extinction requirements.
Key advantages include:
Stable arc control performance
Accurate component dimensions
Reliable insulation structure
Suitable for high breaking capacity applications

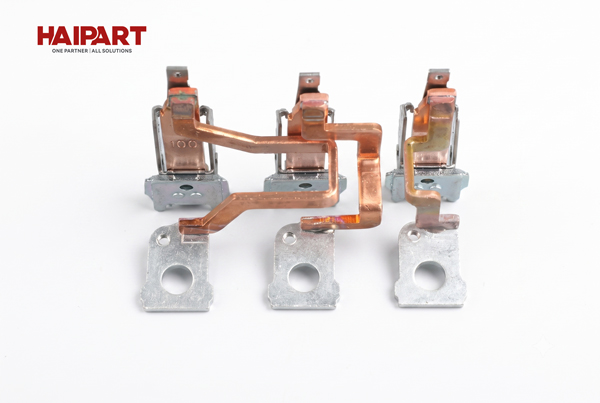

Copper conductive parts play an essential role in current transmission inside an MCCB. High-quality copper components help reduce electrical resistance and improve energy efficiency.
HAIPART provides precision copper components with:
Excellent electrical conductivity
Consistent material performance
Reliable connection structures
Stable long-term operation

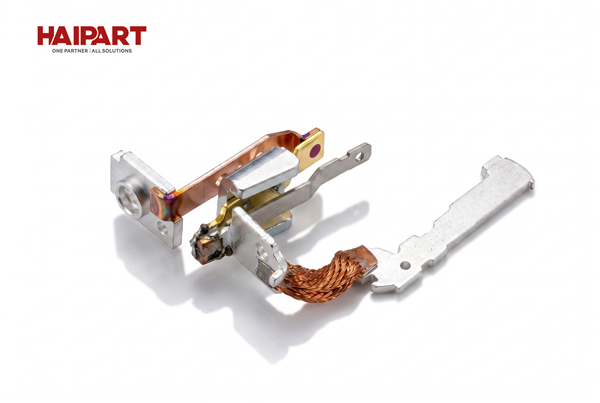

The magnetic trip system is responsible for rapid protection during short circuit conditions. The accuracy and reliability of magnetic components directly influence MCCB response performance.
HAIPART manufactures magnetic trip coil components with controlled production processes to ensure:
Stable electromagnetic performance
Precise assembly dimensions
Reliable protection response

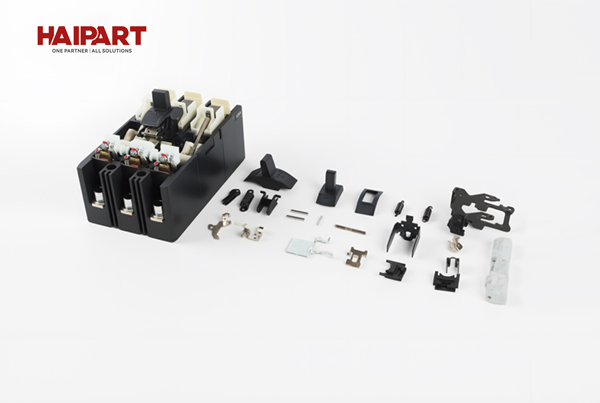

Precision stamping technology is widely applied in MCCB internal structures. High-accuracy stamped parts provide strong mechanical support and ensure smooth operation of internal mechanisms.
HAIPART's precision stamping capabilities include:
Advanced tooling development
High dimensional accuracy
Consistent mass production quality
Efficient manufacturing solutions
Producing reliable MCCB Parts requires more than basic machining capability. It requires integrated manufacturing expertise, including tooling development, material control, precision processing, and quality inspection.
HAIPART applies a complete manufacturing process for MCCB Core Components, including:
Professional tooling design helps improve component accuracy and production efficiency. HAIPART develops customized manufacturing solutions according to customer requirements.
Advanced stamping technology ensures stable production of metal components with accurate dimensions and consistent quality.
Every batch of Circuit Breaker Components undergoes strict quality control procedures to verify mechanical performance, dimensional accuracy, and reliability.
Through continuous improvement of manufacturing processes, HAIPART supports global customers with dependable and scalable component solutions.
The electrical protection industry requires suppliers who understand both component manufacturing and application requirements. Global brands need partners who can provide not only individual parts but also complete manufacturing support.
HAIPART delivers value through:
Professional MCCB Component manufacturing experience
Advanced precision stamping capability
Customized engineering support
Stable production capacity
Strict quality management systems
As a trusted MCCB Internal Components Supplier, HAIPART works with electrical industry partners to improve product reliability and manufacturing efficiency.
From prototype development to mass production, HAIPART provides comprehensive solutions for customers seeking high-quality Electrical Protection Components.
With the continuous development of smart grids, renewable energy systems, and industrial automation, the demand for reliable electrical protection equipment continues to grow. High-performance MCCB products require high-quality internal components manufactured with precision and consistency.
HAIPART is committed to becoming a reliable technology partner for global electrical brands by delivering advanced MCCB Core Components, precision manufacturing solutions, and dependable supply chain support.
Through innovation, quality control, and manufacturing expertise, HAIPART helps customers build safer, more efficient, and more reliable power protection systems worldwide.
Q1: What are MCCB components?
Answer:
MCCB components are the internal parts used in molded case circuit breakers to ensure reliable electrical protection. These components include arc chambers, copper conductive parts, contact systems, magnetic trip units, and precision stamping parts. High-quality MCCB components directly influence circuit breaker performance, safety, and service life.
Q2: What are the main internal components of an MCCB?
Answer:
The main internal components of an MCCB include the arc chamber, contact assembly, copper terminals, magnetic trip coil, operating mechanism, and precision metal parts. Each component plays an important role in current transmission, fault protection, and arc extinction during circuit interruption.
Q3: Why are high-quality MCCB components important?
Answer:
High-quality MCCB components improve the reliability and protection performance of circuit breakers. Accurate manufacturing, stable materials, and strict quality control help ensure better conductivity, faster fault response, higher breaking capacity, and longer operating life in electrical protection systems.
Q4: What MCCB components does HAIPART manufacture?
Answer:
HAIPART manufactures various MCCB core components, including arc chamber components, copper conductive parts, magnetic trip coil components, and precision stamping parts. With advanced manufacturing capabilities, HAIPART provides customized component solutions for global electrical brands and circuit breaker manufacturers.
Q5: How does an arc chamber work in an MCCB?
Answer:
An arc chamber helps extinguish the electrical arc generated when an MCCB interrupts a fault current. By controlling and cooling the arc through internal metal plates and insulation structures, the arc chamber improves breaking performance and supports safer circuit protection.
Q6: What materials are commonly used for MCCB components?
Answer:
Common materials used for MCCB components include copper, steel, insulating materials, and engineered metal alloys. Copper is widely used for conductive parts because of its excellent electrical conductivity, while precision metal components require high dimensional accuracy and mechanical strength.
Q7: Can HAIPART provide customized MCCB components?
Answer:
Yes. HAIPART provides customized MCCB component solutions based on customer specifications, drawings, and application requirements. From tooling development and precision stamping to assembly and quality inspection, HAIPART supports customers from product development to mass production.
Q8: What manufacturing processes are used for MCCB components?
Answer:
The manufacturing process of MCCB components typically includes engineering design, tooling development, precision stamping, metal processing, surface treatment, assembly, and quality inspection. HAIPART integrates these capabilities to deliver consistent and reliable circuit breaker components.
Q9: How does HAIPART ensure MCCB component quality?
Answer:
HAIPART ensures MCCB component quality through strict production control, dimensional inspection, material verification, process monitoring, and final quality checks. These manufacturing standards help maintain consistent performance for electrical protection applications.
Q10: Who needs MCCB component suppliers?
Answer:
MCCB component suppliers support circuit breaker manufacturers, electrical equipment companies, and industrial power solution providers. Reliable suppliers help global brands improve production efficiency, maintain product consistency, and develop advanced electrical protection systems.
