Precision Stamping Workshop: Engineering the Foundation Quality of Low-Voltage Electrical Components

When it comes to the safety and reliability of low-voltage electrical systems, there is absolutely no room for error. Inside every miniature circuit breaker (MCB) or molded case circuit breaker (MCCB), a network of intricate metal parts dictates the performance of the entire unit.

At our advanced stamping workshop, we adhere to a single core philosophy: Precision Molding, Foundation Quality. In this technical deep dive, we explore how modern metal stamping technology, progressive die engineering, and precision molding processes establish the ultimate hardware foundation for international power distribution systems.

1. The Power of High-Performance Progressive Presses

The journey of premium electrical hardware begins with robust machinery. Our production floor utilizes high-performance progressive presses and closed double-point presses. These systems are engineered to transform raw copper and brass coils into ultra-precise components through continuous, synchronized operations.

Unlike traditional single-stage stamping, our progressive die systems execute multiple cutting, bending, and shaping operations in a single stroke. This approach ensures:

• Fully Automated Production Cycles: Seamless progression from automatic material feeding to finished product discharge.

• Unmatched Efficiency: High-speed throughput capable of supporting massive bulk orders for global assembly lines.

• Material Optimization: Minimizing scrap and waste, which translates to direct cost savings for our partners.

2. Achieving Micron-Level Tolerances in Tooling Design

In high-voltage and low-voltage electrical engineering, a variance of a few micrometers can cause catastrophic arcing or mechanical failure. To eliminate these risks, our in-house tooling design center utilizes multi-station progressive tooling that maintains strict micron-level tolerances.

Our tooling design capabilities allow us to control the stamping geometry down to the absolute limit. Every curve, slot, and punch is precisely calibrated. By controlling the tool wear and thermal expansion during high-speed runs, our stamping workshop guarantees that the first part off the line is identical to the millionth.

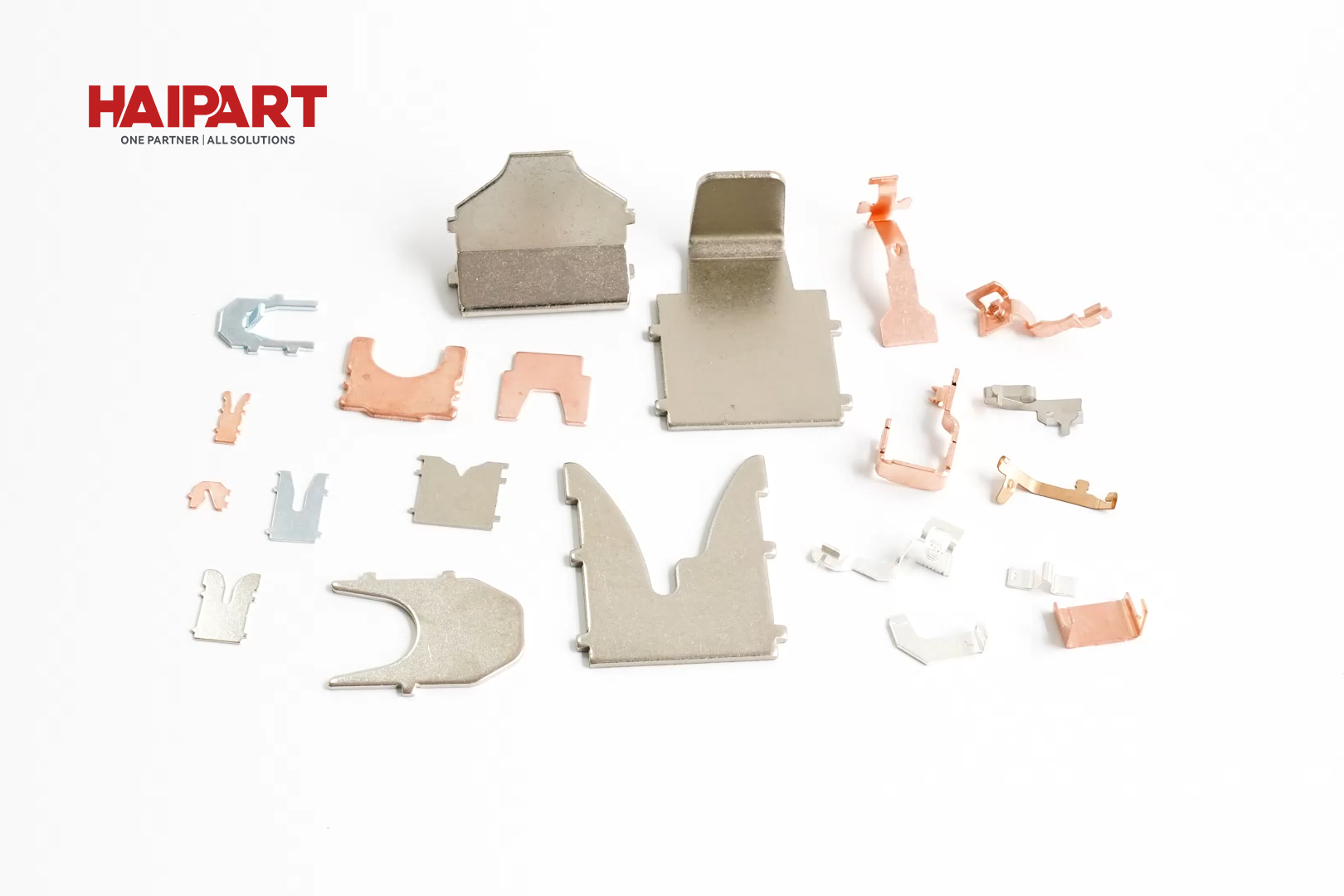

3. Core Component Manufacturing: Breaker Contacts, Brackets, and Arc Plates

Our expertise in precision molding and metal stamping spans a wide range of specialized alloys, particularly high-conductivity copper and heavy-duty brass. We specialize in producing critical hardware that directly impacts electrical safety:

• Breaker Contacts: Engineered for optimal conductivity and wear resistance to survive thousands of switching cycles.

• Specialized Brackets: Delivering the rigid internal support needed to secure delicate internal mechanisms.

• Arc Plates (Arc Chutes): Stamped with exact geometric precision to ensure rapid arc quenching and prevent electrical fires.

By providing these foundational elements with flawless quality, we help global OEMs and procurement managers build safer, more reliable electrical equipment.

4. Why Partner with an Automated Stamping Workshop?

Sourcing low-voltage electrical parts requires a manufacturer that combines technical capacity with rigid quality control. Our integrated manufacturing setup—combining progressive die technology, expert tooling design, and automated metal stamping—mitigates supply chain risks by ensuring consistent part quality, stable lead times, and competitive scaling costs.

Key Takeaways for B2B Sourcing Managers

Conclusion: Building Tomorrow’s Electrical Safety

Exceptional electrical devices are built from the bottom up. By focusing on precision molding and investing in high-performance progressive presses, we continue to deliver the robust hardware foundation your products deserve.

Ready to elevate your component sourcing? Contact our technical team today to request a quote or discuss your custom tooling design requirements!
