In the realm of low-voltage electrical distribution, the integrity of a system is only as strong as its weakest connection point. Inside modern circuit protection devices like miniature circuit breakers (MCBs) and molded case circuit breakers (MCCBs), the quality of the terminal connection directly determines operational safety. A substandard connection introduces contact resistance, leading to localized overheating, thermal degradation, and catastrophic equipment failure. To eliminate these vulnerabilities, industrial electrical equipment relies heavily on advanced component designs. The high-performance molded terminal block, engineered precisely for heavy-duty industrial environments, represents the gold standard in secure cable termination technology.
Unlike traditional screw terminal designs that apply direct, localized pressure onto a copper conductor—often crushing or damaging the wire strands—a premium box clamp terminal utilizes a sophisticated cage-like frame. When the integrated hex socket screw is tightened, it draws the bottom of the metallic box clamp upward, wrapping completely around the stripped conductor. This design evenly distributes mechanical force across a maximum surface area, significantly reducing contact resistance and mitigating heat dissipation.
Furthermore, the internal walls of the molded terminal block frame are engineered with precise, horizontal anti-slip grooves. These micro-structures act as high-friction locking mechanisms. As the conductor expands and contracts under thermal cycles or experiences external mechanical vibrations, the internal grooves permanently trap the wire strands. This eliminates wire slippage and prevents the fatal risk of terminal loosening over decades of continuous field operations.
Industrial environments expose vital circuit breaker terminal units to high humidity, corrosive atmospheres, and fluctuating ambient temperatures. To guarantee long-term stability, material selection must be uncompromising. The main frame of the box clamp terminal is constructed from high-strength, high-conductivity copper or hardened steel alloys capable of enduring immense mechanical stress without physical distortion.
To protect the raw metals from oxidation, a dual-layer electroplating process is implemented. The primary box framework undergoes a uniform chrome or nickel plating treatment, resulting in a mirror-like, ultra-smooth surface that isolates the underlying metal from moisture and chemical agents. Concurrently, the high-torque hex socket screws are treated with a specialized color-zinc (yellow-zinc) passivation coating. This coating provides excellent resistance to atmospheric corrosion and prevents thread galling or binding during high-torque assembly sequences.

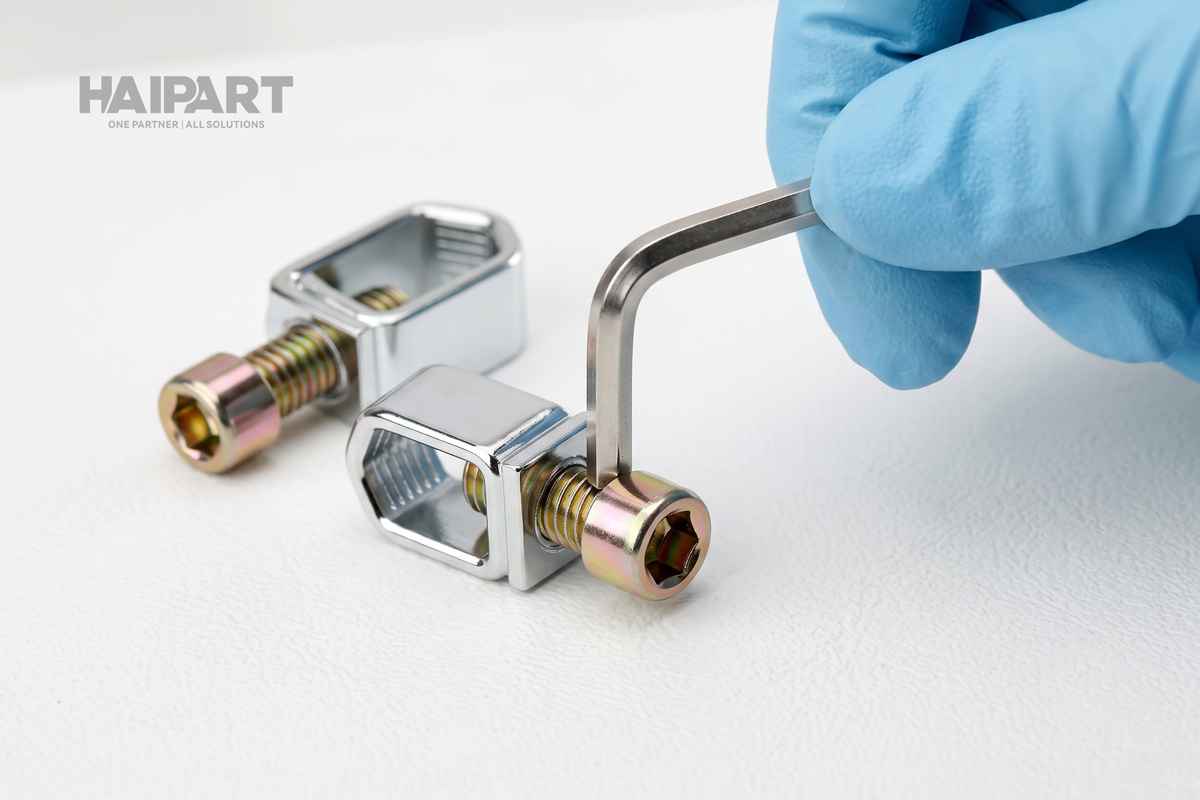

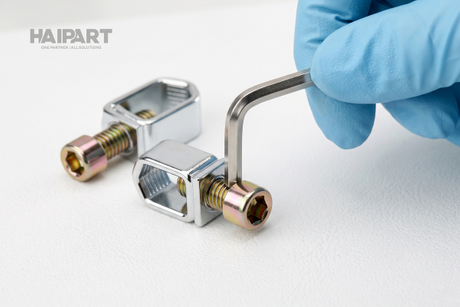

Efficiency on the manufacturing floor requires components optimized for automated assembly. The inclusion of internal hex socket screws on these molded terminal blocks represents a crucial operational advantage over standard slotted or Phillips head fasteners. Hex socket designs allow assembly tools to seat deeply and securely inside the screw head, providing a much higher surface-contact area.
This structural layout enables automated electric screwdrivers or manual torque wrenches to apply high tightening torque without the risk of cam-out or head stripping. As a result, industrial manufacturers can maintain rapid production cadences while guaranteeing that every single circuit breaker terminal conforms perfectly to strict international torque regulations.
Investing in high-quality circuit breaker components is fundamental to safeguarding industrial infrastructure. By integrating robust metallurgy, dual-layer corrosion resistance, and high-torque hex socket screw mechanisms, our advanced molded terminal blocks ensure uncompromised electrical contact. These compact box clamp terminals deliver the reliable, long-term durability required to power tomorrow's safest electrical grids.
