Inside a miniature circuit breaker (MCB), some of the most important engineering details are found in components that are easy to overlook.
The terminal frame, also known as a cage terminal frame or terminal cage, is one of them.
At first glance, its function seems straightforward: a conductor enters the frame, a screw is tightened, and the conductor is secured.
But this simple action involves several engineering factors:
Clamping force → Contact pressure → Contact resistance → Heat generation → Connection reliability
Understanding this relationship helps explain why the design and manufacturing precision of an MCB terminal frame matter.
The first job of a terminal frame is mechanical.
When the conductor is inserted into the terminal and the screw is tightened, the screw generates a clamping force that holds the conductor in position.
But the goal is not simply to make the conductor stay in place.
The force needs to create a stable electrical interface between the conductor and the conductive terminal structure.
A simplified way to understand the process is:
Screw Torque
↓
Clamping Force
↓
Contact Pressure
↓
Stable Electrical Connection
This is why terminal-frame geometry matters.
The frame must provide sufficient mechanical support while allowing the screw to apply force in the intended direction.
A poorly controlled structure can affect conductor positioning, force distribution and ultimately connection stability.
So a terminal frame is not merely a holder for the wire.
It is part of the force-transfer system of the electrical connection.
A mechanical connection also becomes an electrical connection.
But two metal surfaces that appear to be touching do not necessarily create a perfect electrical path.
At the microscopic level, current passes through actual areas of contact between the surfaces. The quality and stability of these contact points influence contact resistance.
This becomes particularly important when current flows continuously.
The basic relationship is:
Where:
P is power converted into heat
I is current
R is electrical resistance
This means that electrical resistance at a connection can contribute directly to heat generation.
That is why maintaining a stable, low-resistance connection is an important consideration in circuit breaker terminal design.
The engineering chain becomes:
Stable clamping
→ Stable contact
→ Controlled contact resistance
→ Reduced unnecessary heat generation
The terminal frame therefore sits at an important intersection between mechanical engineering and electrical performance.
The characteristic cage-like shape of a terminal frame is designed around the way the conductor and screw interact.
Several geometric features work together:
The opening needs to provide sufficient space for conductor insertion while helping maintain its position during tightening.
The surrounding structure provides mechanical support as the screw applies force.
The screw must engage correctly with the threaded portion of the terminal structure so that tightening force can be transferred consistently.
The frame needs to fit within the available space inside the circuit breaker while maintaining compatibility with the corresponding assembly.
These requirements create a basic engineering trade-off:
The component must be small enough to fit inside the breaker, yet robust enough to perform its mechanical and electrical function reliably.
That is one reason a seemingly simple metal component deserves careful engineering.
For a mass-produced MCB, one terminal frame is not enough.
Thousands or millions of components may need to perform consistently within the same assembly.
This makes dimensional consistency especially important.
Consider a few examples:
Manufacturing factor | Potential impact |
|---|---|
Frame dimensions | Assembly fit |
Thread position | Screw engagement |
Forming accuracy | Conductor positioning |
Material thickness | Structural stability |
Surface condition | Contact and corrosion behavior |
Overall consistency | Production reliability |
These factors are interconnected.
A terminal frame that is dimensionally correct but poorly formed may not provide the intended assembly fit.
A correctly formed frame with inconsistent threading can affect screw engagement.
In other words:
Precision is not simply about making one perfect component. It is about making every component behave consistently.
This is where manufacturing becomes part of product performance.
A terminal frame may originate from a relatively simple piece of metal, but the finished component has to meet several functional requirements simultaneously.
Depending on the specific design, manufacturing can involve processes such as:
Material Preparation
↓
Precision Stamping
↓
Forming / Bending
↓
Thread Processing
↓
Surface Treatment
↓
Dimensional Inspection
The exact process sequence depends on the component design and customer requirements.
For a terminal-frame manufacturer, however, the key challenge remains the same:
This is particularly important for MCB and MCCB applications, where small components must fit precisely into compact electrical assemblies.

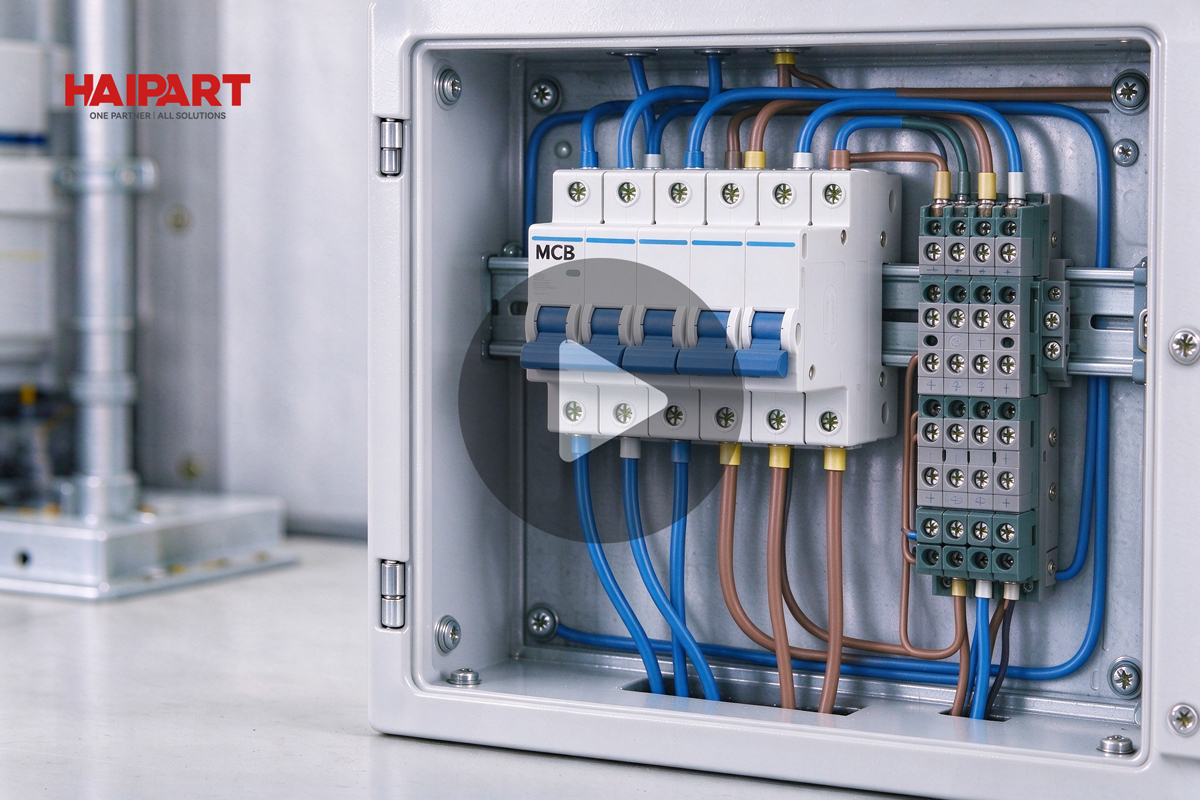

The video demonstrates a simple process:
Insert the conductor.
Tighten the screw.
Secure the connection.
But the final application is much larger.
The terminal connects the external conductor to the internal electrical system of the circuit breaker.
That means the quality of this small interface becomes part of the overall electrical path.
A reliable circuit is therefore not created by one component alone.
It is built through a chain:
Conductor
→ Terminal Connection
→ Internal Conductive Components
→ Protection Mechanism
→ Load
Every interface along this path needs to perform its intended function.
This is why component-level engineering matters even when the component itself occupies only a small part of the final product.
A terminal frame may look simple because its operating principle is simple.
But simplicity at the user level often hides complexity at the engineering level.
The design has to balance:
Mechanical strength
Clamping behavior
Dimensional accuracy
Assembly compatibility
Electrical connection stability
Manufacturing consistency
And these requirements must work together inside a very limited space.
At HAIPART, we approach terminal frames as precision circuit breaker components, where manufacturing consistency is just as important as the shape of the finished part.
Because reliable electrical equipment is not built only from large, visible components.
Sometimes, reliability begins with a small metal frame—and the precision behind it.
A circuit breaker is designed to protect an electrical circuit.
But before protection can take place, current must first travel through a reliable electrical path.
That makes the terminal connection an important starting point.
Good connection → Stable current path → Reliable electrical performance
The terminal frame is only one component in this chain.
But it is a component where mechanical force, electrical contact and manufacturing precision meet.
And that is precisely why its design deserves attention.
A terminal frame is a metal component used within a circuit breaker's terminal assembly to help secure the conductor and support the screw-clamping connection.
A cage terminal uses a cage-like metal structure to accommodate and clamp an electrical conductor when the terminal screw is tightened. It is commonly used in electrical connection systems.
Clamping force helps maintain stable contact between the conductor and the conductive terminal structure. Consistent clamping contributes to connection stability and helps control contact resistance.
Electrical resistance at a connection can contribute to heat generation when current flows through it. Maintaining a stable electrical connection is therefore an important part of terminal design.
Key considerations include material characteristics, dimensional accuracy, forming quality, thread accuracy, surface condition and consistency during mass production.
