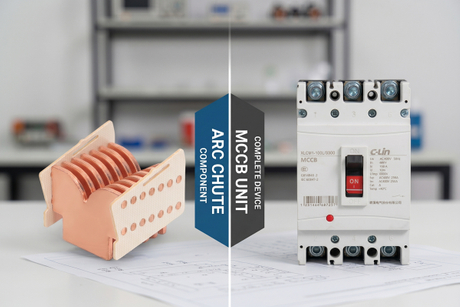

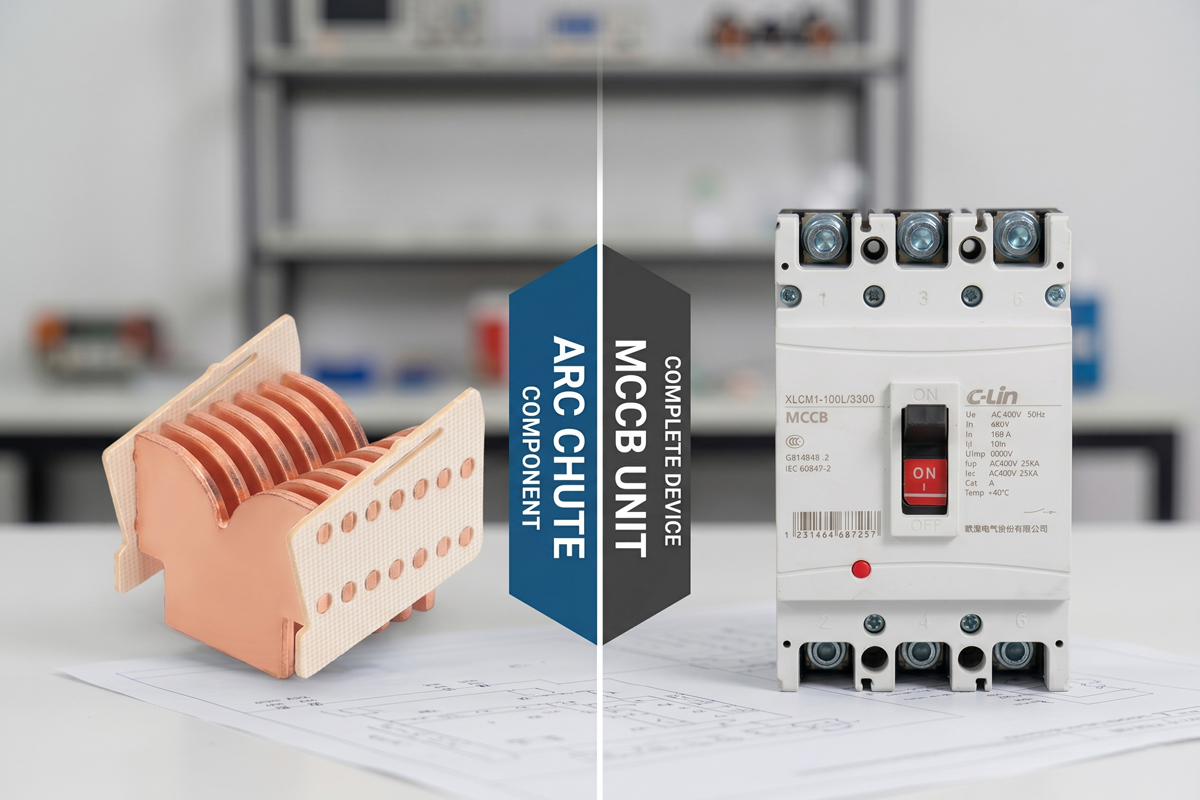

In the realm of low-voltage electrical protection, the Moulded Case Circuit Breaker (MCCB) stands as a critical guardian of industrial and commercial power systems. At the core of every high-breaking-capacity MCCB lies the Arc Chamber, a component designed to suppress and extinguish the high-temperature electric arc generated during a short-circuit fault. HAIPART, a premier MCCB Arc Chamber manufacturer, has perfected a manufacturing process that blends precision metallurgy, advanced composite science, and robotics. This article provides a comprehensive deep dive into the four stages of producing a high-performance Arc Chute, ensuring your switchgear achieves world-class Short-circuit protection.
Introduction: The pivotal role of the Arc Extinguishing unit in modern power distribution.
Phase 1: Splitter Plate Fabrication: Precision stamping and the importance of 3μm Copper Plating.
Phase 2: Insulation Systems: Engineering Dielectric Strength using FR-4 Epoxy Boards and DMC Housing.
Phase 3: Automated Core Assembly: Achieving Micron-level Precision in the 7+2 architecture.
Phase 4: Quality Assurance: Utilizing AOI and XRF for performance validation.
Conclusion: Why HAIPART is the strategic OEM/ODM supplier for global MCCB manufacturers.
The efficiency of an MCCB Arc Chamber is primarily determined by the quality of its Splitter Plates. These metal plates act as a heat sink, cooling the arc by dividing it into smaller segments.

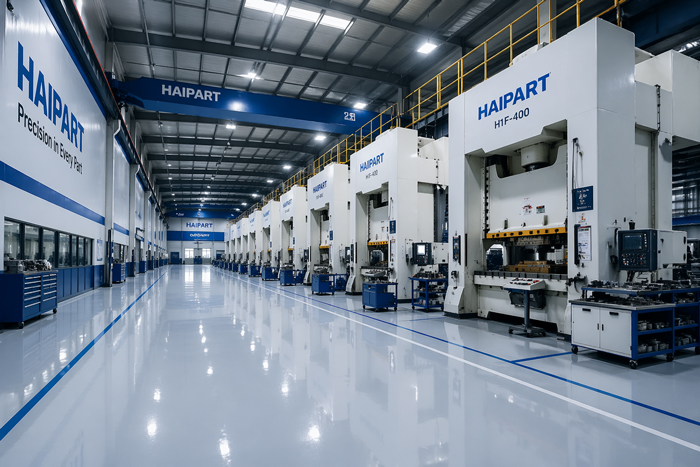

Precision Stamping: At the HAIPART factory, we utilize high-speed hydraulic presses to process DC01 cold-rolled steel. The tooling is maintained to ensure that the V-shaped profiles possess sharp edges. This physical geometry is essential for "slicing" the electric arc rapidly, preventing the arc from lingering on the contacts.

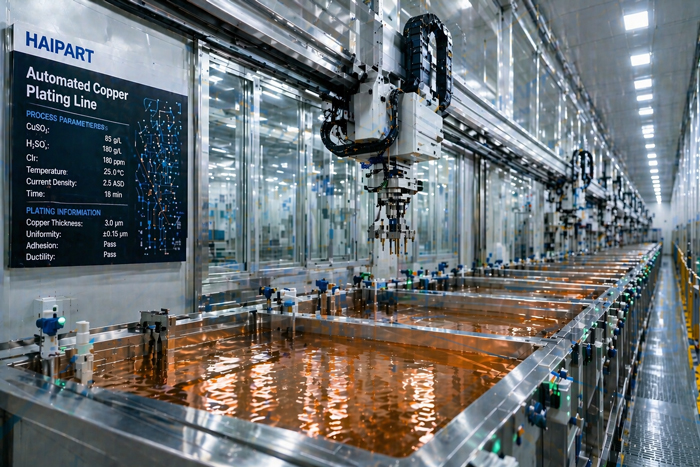

3μm Copper Plating: To enhance Thermal Conductivity and prevent oxidation, each plate undergoes a specialized electroplating process. We maintain a strict 3-micron copper layer. This thickness is the "golden ratio" for Arc Quenching; it provides enough mass for heat dissipation without compromising the structural dimensions required for high-speed assembly.
The housing of the Arc Chute must provide immense Dielectric Strength while remaining structurally stable under the extreme pressure of expanding ionized gases.
Epoxy Glass Cloth Boards: We use FR-4 / White Epoxy Boards for the side supports. These materials are chosen for their high mechanical rigidity and resistance to carbonization. During a fault, the material must not create a conductive path, ensuring the Circuit Breaker remains safe for reuse.
DMC/BMC Molding: For units requiring full encapsulation, Dough Molding Compound (DMC) is employed. As a Thermoset Material, DMC does not melt under high temperatures. It meets the UL94-V0 flammability standard, providing the fire-safety benchmarks necessary for Low-voltage Switchgear.
Consistency is the hallmark of a world-class Arc Chamber manufacturer. HAIPART utilizes Automated Production Lines to eliminate human error and ensure that every unit meets the exact same technical specifications.
Automated Plate Alignment: Robotic arms insert the plates into the Epoxy Glass supports with micron-level accuracy. The spacing between plates must be perfectly uniform. Even a 0.1mm deviation can lead to uneven Arc Segmentation, causing a failure in the Breaking Capacity of the finished MCCB.
Structural Anchoring: Because a short-circuit creates violent Kinetic Energy, the internal plates are mechanically locked into the frame. This robust design ensures the Arc Extinguisher remains intact, protecting the internal mechanism of the Moulded Case Circuit Breaker.

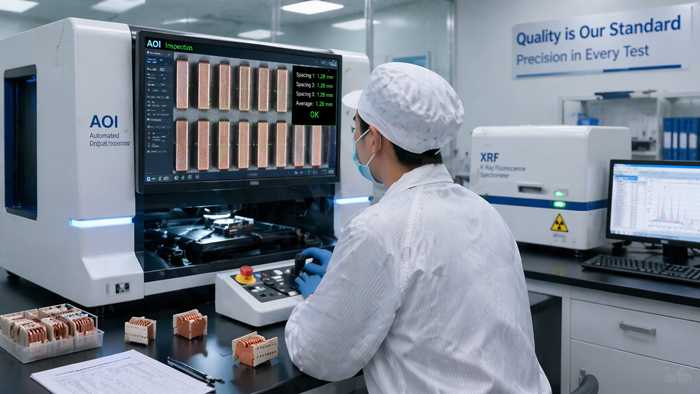

To remain a trusted OEM/ODM supplier, HAIPART implements a rigorous multi-stage inspection protocol.
AOI (Automated Optical Inspection): Every assembly is scanned to verify plate count and gap consistency.
XRF (X-ray Fluorescence): This non-destructive test ensures the Plating Thickness consistently meets the 3μm requirement.
Thermal & Dielectric Testing: We simulate high-stress environments to confirm that the Insulation Materials meet global Power Distribution safety standards.

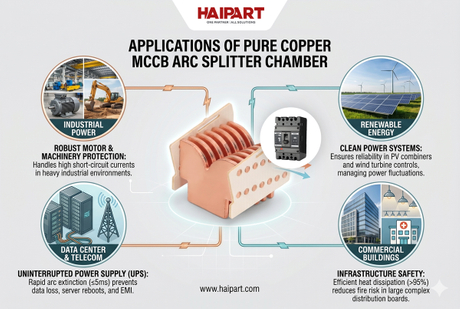

For the MCCB manufacturer, the reliability of the Arc Chamber is the reliability of the brand. HAIPART provides the precision and consistency needed for high-demand sectors like Data Centers, Renewable Energy, and Heavy Industrial Plants. By integrating Contamination Control and Precision Engineering, we help our partners achieve an Arc Extinction Time of ≤10ms, setting a new standard for Electrical Safety.
