Every R&D engineer and quality control manager in the power distribution industry has lived through this exact nightmare: You source a new batch of critical magnetic components. The golden sample passed the initial desktop review, and the supplier's technical documentation looks completely flawless on paper, boasting perfect baseline electrical specifications. Yet, the moment the prototype undergoes continuous full-load testing on the bench, the entire system fails the thermal test miserably.
The premium circuit breaker mechanism or switchgear assembly begins to overheat rapidly. Within minutes, the magnetic coil turns into an unintended micro-oven, the insulation varnish degrades under intense thermal stress, and the circuit breaker trips for all the wrong reasons. When a high-capacity circuit breaker fails under stress, engineering teams traditionally audit the contact resistance or mechanical link tolerances first. However, the true culprit is rarely found in the macro-mechanics; it is almost always the silent killer hiding deep inside the magnetic actuator system: the circuit breaker inductor coil.
In modern power distribution infrastructure—spanning miniature circuit breakers (MCBs), molded case circuit breakers (MCCBs), and heavy-duty industrial switchgear—this specific inductor coil acts as the critical heart responsible for executing ultra-precise tripping and switching commands. If these specialized magnetic components degrade prematurely under operational stress, the safety, compliance, and overall energy security of the entire facility are severely compromised.
Why do standard manufacturer datasheets routinely fail to predict these catastrophic field failures? The bitter truth is that standard technical specifications only measure macroscopic metrics, such as total DC resistance and nominal inductance. They completely fail to capture or reveal microscopic unevenness buried deep within the internal layer-by-layer coil winding structure.

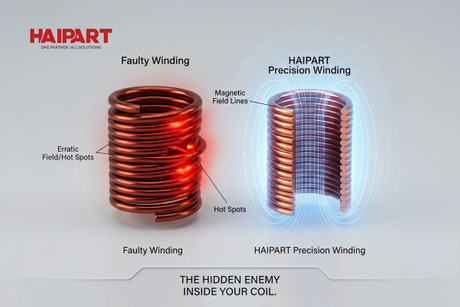

When an inductor coil is manufactured using legacy manual winding or uncalibrated semi-automated winding lines, minor fluctuations in copper wire tension are mathematically inevitable. This hidden manufacturing defect triggers a lethal chain reaction of electrical component failure:
Erratic Magnetic Fields: Irregular spacing between individual turns of the copper wire warps the localized magnetic field lines, causing fluctuating magnetic fields and significantly reducing electromagnetic force efficiency.
Internal Hot Spots: In micro-zones where the wire is wound too tightly or unevenly overlapped, thermal dissipation properties collapse. These confined zones trap heat, forming high-temperature hot spots directly within the core structure.
Accelerated Thermal Degradation: Under continuous duty cycles or transient high-voltage surges, these localized hot spots subject the high-grade enameled copper wire to extreme baking from the inside out. This continuous thermal degradation cracks the insulation coating, causing catastrophic inter-turn short circuits and irreversible component failure.
In an industrial landscape driven by the exponential power demands of AI data centers and green smart grid integration, modern power distribution equipment operates closer to its absolute physical and thermal limits than ever before. Any component suffering from hidden internal structural defects will inevitably fail under these demanding conditions.
From a pure procurement management perspective, selecting an unverified, lower-priced inductor coil appears to be an easy win for optimizing Bill of Materials (BOM) costs. However, saving $0.20 on a critical magnetic coil is a massive, high-risk gamble. When an essential switchgear array or critical circuit breaker fails inside an operational data server room or automated assembly line, the resulting financial damage is instantly calculated in tens of thousands of dollars per minute of unplanned downtime.
A single sub-standard component costing less than a dollar easily results in the destruction of a premium $5,000 power distribution cabinet, severe reputational damage, and lost client trust. In 2026, engineering reliability is not a premium luxury—unplanned operational downtime is the ultimate expense.
At HAIPART (Wenzhou Zhonghui Electric), we recognized that protecting your systems from thermal degradation requires an absolute engineering obsession with manufacturing process predictability, rather than relying solely on post-production visual inspections. To permanently eradicate the hidden enemy inside your magnetic coil applications, HAIPART has engineered a fully standardized, closed-loop production framework:
1. Fully Tension-Controlled Automated Winding: Our advanced automated production facilities entirely eliminate human variation. By maintaining precise, continuous, and dynamic multi-axis tension control throughout the entire manufacturing process, we guarantee flawless uniform winding. Every copper layer is perfectly aligned, eliminating the micro-gaps and structural defects that spark destructive hot spots.
2. Premium Material Integrity: HAIPART strictly utilizes premium, ultra-stable high-grade enameled copper wire paired with advanced, heat-resilient insulation varnish coatings formulated specifically to endure high-frequency switching operations and high-temperature environments.
3. 100% In-Line High-Potential (Hi-pot) Testing: We do not conduct random batch sampling. Every single batch undergoes mandatory automated in-line diagnostic testing. Our systems measure dynamic resistance, tight inductance tolerances, and dielectric insulation strength. If a single coil deviates by even a micron from our strict engineering baselines, it is instantly isolated, ensuring zero defective components ever reach your assembly lines.
Do not allow sub-standard components to play thermal roulette with your sophisticated power distribution system architecture. Partnering with HAIPART means you are not merely buying a copper component; you are integrating verified, predictable engineering reliability into your global supply chain. Ensure your switchgear and circuit breakers perform flawlessly under pressure with HAIPART precision uniform winding technology. Contact our global technical support team today to request custom samples, evaluate our manufacturing data, and safeguard your engineering reputation.
