Every engineering manager and procurement specialist has experienced the same operational nightmare. You approve a golden sample from your precision metal stamping supplier. The dimensions are absolutely flawless, the surface finish is impeccable, and the initial trial fit into your low-voltage circuit breaker assembly passes with flying colors. Confident in these results, you sign off on the project, releasing the purchase order for mass manufacturing.
Then, the first production batch of 100,000 custom metal stamping components arrives at your high-speed automated assembly line. Within hours, the automated robotic arms begin to jam. The micro-components are failing to align, resulting in a sudden 5% line rejection rate. The assembly line grinds to a halt, downstream schedules slide, and the cost of unexpected downtime skyrockets. The engineering room is left with one frustrating question: "But the samples were perfect—what went wrong?"

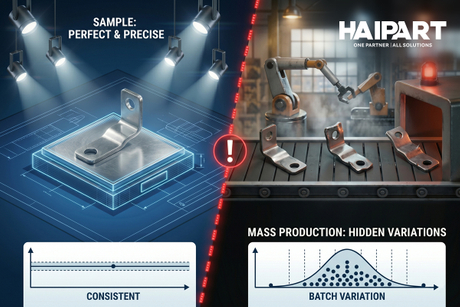

The operational gap between a "perfect sample" and consistent high-volume manufacturing is where corporate profitability goes to die. In high-precision electrical and hardware industries, a precision metal stamping component is not just a piece of punched metal sheet; it is the fundamental mechanical backbone of your entire product ecosystem. When custom metal stamping components exhibit even a micro-deviation in spring-back or progressive orientation, high-speed automated systems will fail.
The Industry Reality: A prototype component processed in a controlled, low-speed environment behaves fundamentally differently than components passing through a high-speed progressive tool running continuously at hundreds of strokes per minute.
To eliminate dimensional variance and guarantee that component #1 and component #1,000,000 are identical twins, precision metal stamping manufacturers must engineer out the three invisible variables that traditional suppliers fail to control:
During the prototyping stage, sample parts are often stamped using soft tooling or progressive dies running at low speeds (under 30 strokes per minute). The die steel remains cool, and the lubrication film is static.
However, during high-volume precision metal stamping runs, the progressive die operates at high speeds (often exceeding 150 strokes per minute). High-frequency friction generates localized thermal energy, causing the die components to experience microscopic thermal expansion. If the multi-station progressive die is not engineered with precise thermal expansion clearances and high-grade cooling paths, tolerances shift dynamically, leading to dimensional drift and unexpected burrs.
A primary failure point in securing uniform custom metal stamping results is the raw material sheet metal coil variation. The mechanical properties of steel or alloy coils can fluctuate subtly between separate production batches.
If your precision metal stamping partner lacks automated, in-line material testing, variations in material yield strength and grain structure will dramatically alter the spring-back profile after the bending station. A slightly harder section of a steel coil yields a different final angle, resulting in a micro-deviation that compromises structural assembly alignment.
Traditional manufacturing relies on post-production statistical quality control, which inspects components hours after they have been processed. In modern high-speed custom metal stamping, a micro-wear on a punching pin can produce out-of-tolerance parts within minutes.
True precision metal stamping requires advanced, multi-station progressive tools integrated with automated in-line CCD optical vision systems and real-time tonnage sensors. These systems monitor every single press stroke, immediately flagging any micro-deviation before it compounds into thousands of rejected units.
Operational Metric | Low-Cost Stamping Supplier | High-Precision Engineered Stamping |
Initial Tooling Capital Investment | Low (Standard Die Steel) | Optimized (Premium Carbide & Tool Steel) |
Mass Production Line Jam Rate | 2% to 5% (Inconsistent Spring-back) | < 0.05% (Guaranteed 0.02mm Tolerance) |
Progressive Tool Lifespan (Strokes) | ~500,000 (Requires Frequent Maintenance) | > 3,000,000 (Stable Run Lifecycles) |
Total Cost of Ownership (TCO) | High (Hidden Costs of Scraps & Jams) | Low (Predictable, Continuous Output) |
Procurement excellence and strategic sourcing are not achieved by selecting the lowest upfront quote. True cost optimization involves minimizing the Total Cost of Ownership (TCO). Investing in advanced custom metal stamping processes that prioritize material science, precise progressive tool engineering, and strict micro-tolerance control eliminates the hidden costs of assembly downtime, manual rework, and emergency air-freight charges.
When selecting your next precision metal stamping partner, move beyond the golden samples. Audit their automated testing capabilities, their engineering approach to metallurgical variance, and their tool-wear compensation strategies. Because in the world of high-performance manufacturing, a fraction of a millimeter is all it takes to separate market leaders from operational failures.
