In the global low-voltage electrical apparatus market, product reliability under harsh conditions is the ultimate line between a market leader and an average supplier. For global electrical brands, procurement managers, and product engineers, few things are more damaging to brand reputation than a sudden miniature circuit breaker field failure. Among various failure modes, terminal box ignition caused by short-circuit burn-out remains a catastrophic issue. When an MCB is deployed in high-humidity coastal wind farms, heavily polluted industrial zones, or dusty underground distribution boxes, its internal safety hinges on a critical yet often overlooked element: the insulating sideboard of the arc chasing chamber.
When a severe short-circuit fault occurs, the arc quenching system must split and extinguish thousands of amperes within milliseconds. This process inevitably generates extreme heat and deposits conductive metallic dust inside the chamber. In a clean, dry laboratory, standard components perform flawlessly. However, in real-world application scenarios, environmental moisture mixes with these conductive residues on the material surface. Under continuous operational voltage, microscopic leakage currents begin to flow, generating localized heat. For lower-grade plastics, this heat causes the material to decompose chemically, creating a carbonized path. This phenomenon, known as electrical tracking, turns an essential insulating layer into a conductor, resulting in a devastating phase-to-phase short circuit and permanent equipment destruction.

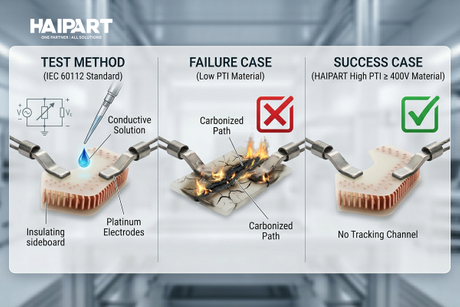

To eliminate this vulnerability before the product ever leaves the factory, premium manufacturers rely on rigorous material science benchmarking rather than guesswork. The internationally recognized method for evaluating tracking resistance is the IEC 60112 standard test, which quantifies the Proof Tracking Index. During this precise laboratory simulation, two platinum electrodes are pressed against the surface of the arc chamber components. A continuous electrical voltage is applied while a specialized conductive solution drops precisely every 30 seconds onto the material between the electrodes.
The Failure Threshold: Standard, low-grade nylon or generic fiberboards fail rapidly. After just a few drops of the contaminated liquid, a blackened, burnt tracking channel forms, causing a complete insulation breakdown and triggering an automatic current trip.
The High-Performance Benchmark: High-performance engineering materials must withstand 50 consecutive drops of this corrosive liquid under high voltage without forming any conductive tracking paths.
As a trusted strategic supplier to top-tier global electrical brands, HAIPART has completely engineered out this operational risk. Our customized arc chasing chamber assemblies utilize premium, eco-friendly modified insulating materials engineered for ultimate tracking resistance. In certified laboratory trials, HAIPART’s proprietary sideboards consistently deliver a high Proof Tracking Index of PTI $\ge$ 400V, with high-end configurations capable of reaching CTI 600V benchmarks.
As clearly visualized in comparative testing, while standard alternatives break down under high-voltage stress, HAIPART's sideboards exhibit zero structural degradation and no tracking channel formation whatsoever. This exceptional resilience guarantees that the electrical insulation integrity remains intact even after undergoing multiple harsh arc-splitting cycles in highly contaminated industrial atmospheres.
Investing in high-PTI arc chamber components is not merely a technical upgrade; it is a critical business strategy to safeguard your brand from expensive product recalls and market liability risks. By integrating HAIPART's precision-engineered solutions into your miniature circuit breaker production lines, you achieve unconditional electrical insulation safety and ultimate peace of mind.
Stop compromising on component reliability. Partner with an industry leader who understands standard compliance down to the micron. Visit our official technical resource hub at www.haipart.com to review our comprehensive material datasheets and accelerate your next-generation product development.
