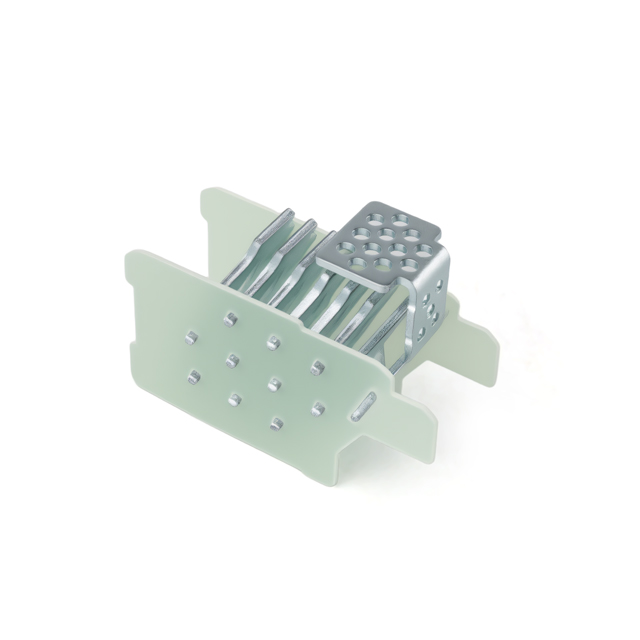

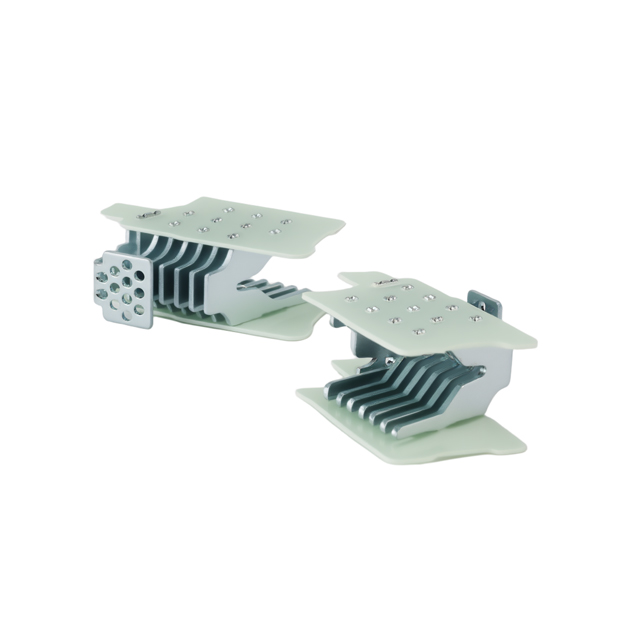

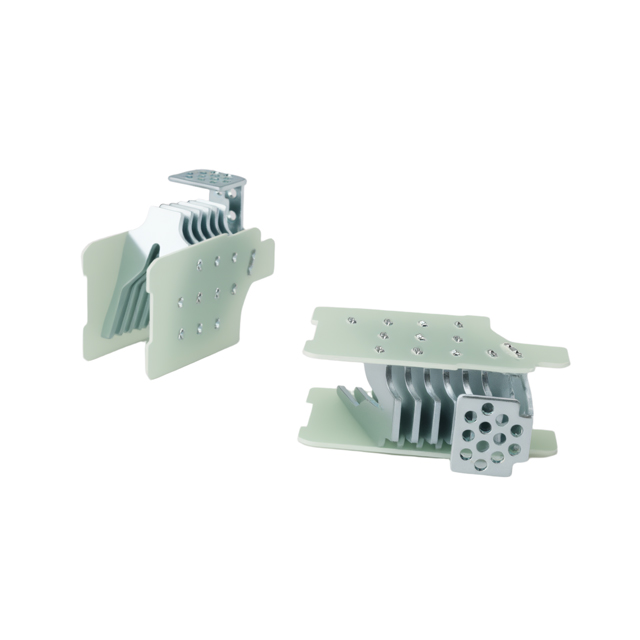

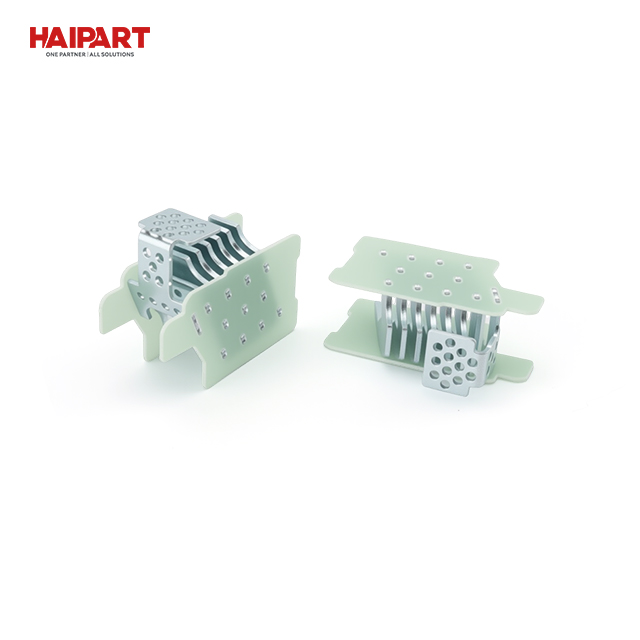

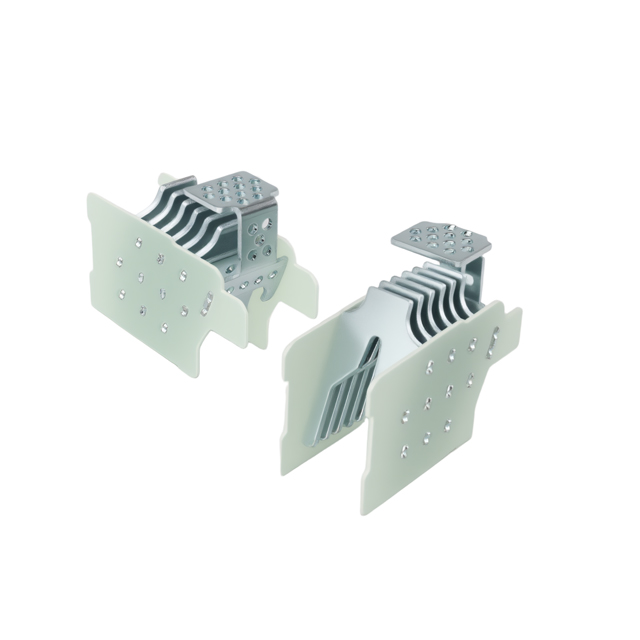

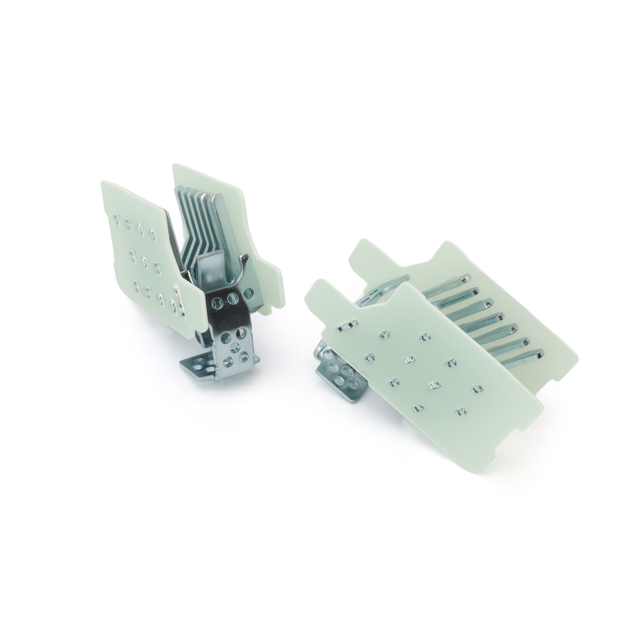

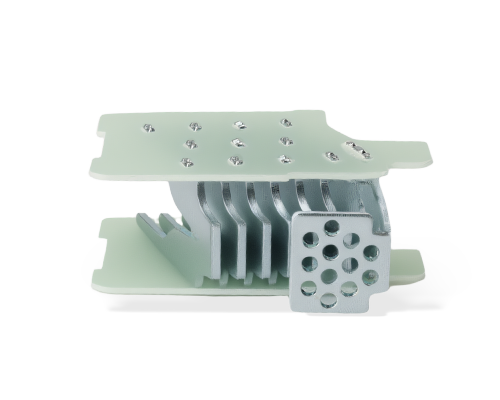

Arc Chamber for MCCB Molded Case Circuit Breaker (3012019)

Plate material: Low carbon steel Q195 Plate support: Epoxy laminated glass cloth board 3240 (FR-4) Electroplating: Zinc white coating 1μm 8 plates + 2 supports

Function: When the circuit breaker disconnects the circuit, quickly extinguish the arc generated between the contacts to prevent the arc from continuing to burn and causing equipment damage or circuit failure
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • Arc Chamber

  • HAIPART

  • 3012019

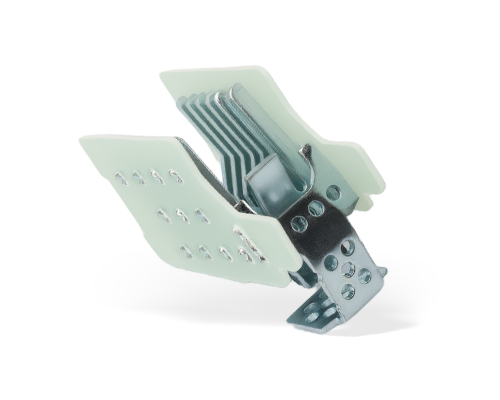

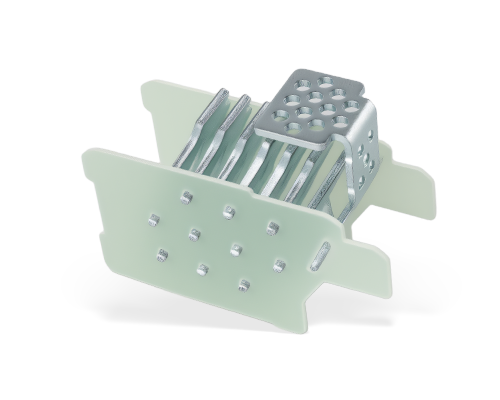

Arc Chamber



Low-Voltage Arc Chamber Manufacturer | HAIPART



HAIPART's salt-mist-resistant arc chamber utilizes special alloy plates and a sealed structure to effectively withstand the harsh offshore environment of high humidity and salinity. Our solution is safeguarding the power system security of multiple offshore wind farms.



Why choose the HAIPART Arc Chamber?



8 plates form 7 arc-extinguishing units, reducing arc length by 83%


The zinc coating vaporization absorbs heat, reducing arc temperature by 1500°C


The unique plate geometry enables a magnetic blow-off speed of 3.2 m/s



Applications:


Suitable for DC-side protection of photovoltaic inverters, elevator emergency brake systems, data center UPS power supplies, and other applications.
