Behind reliable circuit protection is a series of precisely engineered internal components.

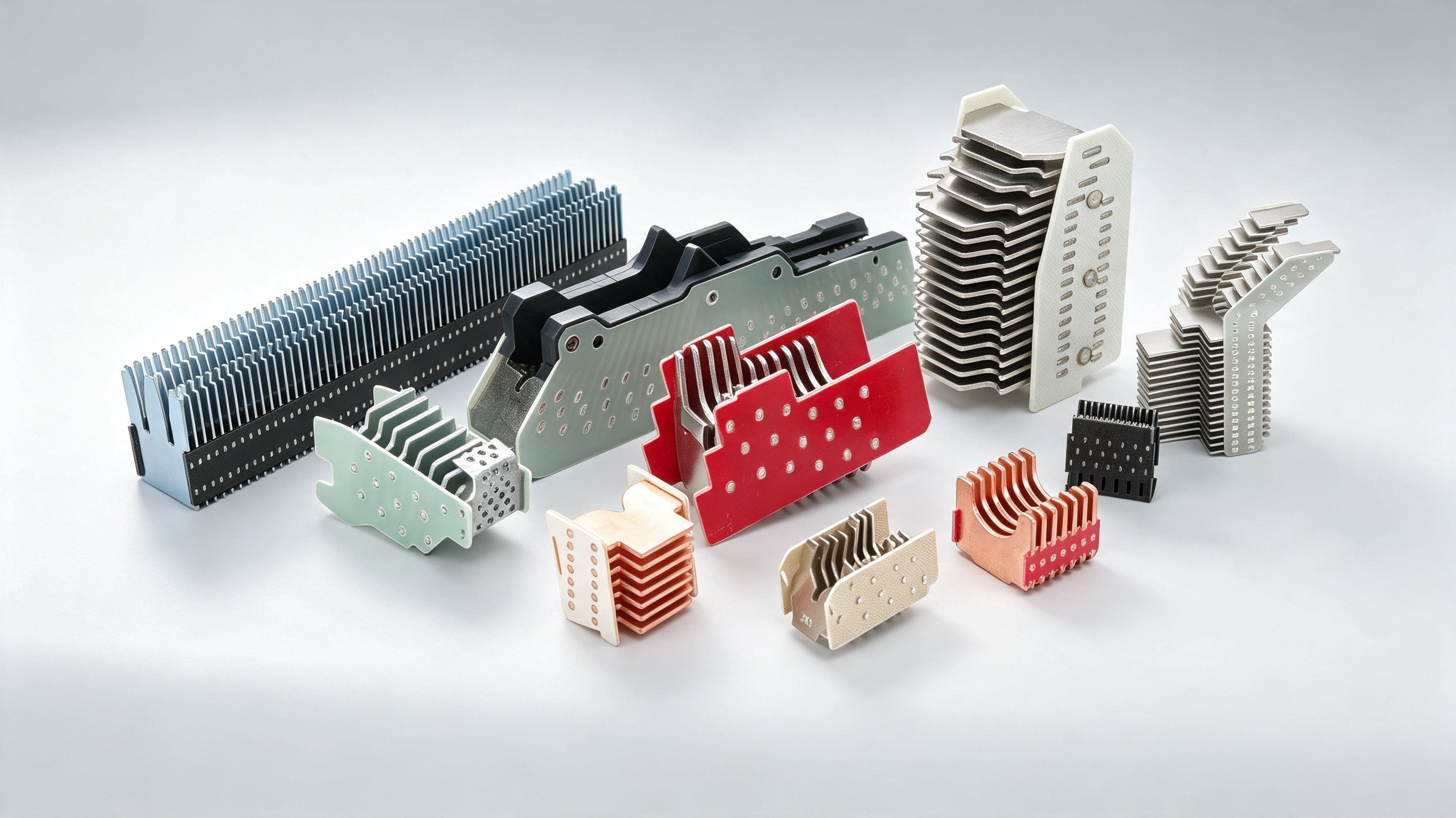

An Arc Chute, also known as an arc chamber or arc extinguishing assembly, is a key internal component used in many circuit breakers to manage the electrical arc generated when contacts separate.
In this video, HAIPART takes a closer look at the manufacturing details behind an Arc Chute — from precision-stamped metal plates and burr control to insulation materials, dimensional consistency, and final assembly.
Watch the video to see how precision manufacturing goes into every component.
When a circuit breaker interrupts an electrical fault, its contacts separate and an electrical arc can form between them.
An Arc Chute provides a controlled path for managing this arc. Inside the assembly, a series of metal splitter plates helps divide, stretch, and cool the arc, supporting the interruption process.
Industrial circuit breaker documentation from major manufacturers such as ABB and Eaton describes arc chutes as assemblies incorporating arc plates or splitter plates that help control and extinguish the arc. The exact construction varies according to the circuit breaker design, voltage, current, interruption requirements, and application.
For this reason, an Arc Chute is more than a simple stamped-metal assembly.
Its geometry, material selection, insulation structure, plate spacing, and assembly consistency all need to work together within the circuit breaker's overall interruption system.

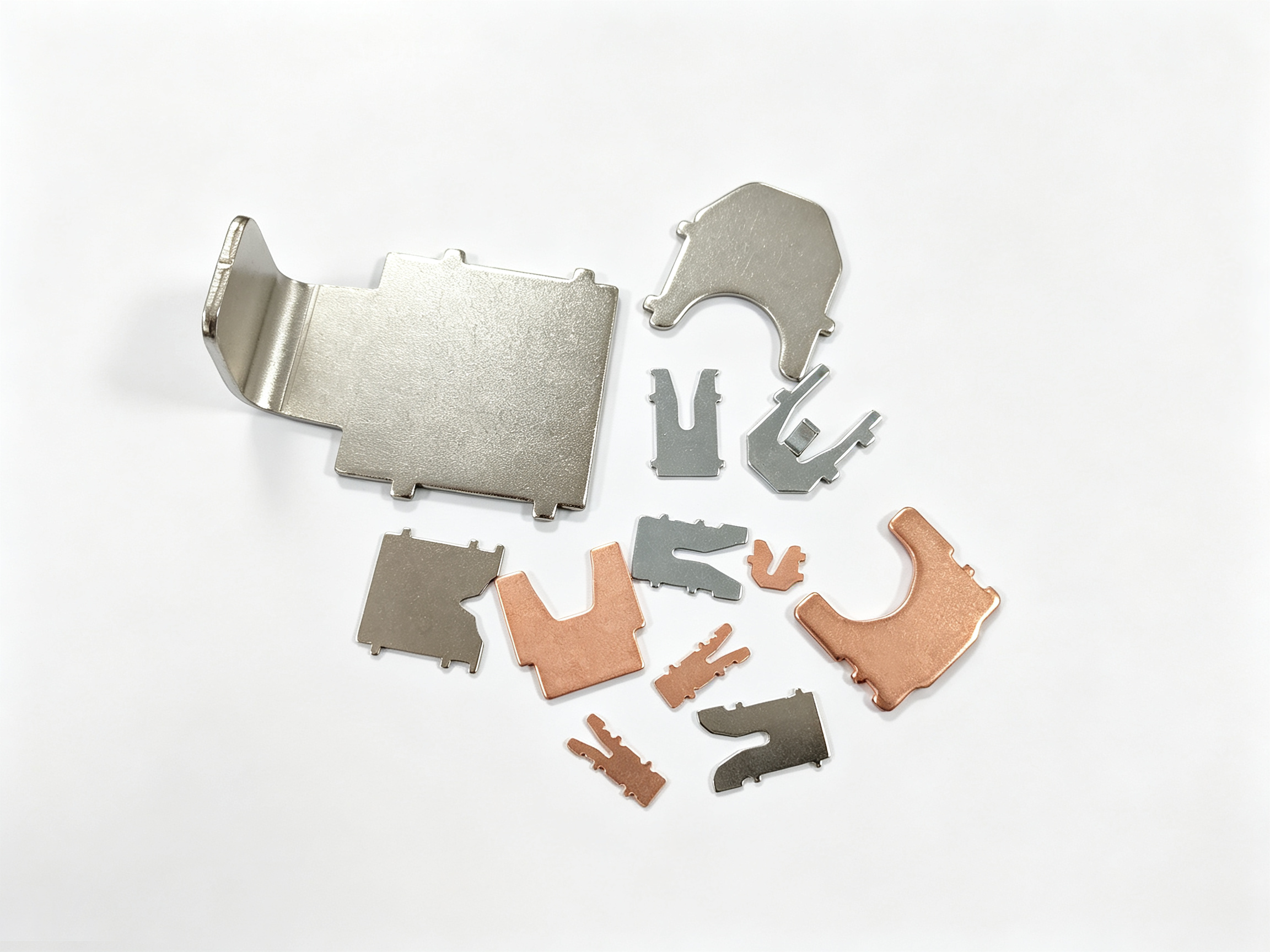

The internal plates of an Arc Chute are typically manufactured as precision-formed metal components.
During stamping production, dimensional consistency and edge quality are important considerations, particularly when multiple plates must be assembled into a compact structure.
Key manufacturing factors can include:
Dimensional consistency
Plate geometry
Hole and slot positioning
Edge quality
Burr control
Surface treatment
Consistent spacing during assembly
In the featured HAIPART manufacturing process, the video highlights uniform pitch control of ±0.05 mm for the component shown.
This value represents a manufacturing control point for the featured part. It should not be interpreted as a universal tolerance requirement for every Arc Chute design.
Burr control is another important part of precision stamping.
Excessive burrs can affect component handling, assembly, fit, and the positioning of adjacent parts. Controlling burr formation therefore contributes to cleaner and more consistent component production.
For circuit breaker components, precision stamping is not simply about producing a particular shape.
It is about producing repeatable components with controlled dimensions and consistent quality at production scale.
An Arc Chute assembly typically combines conductive or arc-interacting metal components with insulating structures.
The metal plates form the core arc-management structure, while insulating components help maintain the required electrical separation within the assembly.
Depending on the circuit breaker design, manufacturers may specify different:
Metal materials
Plating or surface treatments
Insulation materials
Plate thicknesses
Plate geometries
Insulation structures

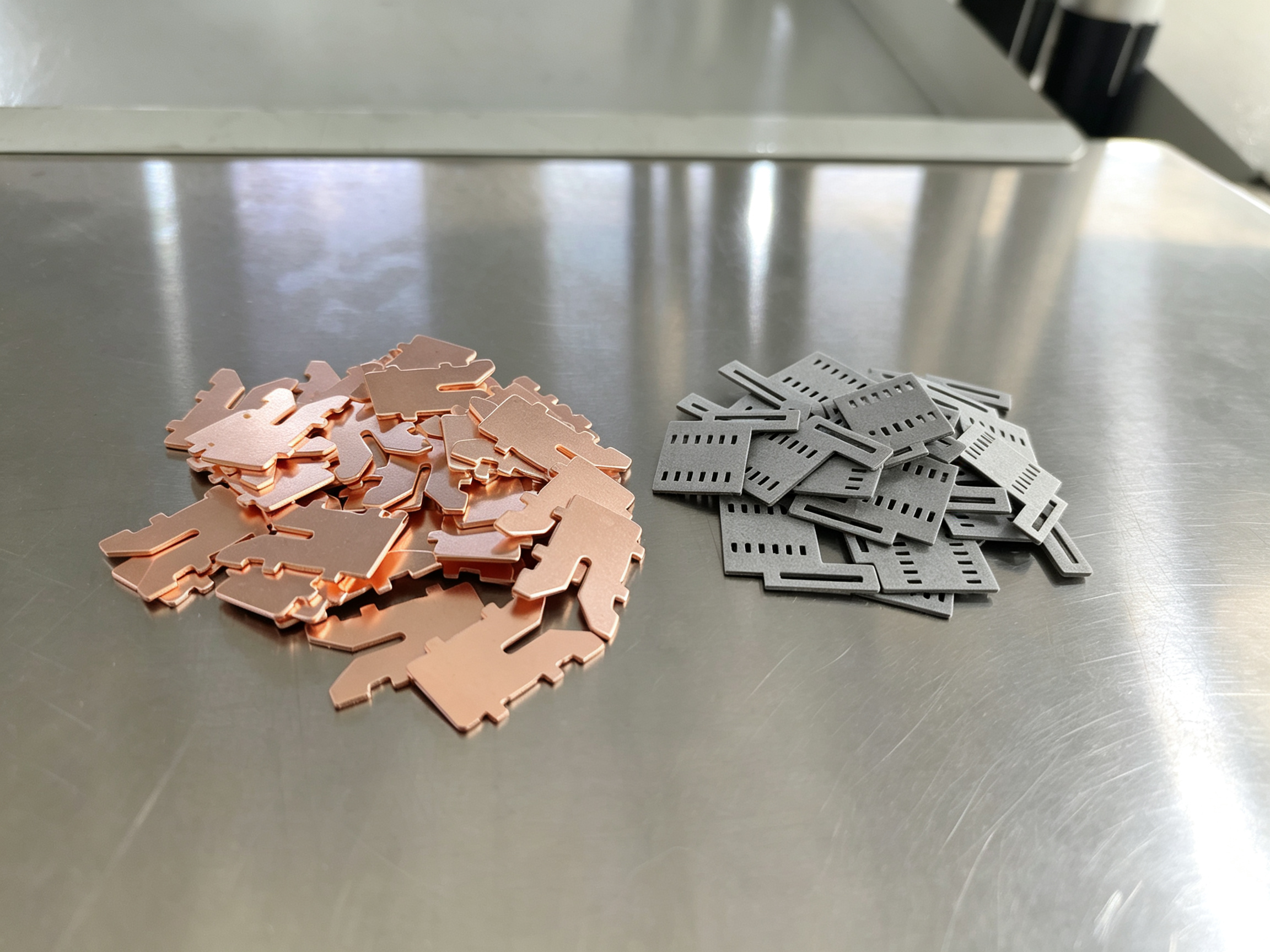

For the Arc Chute shown in this video, HAIPART highlights plated metal components together with vulcanized fiber board insulation.
Material selection should always be determined according to the customer's circuit breaker design and application requirements, including electrical, thermal, mechanical, environmental, and manufacturing considerations.
An Arc Chute is an integrated component rather than a collection of individual parts.
Multiple metal plates need to be positioned within the insulating structure with controlled spacing and orientation.
The internal geometry influences how the electrical arc interacts with the arc plates during interruption. ABB documentation, for example, describes arc plates separated by air gaps and explains how the arc develops through the arc bundle. Eaton documentation similarly shows arc chutes using spaced steel splitter plates within an insulating structure.
This makes assembly consistency an important part of the manufacturing process.
At production level, quality control can involve:
Stamping → Surface Treatment → Dimensional Inspection → Component Preparation → Assembly → Final Inspection
Each stage contributes to the consistency of the finished component.
For circuit breaker manufacturers, the requirement is often more than a single stamped component.
A complete Arc Chute may involve several manufacturing processes and component types that need to work together.
A capable component supplier therefore needs to manage the relationship between:
Precision manufacturing of customized splitter plates, brackets, supports, and other metal components.
Plating and other surface treatments can be incorporated according to the customer's material and application requirements.
Fabrication and integration of insulating components according to the specified design.
Controlled positioning and assembly of multiple components into a finished Arc Chute structure.
Dimensional, visual, and process controls help maintain consistency between production batches.
Customized production based on customer drawings, samples, specifications, and application requirements.
HAIPART provides customized manufacturing solutions for circuit breaker internal components, supporting customers from individual precision parts to assembled component solutions.
Our manufacturing capabilities can include:
Precision metal stamping
Customized stamped components
Surface treatment
Insulation component fabrication
Riveting and component joining
Precision assembly
Dimensional inspection
OEM / ODM manufacturing support
Our approach focuses on the complete manufacturing chain rather than a single production process.
Component → Process → Assembly → Quality
This enables HAIPART to support circuit breaker manufacturers looking for customized internal component solutions.
Arc Chutes are used across different circuit breaker designs and applications, and their exact construction depends on the electrical and mechanical requirements of the final product.
For this reason, HAIPART develops components according to the customer's specific requirements rather than relying on a one-size-fits-all design.
Typical project inputs may include:
Customer drawings
Product samples
Material requirements
Dimensional specifications
Surface treatment requirements
Assembly requirements
Production volume
Quality standards
From initial component fabrication through production support, HAIPART works with customers to develop manufacturing solutions for their circuit breaker internal components.
An Arc Chute is an internal circuit breaker component designed to manage and extinguish the electrical arc generated when contacts separate. It commonly incorporates arc or splitter plates together with insulating structures.
Material selection depends on the circuit breaker design and application. Arc Chute assemblies commonly combine metal arc plates or splitter plates with insulating materials. Surface treatments and insulation materials can also vary according to technical requirements.
Precision stamping helps maintain consistent component dimensions, geometry, edge quality, and assembly fit. Consistency becomes particularly important when multiple stamped plates are assembled into one Arc Chute.
Burr control refers to managing unwanted material edges produced during the stamping process. Controlled burr levels can help improve handling, assembly consistency, and the fit of adjacent components.
Yes. HAIPART provides customized manufacturing solutions for circuit breaker internal components based on customer drawings, samples, technical specifications, and application requirements.
Yes. HAIPART's component portfolio includes Arc Chutes, Stamping Parts, Terminal Components, Copper Coils, Welding Components, Riveting Parts, and other customized internal components for low-voltage circuit breaker applications.
From precision stamping to component assembly, HAIPART provides customized manufacturing solutions for circuit breaker internal components.
