How do arc splitter plates perform under repeated electrical stress and tropical, humid, and salt-laden environments?
An arc chute may look like a simple stack of metal plates, but its long-term performance depends on much more than its geometry. During circuit interruption, splitter plates are exposed to intense thermal and electrical stress. In tropical and coastal environments, the same components may also face high humidity, condensation, and chloride contamination.
For this reason, electrical endurance and corrosion resistance should be considered as two complementary aspects of arc chute reliability.
When a circuit breaker interrupts a fault current, the electrical arc must be divided, elongated, cooled, and extinguished rapidly. An arc chute uses multiple metal splitter plates to help control this process.
The plates are therefore exposed to repeated arc-related thermal stress and material erosion during circuit-breaker operation. Maintenance guidance for circuit breakers identifies erosion of splitter plates as an important inspection point, because excessive erosion can affect the condition and performance of the arc chute.
This creates the first major aging mechanism:
Electrical stress → Arc exposure → Thermal loading → Plate erosion → Long-term arc-chute degradation
Electrical endurance testing is therefore important when evaluating the ability of a circuit breaker to withstand repeated operating cycles. IEC 60898-1, for example, specifies requirements and tests for AC circuit-breakers used for overcurrent protection in household and similar installations.
But electrical stress is only part of the picture.

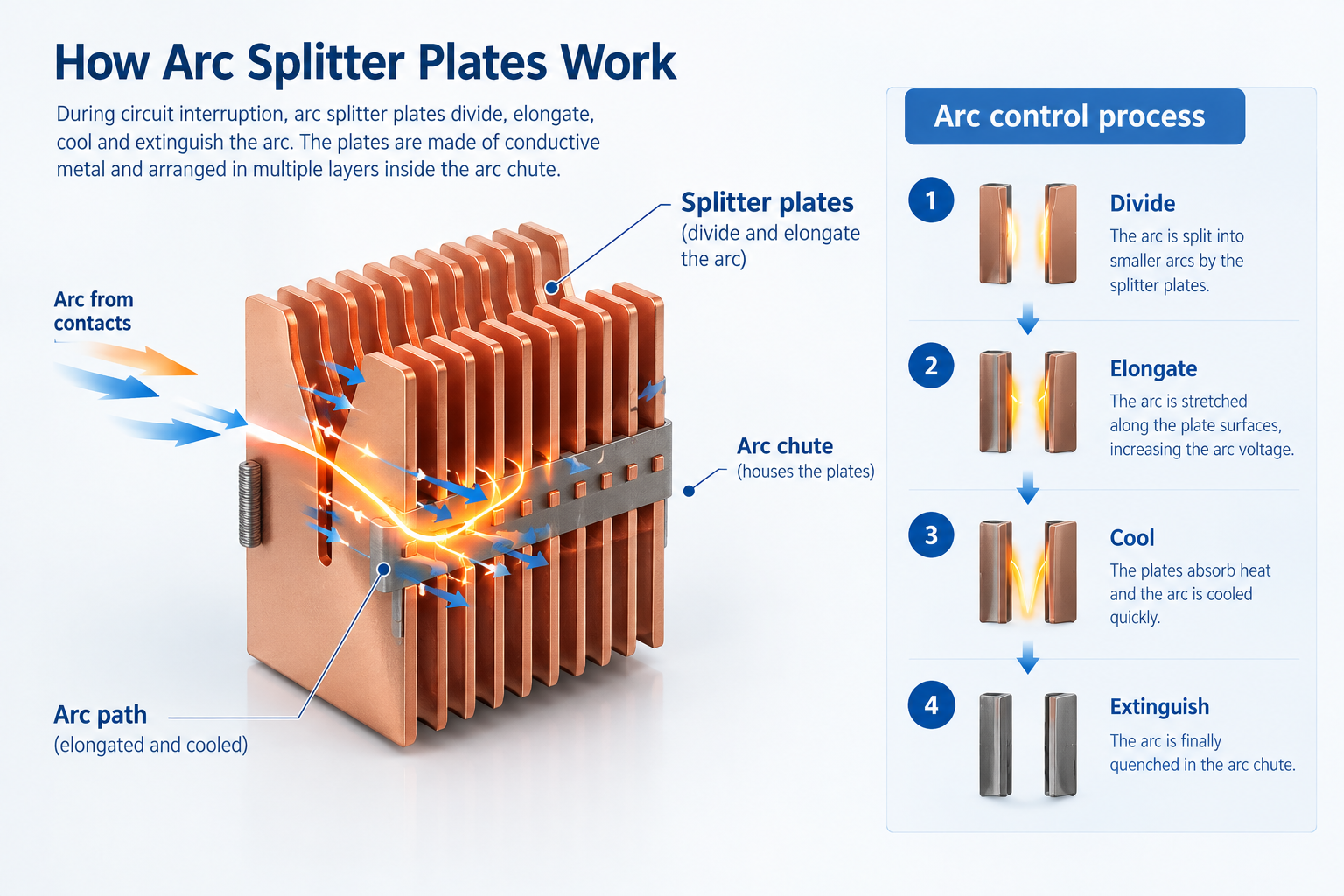

Figure 1. Arc splitter plates divide, elongate, cool and extinguish the electrical arc.
A metal arc plate installed in a tropical or coastal environment can experience a combination of:
High relative humidity
Temperature fluctuations
Condensation
Chloride deposition
Repeated wet–dry cycles
Long periods of surface wetness
Atmospheric corrosion is strongly influenced by humidity, temperature, chloride contamination, and time of wetness. Marine corrosion research shows that chloride-containing deposits can absorb moisture and promote the formation of an electrolyte film on metal surfaces, accelerating electrochemical corrosion.
This is particularly important in salt-laden environments.
The corrosion process can be simplified as:
Salt deposition → Moisture absorption → Electrolyte film → Electrochemical corrosion → Coating degradation → Substrate corrosion
Therefore, a coating that looks stable under normal indoor conditions may behave differently after prolonged exposure to humidity and chloride contamination.

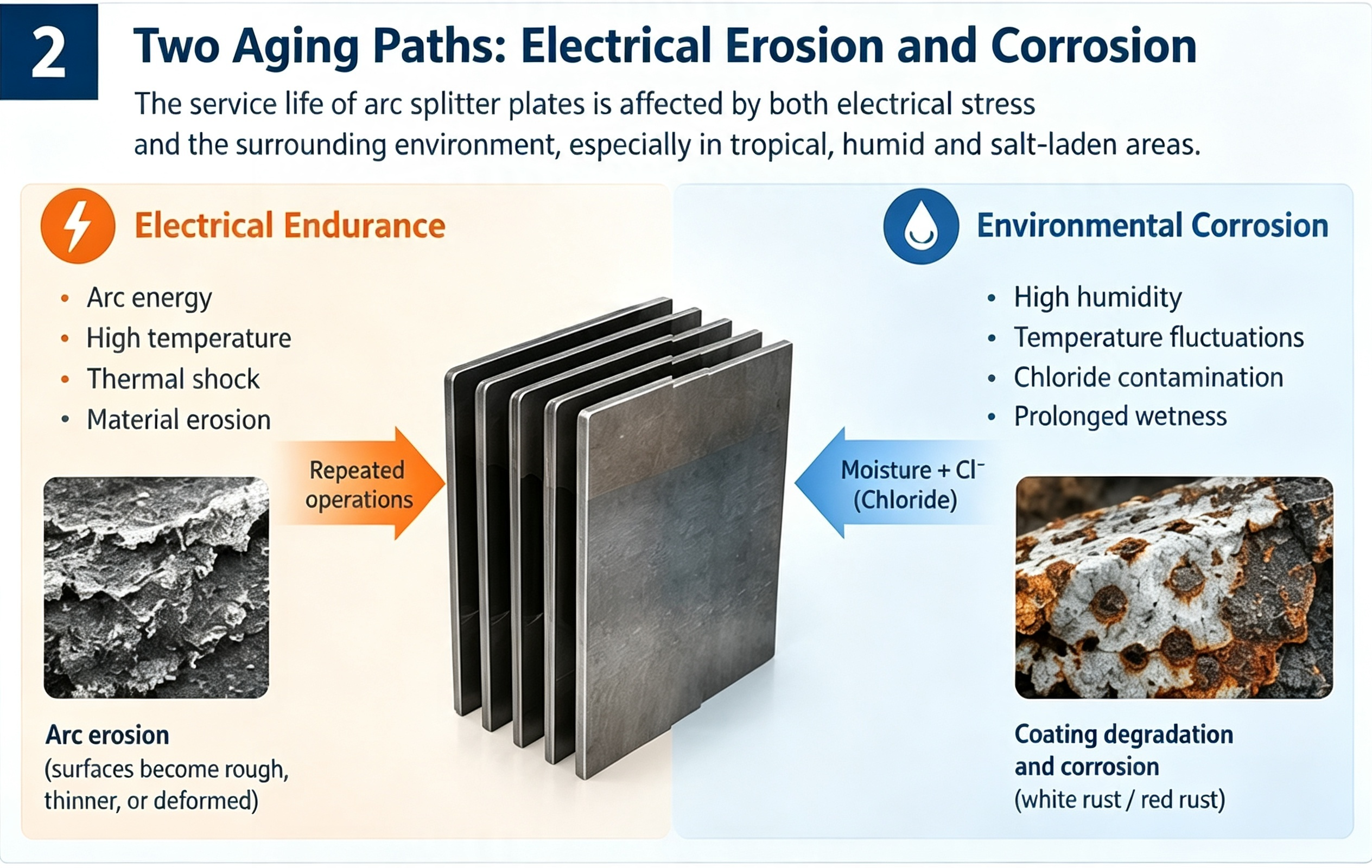

Figure 2. Arc splitter plates can experience two major aging mechanisms: electrical erosion and environmental corrosion.
For steel arc plates, a protective metallic coating can act as an important barrier between the steel substrate and the surrounding environment.
However, corrosion resistance is not determined by coating thickness alone.
Three factors should be considered together:
Factor | Why It Matters |
|---|---|
Coating thickness | Provides physical protection and corrosion allowance |
Coating continuity | Reduces direct exposure of the steel substrate |
Surface defects / pores | Can become localized corrosion initiation sites |
IEC 60068-2-11:2021 specifically describes salt-mist testing as a method for assessing corrosion resistance and evaluating the quality and uniformity of protective coatings. It is particularly useful for detecting discontinuities such as pores and other coating defects.
This means that a salt spray test should not be viewed simply as a “rust or no-rust” test.
It is also a way to investigate whether the coating system can maintain its protective function when exposed to an aggressive chloride environment.
One important distinction in coating evaluation is the difference between early-stage coating corrosion and corrosion of the underlying steel.
A coating may show visible corrosion products before the steel substrate has developed significant red rust. Therefore, visual inspection should distinguish between:

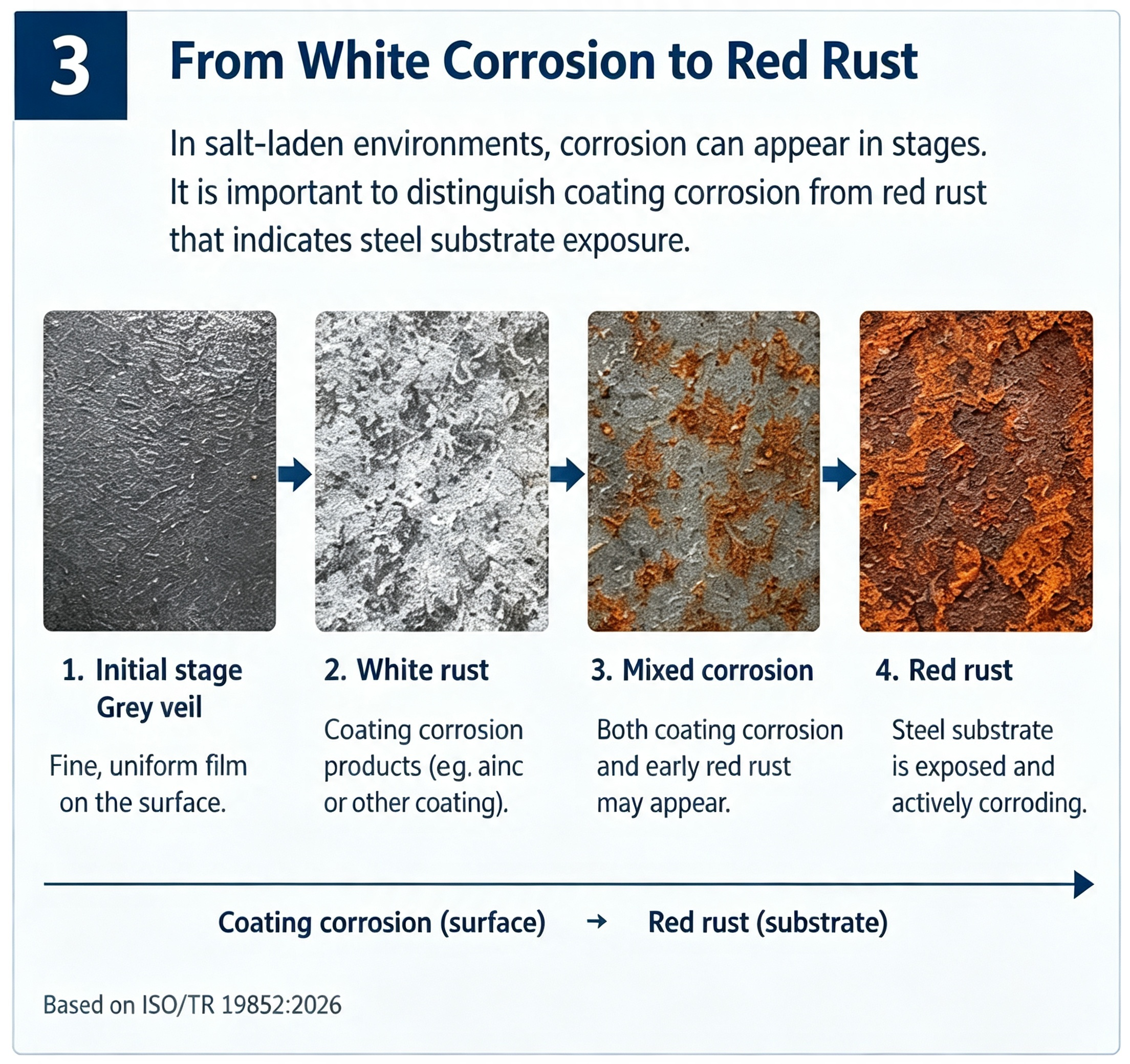

Figure 3. Typical visual progression from surface corrosion to red rust on a metallic coating system.
Coating corrosion / surface deposits and Red rust associated with exposed or actively corroding steel substrate.
The latest ISO technical work on neutral salt spray testing, ISO/TR 19852:2026, specifically documents the observation of grey veil, white rust, and red rust during salt spray exposure.
For arc splitter plates, this distinction is useful because the engineering question is not simply:
“Did the surface change color?”
The more important questions are:
Has the protective coating remained continuous?
Has corrosion reached the steel substrate?
Has corrosion caused measurable material loss?
Has surface condition changed sufficiently to affect component function?
ISO 9227:2022 defines procedures for three major salt spray methods:
NSS — Neutral Salt Spray
AASS — Acetic Acid Salt Spray
CASS — Copper-Accelerated Acetic Acid Salt Spray
For metallic materials and protective coatings, NSS is commonly used to evaluate corrosion resistance and identify coating discontinuities.
However, one point is especially important when interpreting test results:
Salt spray hours should not be directly converted into real-world service years.
ISO 9227 explicitly states that salt spray tests are not intended to predict long-term corrosion resistance or provide a simple ranking of materials based only on exposure time.

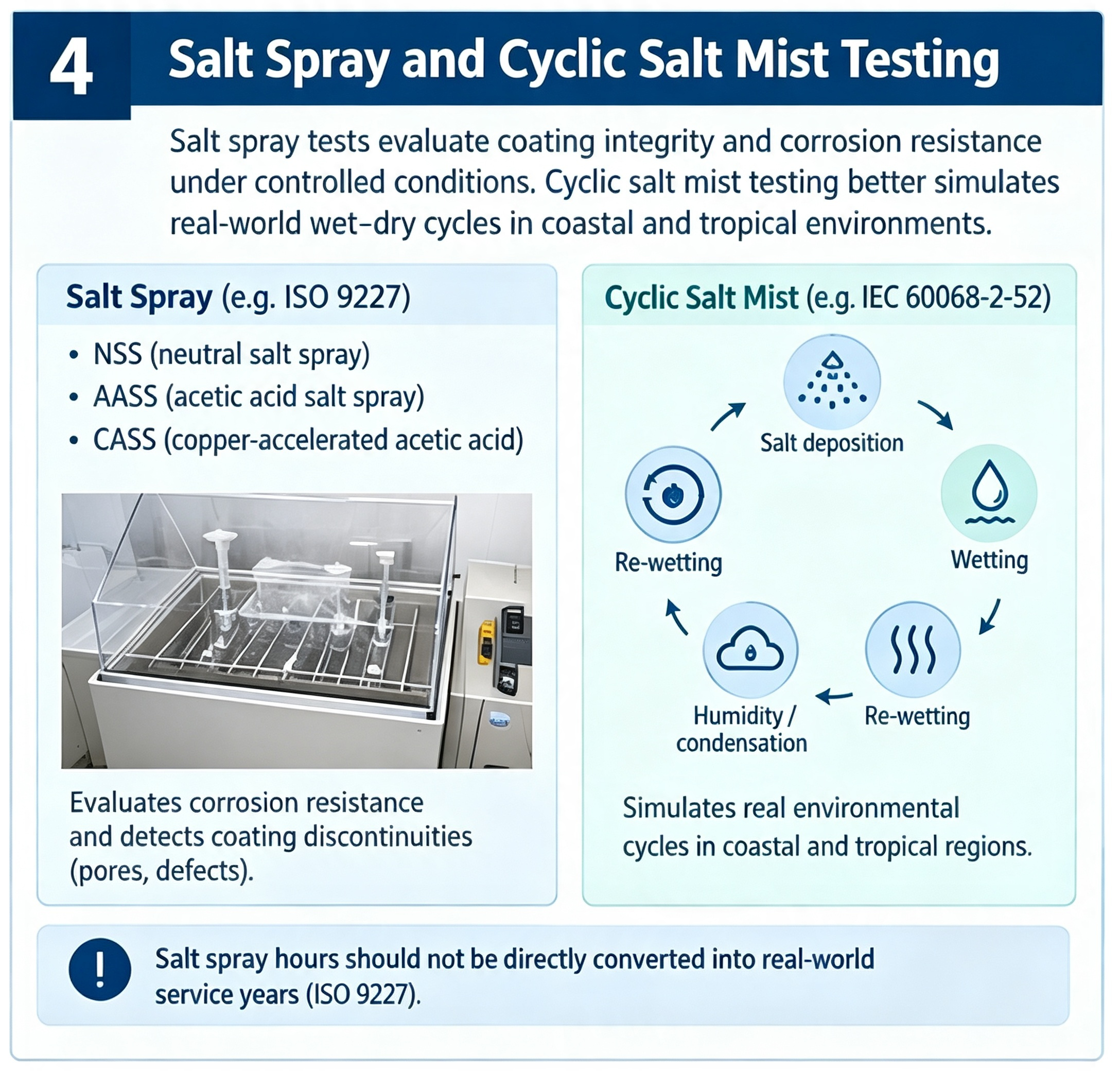

Figure 4. Salt spray and cyclic salt mist testing provide controlled methods for evaluating corrosion resistance and coating integrity.
Therefore, a statement such as:
“500 hours of salt spray equals X years of outdoor service”
would be technically misleading without additional environmental and product-specific evidence.
Salt spray exposure is better treated as a controlled corrosion-resistance indicator.
Real environments are rarely a constant salt spray.
Outdoor components can experience a sequence of:
Salt deposition → Wetting → Drying → Humidity → Condensation → Re-wetting
IEC 60068-2-52:2017 addresses cyclic salt mist testing for components and equipment intended to withstand salt-laden atmospheres. The standard recognizes that salt can degrade the performance of metallic and non-metallic components.
This wet–dry cycling is particularly relevant when considering tropical and coastal applications, where deposited salts can remain on a component and repeatedly interact with atmospheric moisture.
For an arc chute, electrical and environmental aging should therefore be viewed as two different but interacting dimensions.
Aging Factor | Primary Stress | Typical Concern |
|---|---|---|
Electrical endurance | Arc energy and thermal stress | Splitter plate erosion |
Salt spray | Chloride and moisture | Coating degradation |
Humidity / condensation | Moisture exposure | Corrosion initiation |
Cyclic salt mist | Wet–dry cycling | Accelerated environmental degradation |
Recent engineering research also demonstrates the interest in combining erosion resistance and corrosion protection within arc-plate coating systems. A 2025 patent application for circuit-breaker arc plates, for example, describes a composite nickel-based coating with silicon-carbide particles intended to improve wear/erosion resistance while retaining corrosion-protection characteristics for low-carbon-steel arc plates.
This illustrates an important engineering principle:
An arc plate coating may need to survive both the electrical arc environment and the surrounding atmospheric environment.
For manufacturers and circuit-breaker engineers, a more complete evaluation can combine several checks:
Base material verification
Coating thickness measurement
Coating continuity and surface inspection
Adhesion or related coating-quality evaluation
Neutral salt spray according to the applicable specification
Cyclic salt mist where the application requires it
Damp-heat or humidity exposure where relevant
Visual inspection for white corrosion and red rust
Examination of localized corrosion and coating defects
Circuit-breaker electrical endurance testing
Arc-chute inspection after repeated operation
Splitter plate erosion assessment
Dimensional and structural inspection
The key is to evaluate corrosion resistance and electrical endurance as complementary evidence, rather than treating either test as a complete prediction of field life.

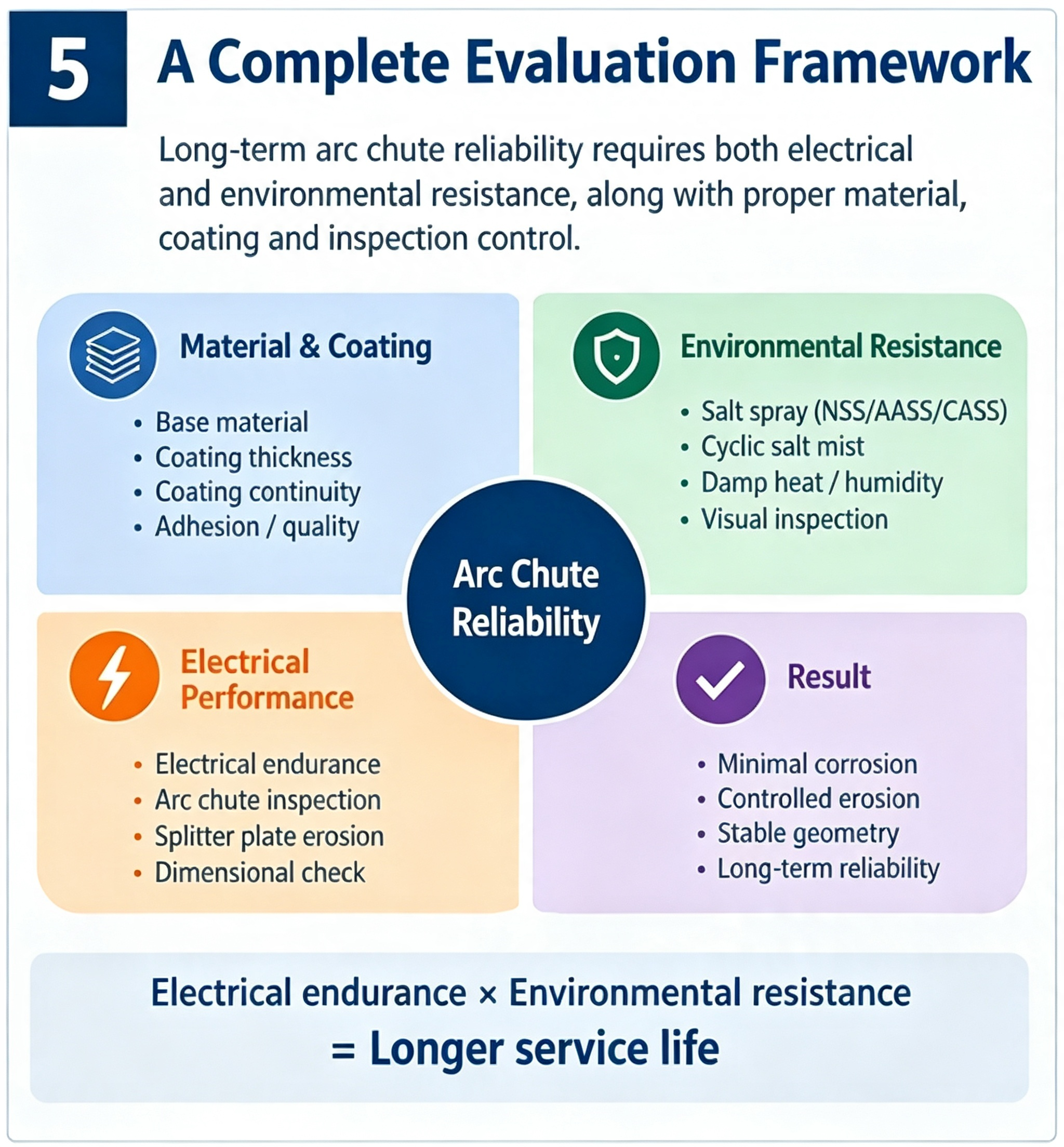

Figure 5. A comprehensive evaluation framework combining material, coating, environmental resistance and electrical endurance.
For circuit-breaker manufacturers, arc chute performance begins with the selection and control of the complete component system:
Steel substrate → Surface preparation → Protective coating → Coating uniformity → Arc resistance → Manufacturing consistency → Inspection
A robust arc chute must maintain its functional geometry while resisting both repeated arc exposure and the environmental conditions expected in its application.
For tropical, humid, and coastal markets, coating performance deserves particular attention because chloride contamination and prolonged surface wetness can accelerate atmospheric corrosion.
Electrical endurance tells us how an arc chute withstands repeated electrical stress. Salt spray and cyclic environmental testing tell us how its metallic components and protective coatings respond to corrosive conditions.
Neither test alone represents the complete service life of an arc chute.
Together with material selection, coating control, dimensional accuracy, and post-test inspection, they provide a more meaningful framework for evaluating long-term arc-chute reliability.
At HAIPART, arc-chute development focuses on the precision manufacturing of circuit-breaker internal components, with attention to material selection, forming accuracy, surface treatment, and consistent component quality for demanding circuit-protection applications.
