A CAM switch may look simple from the outside, but its switching performance depends on a combination of precisely manufactured internal components.
Inside a modular CAM switch, metal stamping parts, copper conductive components, electrical contacts, shafts, fasteners, and other mechanical parts work together to achieve accurate switching, stable electrical conductivity, reliable positioning, and long service life.
For electrical manufacturers, the quality and consistency of these internal components are critical to the overall performance of the finished CAM switch.
HAIPART provides customized manufacturing solutions for key CAM switch components, supporting electrical manufacturers with precision stamping, machining, riveting, assembly support, and component supply.
A CAM switch typically consists of multiple mechanical and electrical components. Although each individual part may be relatively small, their dimensional accuracy, material properties, and assembly consistency can directly influence the final switching performance.

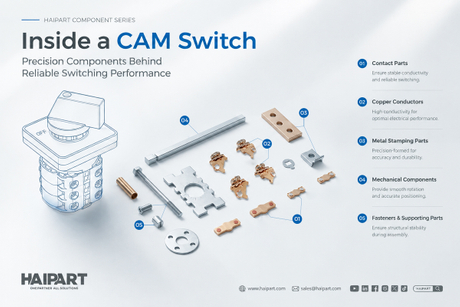

Key CAM switch internal components include:
Metal stamping parts
Copper conductive parts
Electrical contact components
Shafts and mechanical components
Fasteners and supporting components
Each component performs a specific function within the switching mechanism.
Metal stamping parts are widely used in CAM switch structures because stamping enables manufacturers to produce precise metal components efficiently and consistently.
Depending on the design requirements, stamped components may be manufactured from different conductive or structural metals and formed through processes such as blanking, bending, forming, and progressive stamping.
For CAM switches, precision stamping helps achieve:
Consistent component dimensions
Accurate positioning
Stable mechanical movement
High production repeatability
Efficient large-volume manufacturing
HAIPART supports customized metal stamping solutions based on customer drawings, specifications, and application requirements.
Electrical conductivity is another important factor in CAM switch performance.
Copper conductive components provide an efficient electrical path within the switching system. Material selection, dimensional accuracy, surface condition, and connection quality can all influence electrical performance.
Depending on the application, copper components can be manufactured and processed according to specific requirements for conductivity, geometry, and assembly.
HAIPART provides customized copper components for electrical applications, supporting manufacturers that require consistent dimensions and stable production quality.
The contact system is one of the most important areas inside a CAM switch.
Electrical contact components are responsible for establishing or interrupting the electrical connection as the switch is rotated through different positions.
Reliable contact components need to maintain stable contact pressure and accurate positioning during repeated switching operations.
Their performance can be affected by factors such as:
Contact material
Surface treatment
Dimensional tolerance
Contact pressure
Assembly accuracy
Switching frequency
For this reason, precision manufacturing and consistent quality control are essential when producing CAM switch contact components.
The rotating mechanism is another essential part of a CAM switch.
The shaft and associated mechanical components transfer the user's rotational movement into the internal switching mechanism. Their dimensional accuracy directly affects rotation, positioning, and switching consistency.
A well-manufactured shaft system can help provide:
Smooth rotational movement
Accurate switch positioning
Consistent mechanical operation
Reliable alignment with internal components
Long-term mechanical durability
Machining, forming, and other precision manufacturing processes can be used according to the component design and required tolerances.
Small fasteners and supporting components are sometimes overlooked when discussing CAM switch technology. However, they play an important role in maintaining the structural integrity of the assembly.
These components help secure internal parts and maintain their relative positions during operation.
Proper dimensional consistency is particularly important for automated or high-volume assembly, where even small variations can affect assembly efficiency and final product consistency.
A CAM switch is a system made up of many individual components.
The performance of the finished product is therefore not determined by one component alone. Instead, it depends on how accurately all components work together.
For example, dimensional variation in a shaft can influence rotational positioning. Inconsistent contact geometry can affect electrical connection. Poorly formed stamping parts may affect assembly accuracy.
This means that CAM switch component manufacturing requires more than simply producing individual parts.
It requires:
Material → Precision Manufacturing → Dimensional Control → Assembly Consistency → Reliable Performance
This is particularly important for electrical manufacturers producing CAM switches for industrial control and electrical equipment.
HAIPART focuses on the manufacturing of precision components for electrical and circuit protection applications.
For CAM switch applications, HAIPART can provide customized manufacturing support for various internal components, including:
Metal stamping processes can be used to manufacture complex electrical and mechanical parts with consistent dimensions and repeatability.
Customized copper components can support electrical conductivity requirements and specific assembly geometries.
Precision machining can be applied to shafts and other mechanical components requiring controlled dimensions and accurate positioning.
Riveting processes can help connect or secure multiple components within an assembly while maintaining production consistency.
For customers requiring more integrated manufacturing support, HAIPART can provide component assembly and production coordination according to project requirements.
For CAM switch manufacturers, sourcing each component from multiple suppliers can increase supply-chain complexity.
A component supplier capable of supporting multiple manufacturing processes can help simplify sourcing and improve production coordination.
HAIPART's approach is not limited to supplying individual parts. By integrating stamping, machining, riveting, conductive component manufacturing, and assembly support, HAIPART helps electrical manufacturers develop a more efficient component supply chain.
This can be especially valuable for customized CAM switch projects requiring:
Customer-specific component designs
Stable batch production
Consistent component dimensions
Multi-process manufacturing
Production scalability
Long-term component supply
CAM switches are commonly used in applications where manual or rotary switching is required.
Typical applications include:
Industrial control equipment
Electrical control panels
Motor control systems
Machine tools
Automation equipment
Power distribution equipment
Industrial machinery
Electrical equipment
In these applications, reliable internal components are essential for maintaining consistent switching and mechanical performance.
For electrical manufacturers, selecting the right component supplier can have a direct impact on product development and manufacturing efficiency.
A specialized supplier should be able to understand not only individual component drawings, but also the relationship between the component, manufacturing process, and final assembly.
Important factors include:
Engineering capability
Understanding component drawings, tolerances, materials, and manufacturing requirements.
Manufacturing capability
Supporting processes such as stamping, machining, riveting, and assembly.
Quality consistency
Maintaining stable dimensions and production quality across batches.
Customization
Adapting component designs and manufacturing processes to customer requirements.
Supply-chain support
Providing coordinated production for multiple component types.
A reliable CAM switch starts with reliable internal components.
From precision metal stamping parts and copper conductive components to contact components, shafts, fasteners, and supporting parts, every small component contributes to the performance of the final switching device.
HAIPART provides customized CAM switch component manufacturing solutions for electrical manufacturers, combining precision manufacturing capabilities with flexible production support.
From stamping and machining to riveting and assembly support, HAIPART helps global electrical manufacturers build a more reliable and efficient component supply chain.
Precision Components. Reliable Switching. Stronger Electrical Solutions.
Common CAM switch components include metal stamping parts, copper conductive parts, electrical contacts, shafts, mechanical components, fasteners, and other supporting parts.
Copper offers high electrical conductivity, making it suitable for conductive components and electrical connection applications within switching devices.
Depending on the component design, manufacturing processes may include metal stamping, precision machining, riveting, forming, surface treatment, and assembly.
Yes. CAM switch internal components can be customized according to customer drawings, dimensions, materials, tolerances, surface requirements, and assembly specifications.
Yes. HAIPART can support the manufacturing of multiple types of CAM switch internal components, including stamped parts, copper conductive components, contact components, shafts, and supporting components.
CAM switches are commonly used in industrial control, automation equipment, electrical control panels, motor control systems, machine tools, and other industrial electrical applications.
