HAIPART SCB: Low-Voltage Circuit Protection System

HAIPART SCB: Low-Voltage Circuit Protection System

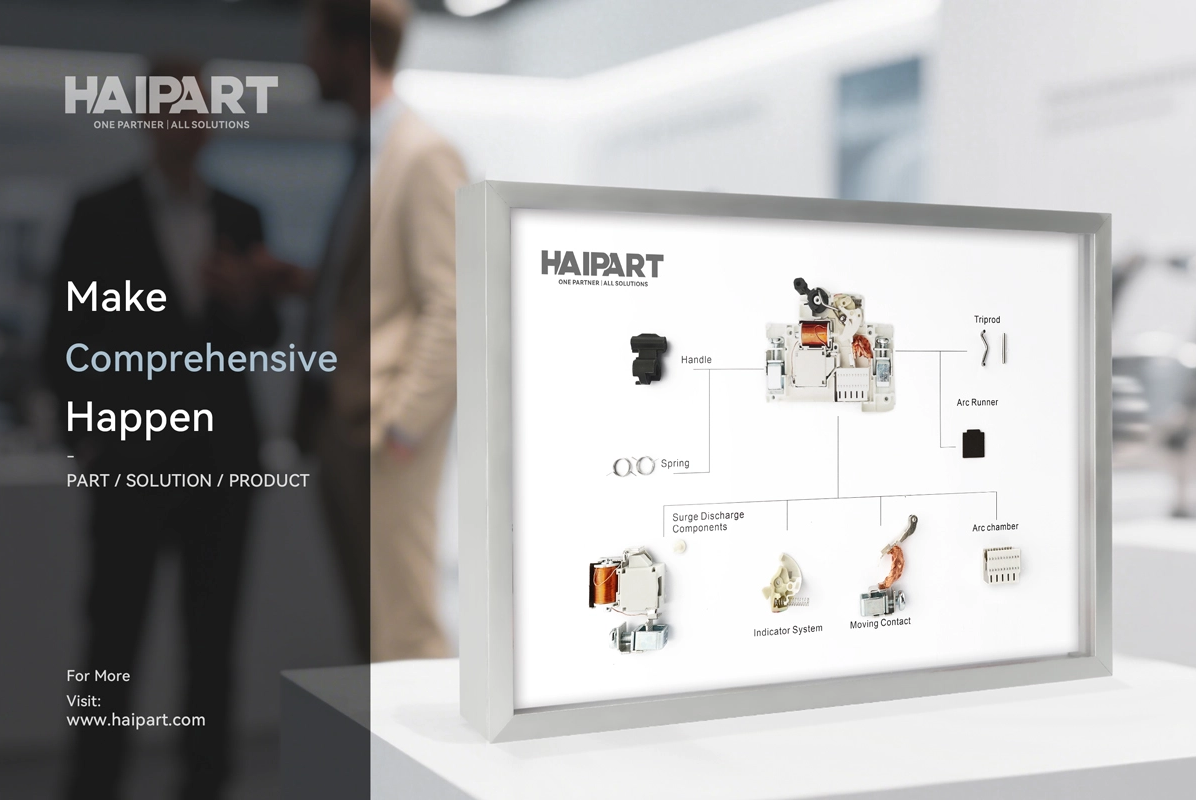

I. Component Structure

The SCB has 8 key modules:

Operating Mechanism (Triprod): Controls circuit on/off ️

Arc Extinguishing System (Arc Runner): Extinguishes arcs

Handle: Manual operation

Energy Storage Spring: Stores energy ⚙️

Overvoltage Protection: Guards against overvoltage ️

Arc Chamber: Isolates arcs

Status Indicator: Shows system status

Moving Contact: Connects circuits

II. Core Functions

Circuit Control: Manages on/off and operation

Fault Protection: Cuts dangerous currents, prevents overload/short-circuit ⛔

Status Display: Presents device status
