Global electrical manufacturing operates under strict rules. Market access is strictly gated by verifiable adherence to international safety and performance benchmarks. Navigating the complex, highly technical landscape of compliance delays time-to-market. It inflates R&D budgets and introduces massive risk if type-testing fails late in the development cycle. Component manufacturers must understand these requirements early to avoid costly redesigns. This guide serves as a practical framework for component manufacturers. It will help you evaluate, select, and implement the correct testing, design, and certification pathways. You will learn how to meet IEC Standards For Circuit Breakers efficiently and reliably.
Application Dictates the Standard: Differentiate immediately between industrial (IEC 60947-2) and residential/commercial (IEC 60898) requirements, as this dictates the entire engineering lifecycle.
Performance Metrics Matter: Certification hinges on verifiable data regarding ultimate short-circuit breaking capacity (Icu), service short-circuit breaking capacity (Ics), and short-time withstand current (Icw).
Component-Level Integration is Critical: Complete breaker certification relies heavily on the individual performance, material traceability, and thermal characteristics of sub-components (contacts, trip units, arc chutes).
The IECEE CB Scheme is a Multiplier: Utilizing the CB scheme can drastically reduce redundant testing costs across different international markets.
Pre-Compliance is Non-Negotiable: Integrating pre-compliance testing early in R&D mitigates the high financial risk of failing formal third-party certification.
Table of Contents
Successful compliance defines your market reality. Achieving CE marking or entering new geographic markets requires passing strict regulatory gates. Manufacturers must design components that pass initial tests without requiring continuous redesigns. Success means your product clears third-party laboratory evaluations on the first attempt. This efficiency protects your engineering budget and accelerates your launch timeline. When a sub-component fails during final assembly testing, the entire project stalls. You must engineer parts that exceed baseline requirements to provide a safety margin for the final OEM assembler.
Adherence to these standards is a primary revenue enabler. It is not just a technical requirement. Global trade relies on standardized safety metrics. The IECEE CB scheme facilitates international trade by harmonizing test reports. When your components meet these global benchmarks, you unlock access to dozens of member countries. This eliminates localized testing barriers and speeds up global distribution. Without verifiable compliance data, customs agencies will block shipments. Distributors will refuse to stock your products. You must treat regulatory alignment as a core function of your sales strategy.
Tier-1 circuit breaker OEMs demand pre-tested, high-reliability components. They source contacts, bi-metals, and microprocessors that already demonstrate compliance potential. OEMs cannot risk their final assemblies failing stringent IEC certifications due to substandard sub-components. Providing documented test data for your components makes you a preferred supplier. It shifts the compliance burden away from the final assembler. If you supply an arc chute, you must provide data on its outgassing properties and thermal resistance. If you supply a bimetal strip, you must guarantee its deflection characteristics under specific fault currents.
Compliance acts as a critical risk mitigation tool. It protects against catastrophic product failures, recalls, and legal liability. Historical industry precedents show that non-compliance costs can bankrupt manufacturers. Faulty circuit breakers cause fires, equipment damage, and severe safety hazards. Rigorous adherence to standards protects end-users and shields your brand reputation from irreversible damage. A single field failure traced back to a poorly manufactured contact rivet can trigger a massive recall. You must build traceability into your manufacturing process to isolate and contain potential defects before they reach the market.
Manufacturers must evaluate specific standards based on their product's end-use case. The application environment dictates the testing severity. We can categorize these requirements to clarify your engineering targets. You cannot apply a one-size-fits-all approach to component design. A contact material suitable for a residential breaker will vaporize in an industrial application.
Standard | Application Focus | Primary User | Key Characteristics |
|---|---|---|---|
IEC 60947-2 | Industrial Switchgear | Instructed Personnel | High voltage, Category A/B, Icw ratings |
IEC 60898-1 & 2 | Residential / Commercial | Uninstructed Users | Maintenance-free, lower voltage limits |
IEC 61009-1 | Residual Current (RCBO) | Mixed Users | Earth fault detection, fast response times |
IEC 62271-100 | High-Voltage AC | Utility / Grid Operators | Transient recovery voltage, capacitive switching |
This standard governs industrial circuit breakers. It evaluates equipment operated by instructed personnel. The standard demands higher voltage tolerances and specific utilization categories. Category A breakers trip instantaneously under short-circuit conditions. Category B breakers include an intentional short-time delay for selectivity. This delay requires massive thermal mass in the contact system to withstand the fault current without welding.
Industrial breakers increasingly integrate microprocessors and smart trip units. Annex F addresses these digital communication protocols. It ensures electronic components withstand electromagnetic interference and deliver precise tripping curves. You must test these microprocessors against severe voltage surges and radio frequency interference. A false trip caused by a nearby variable frequency drive is unacceptable in an industrial setting.
DC applications are rising rapidly. Solar PV systems, battery storage, and EV charging infrastructures rely on DC power. Annex P details the specific arc-quenching challenges and testing parameters for these high-demand DC environments. DC arcs do not have a natural zero-crossing point. Your arc chambers must feature permanent magnets or specialized geometry to stretch and cool the arc forcefully.
These standards outline parameters for residential installations. They emphasize strict requirements for operation by uninstructed users. The breakers must offer maintenance-free longevity. Part 1 covers AC applications up to 440V. Part 2 addresses both AC and DC applications up to 1000V. Safety margins here account for user ignorance and harsh domestic environments. The housing plastics must resist tampering and withstand high humidity without tracking.
Circuit breakers with integrated residual current protection (RCBOs) face unique criteria. These standards detail specific detection limits measured in milliamperes (mA). They also mandate rapid response times to prevent lethal electric shocks. Component design must balance overcurrent protection with sensitive earth-fault detection. The current transformer core material must offer high permeability to detect minute imbalances accurately.
High-voltage applications require distinct evaluation metrics. This standard focuses on transient recovery voltage (TRV). It also evaluates capacitive current switching capabilities. Components here must withstand extreme thermal and mechanical stresses during grid-level fault clearing. Vacuum interrupters and SF6 gas chambers dominate this category. Your component tolerances must account for massive pressure waves generated during arc interruption.
You must map specific engineering features to required testing outcomes. Every material choice impacts the final certification. Understanding these dimensions ensures your design meets strict IEC Standards For Circuit Breakers. You cannot guess at contact pressure or spring tension. You must calculate these values based on the required short-circuit forces.
Engineers must understand the critical distinctions in breaking capacities. Icu represents the Ultimate Short-Circuit Breaking Capacity. It is the maximum current a breaker can interrupt once, though it may be destroyed afterward. Ics is the Service Short-Circuit Breaking Capacity. The breaker must interrupt this current and remain fully operational. Icw denotes the Short-time Withstand Current, crucial for Category B breakers to maintain system selectivity. Your contact materials must balance conductivity with weld resistance to meet these varying demands. Silver-tungsten (AgW) offers excellent weld resistance for high Icw ratings, while silver-tin oxide (AgSnO2) provides better anti-welding properties for lower current applications.
IEC test sequences are notoriously severe. Sequence I through V in IEC 60947-2 compound mechanical and thermal stress. The exact same physical breaker unit must undergo sequential tests. It faces dielectric, overcurrent, short-circuit, and temperature rise evaluations without component replacement. This proves the long-term reliability of your sub-components under cumulative damage.
Sequence I: General performance characteristics, including tripping limits and dielectric properties.
Sequence II: Service short-circuit breaking capacity (Ics) verification.
Sequence III: Ultimate short-circuit breaking capacity (Icu) verification.
Sequence IV: Short-time withstand current (Icw) verification for Category B breakers.
Sequence V: Performance under short-circuit conditions in combination with fuses.
Physical robustness is a core evaluation dimension. Breakers endure operating cycles under heavy electrical loads. Vibration testing simulates transport and industrial environments. Temperature rise limits at terminals prevent overheating. Dielectric properties are tested under high humidity to ensure insulation integrity over decades of use. You must select lubricants for the operating mechanism that will not dry out or attract dust over a twenty-year lifespan.
Raw materials dictate compliance success. Insulation and plastics face glow-wire testing under IEC 60695-2-12 for flammability. Materials must align with broader directives like RoHS and REACH. Using pre-certified UL yellow-card plastics streamlines IEC thermal and dielectric approvals. Traceability ensures consistent production quality. You must maintain detailed records of every batch of molding compound and every coil of copper wire. If a field failure occurs, you must be able to trace the exact material lot used in that specific breaker.
Manufacturers must compare different methodologies to achieve verifiable compliance. The route you choose impacts both budget and timeline. Conceptual trade-offs exist between speed, cost, and risk mitigation. You must decide whether to invest heavily upfront in internal capabilities or rely on external partners for validation.
Building in-house testing rigs requires significant capital expenditure. You need oscilloscopes, temperature rise stations, and cycle testing rigs. Outsourcing to accredited labs like DEKRA, TÜV, or Intertek shifts this to operational expenditure. In-house testing allows rapid iteration. Third-party labs provide undeniable market credibility. A hybrid approach often works best. Build basic thermal and mechanical test rigs in-house to catch obvious flaws. Rely on third-party labs for the final, high-power short-circuit testing that requires massive grid connections.
The CB scheme offers substantial ROI for global players. You pay a higher upfront cost for the initial certification. However, you generate long-term savings by avoiding localized re-testing in member countries. This unified approach drastically accelerates global market penetration. Instead of paying for separate tests in Europe, Asia, and South America, you leverage a single CB test report. You only pay minor administrative fees for national deviations.
Rushing to market risks catastrophic type-test failures. Adopting a slower, phased compliance validation approach protects your investment. Pre-compliance testing catches fatal design flaws early. Balancing these competing pressures requires strong engineering leadership and clear regulatory foresight. Do not let sales teams dictate engineering timelines. A failed short-circuit test at a third-party lab will set your project back by six months and cost tens of thousands of dollars in re-testing fees.

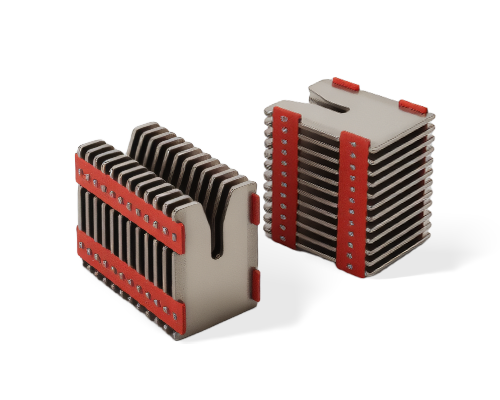

Manufacturers frequently face specific failure points during certification. Inadequate arc quenching often leads to complete housing destruction. Poor contact force causes excessive temperature rise at the terminals. Mechanical degradation of the spring mechanism fails endurance testing. Identifying these weaknesses early prevents late-stage project collapse. You must use high-speed cameras during internal testing to analyze arc behavior. If the arc does not move rapidly into the splitter plates, you must redesign the magnetic blowout circuit.
Uncertified sub-components invalidate the compliance of the final assembly. Low-quality bimetal strips or substandard copper alloys introduce massive risk. You must implement strict vendor compliance mandates. Rigorous incoming material inspection is mandatory. Do not let a cheap sub-component destroy a million-dollar certification effort. Require material test reports (MTRs) for every shipment of raw material. Perform random spectrographic analysis on incoming copper to verify purity.
Standards evolve constantly. Transition periods for new editions of IEC 60947-2 require careful navigation. Manufacturers must implement continuous regulatory monitoring. Sudden non-compliance halts production and shipping. Stay engaged with standard committees to anticipate upcoming technical shifts. Assign a dedicated compliance engineer to track draft standards. When a new edition is published, perform an immediate gap analysis against your current product portfolio.
To maintain structural reliability and electrical precision under these strict performance vectors, top-tier brands lean heavily on verified production experts. Partnering with professional electrical engineering OEMs like Wenzhou Zhonghui Electric enables component teams to easily integrate an Advanced Molded Case Circuit Breaker - HAIPART configuration into their product distribution. Their automated manufacturing centers execute rigorous short-circuit stress tests, precise magnetic calibrations, and full material batch tracking, systematically absorbing compliance friction so your final distribution remains profitable, safe, and fully certified across all major global grids.
Conduct a comprehensive internal gap analysis of your current R&D pipeline against the latest IEC editions.
Consult with a dedicated compliance engineer to map applicable IEC standards for your specific component categories.
Request a pre-compliance audit from an accredited laboratory for high-risk components before finalizing the design.
Audit your supply chain to ensure all sub-components meet baseline material traceability requirements.
A: IEC 60947-2 applies to industrial environments operated by instructed personnel, handling higher voltages and complex calibration curves. IEC 60898 applies to residential settings for uninstructed users, focusing on maintenance-free safety and lower breaking capacities.
A: While IEC standards are technically voluntary, national laws, regional standards like EN, and directives like the EU's Low Voltage Directive effectively mandate them for market entry and legal compliance.
A: Icu is the Ultimate Short-Circuit Breaking Capacity. Ics is the Service Short-Circuit Breaking Capacity. Icw is the Short-time Withstand Current, crucial for system selectivity.
A: Annex P of IEC 60947-2 covers specific test requirements for DC-rated circuit breakers. It addresses the unique challenges of DC arc quenching in high-demand solar and EV applications.
A: Category B breakers possess a short-time withstand current (Icw) rating, allowing time-graded selectivity to isolate faults. Category A breakers lack this delay and trip instantaneously under short-circuit conditions.
A: Certification typically ranges from several months to over a year. Timelines depend heavily on laboratory availability, the complexity of test sequences, and whether the device fails and requires redesign.
A: No. While there is some harmonization, UL and IEC are distinct standards. UL certification does not automatically grant IEC compliance, though manufacturers can design UL/IEC dual-certified devices.
