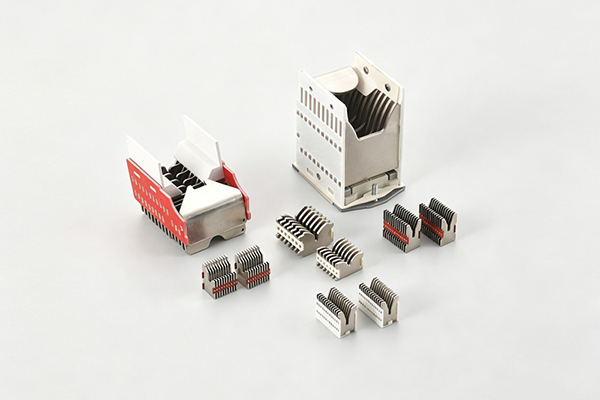

Function of the Arc Chute (Arc Chamber): Rapidly cool, split, and extinguish the electric arc, preventing external flashover and avoiding continuous contact erosion.
A compromised arc chute directly leads to reduced breaking capacity, fire hazards, and phase-to-phase short circuits. Below is a 3-tier inspection standard (Visual, Operational, and Associated Components) designed to be integrated directly into your facility's O&M (Operation & Maintenance) SOPs.
This is the most common and immediate method during de-energized maintenance.

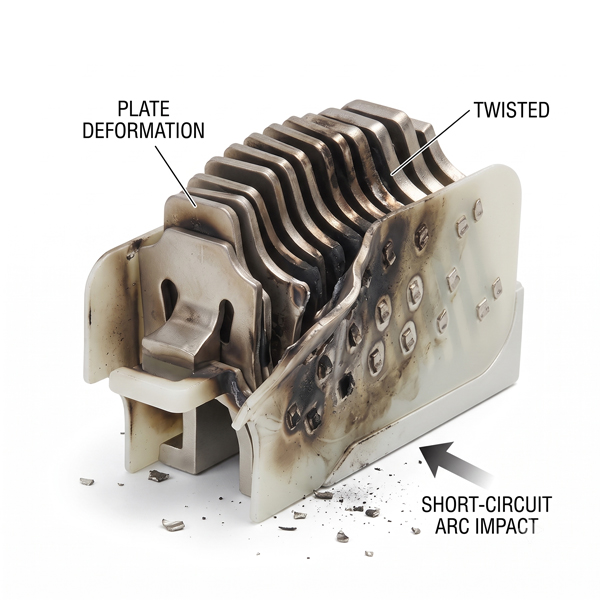

Deformed, Twisted, Cracked, or Missing Splitter Plates: The electrodynamic force of a short-circuit arc can bend splitter plates. Deformed plates disrupt the arc-cooling channel, resulting in arc interruption failure.
Severe Melting, Perforation, or Metal Fusion on Plates: When arc erosion pierces holes through the splitter plates, the chute loses its ability to segment the arc, causing violent re-arcing during subsequent trips.
Cracked, Carbonized, or Burned-Through Outer Shells: Carbonization degrades the dielectric strength of the arc chamber wall, leading to catastrophic phase-to-ground or phase-to-phase flashovers.
Irremovable Metal Slag/Bead Bridging: Copper and silver splatter accumulated between the splitter plates form conductive paths, causing instant short circuits upon re-closure.
Damaged or Carbonized Arc Runners & Insulating Baffles: Arc runners guide the arc into the splitter stack. If damaged, the arc lingers on the main contacts, rapidly burning them out.
Light surface discoloration or minor carbon dust accumulation, provided the splitter plates are flat/intact and the casing shows no cracks or deep carbon tracking.
Maintenance Protocol: Clean with dry compressed air. Strictly avoid using hard tools or sandpaper on insulating components, as abrasive cleaning destroys the dielectric coating.
If any of the following occur, open the cover immediately for internal inspection—arc chute damage is highly probable:
Post-Short-Circuit Interruption: The MCCB has interrupted one or more high-level short-circuit faults. Note: Even if the exterior looks intact after breaking heavy fault currents, hidden thermal and mechanical degradation occurs inside.
Sparks/Smoke During Tripping: Visible sparks, arc flash, or heavy smoke escaping from the breaker terminals during opening or tripping.
Abnormal Noise or Arcing Upon Reclosing: Buzzing, arcing sounds, or mechanical resistance when attempting to reclose after a fault trip.
Frequent Nuisance Tripping: The breaker trips repeatedly on the same circuit (after ruling out external load faults), suggesting poor arc extinction and arc re-ignition.
Industry Standard Practice: Most OEM manuals require mandatory inspection—and in many high-voltage DC/AC cases, mandatory replacement—of the arc chute assembly after breaking maximum rated short-circuit currents ($I_{cu}$).
Arc chutes and breaker contacts operate as an integrated system and must be evaluated together:
Welded or Heavily Pitted Main Contacts: If contacts show severe copper erosion or metal welding, the arc lingered for an unsafe duration. The arc chute has likely suffered concurrent thermal damage and must be replaced along with the contacts.
Burned-Through Internal Shell Insulation: Never attempt to clean deep carbon paths and reuse the shell. Dielectric breakdown risk remains critically high.

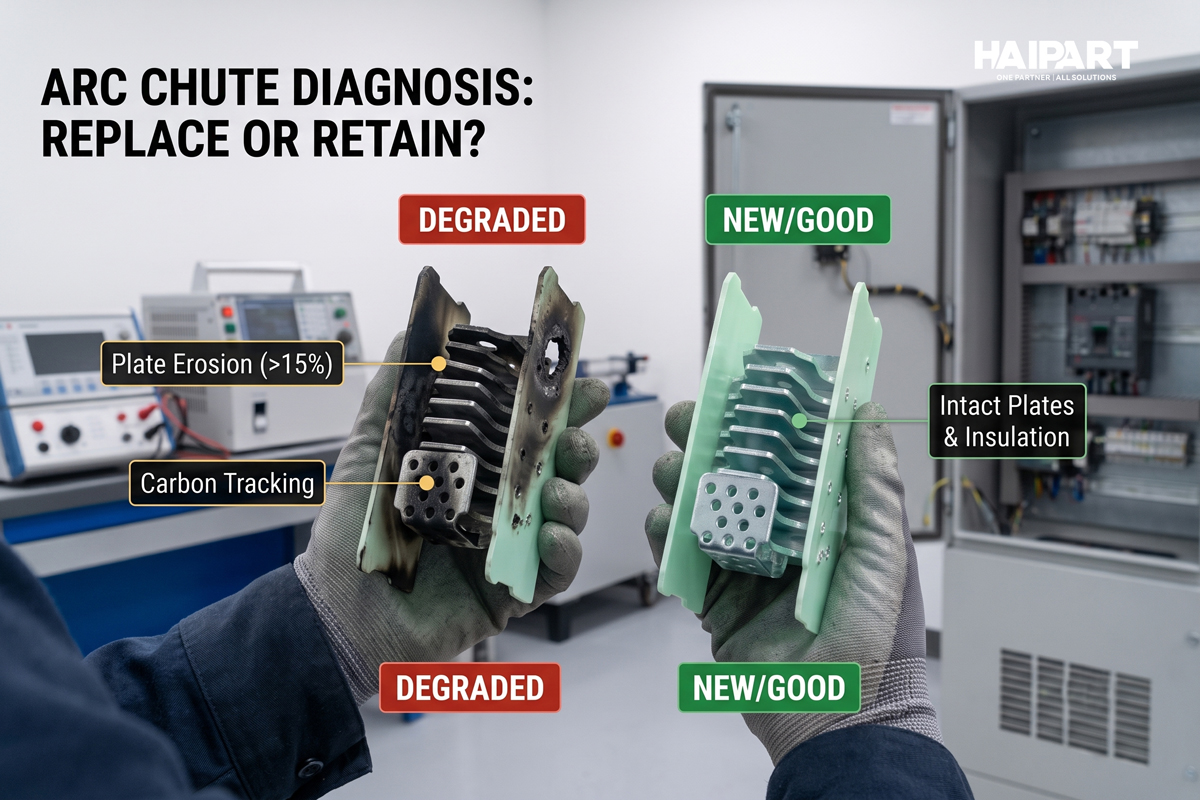

Retire and replace the arc chute assembly immediately if you observe:
Cracks, perforations, or continuous carbon tracking across the outer housing.
Any broken, deformed, or melted splitter plates.
Metal splatter bridging plates that cannot be cleared completely.
❌ Misconception 1: "It's just blackened, blowing it off is enough for long-term use."
Fact: Light dust can be blown off, but deep carbonization causes permanent dielectric degradation. It cannot be restored.
❌ Misconception 2: "Arc chutes can be patched or glued with insulation tape."
Fact: The instantaneous heat of an electric arc (exceeding several thousand degrees Celsius) will instantly vaporize adhesives, causing severe fire hazards. Field repairs are strictly prohibited.
✅ Standard Operating Procedure:
The arc chute is a single-use safety-critical component. Once damaged, replace it only with original factory-certified spare parts (OEM) matching the exact model frame and breaking capacity rating. Interchanging arc chutes across different frame sizes or series is strictly forbidden.
Q1: How often should MCCB arc chutes be inspected or replaced?
A: Arc chutes should undergo visual and insulation inspection during routine electrical maintenance (typically every 12 to 24 months). However, immediate replacement is required if the MCCB has interrupted a high-level short-circuit fault ($I_{cu}$) or if visual inspection reveals deformed splitter plates, cracked insulating shells, or irremovable metallic splatter.
Q2: Can I clean and reuse a blackened or carbonized arc chute?
A: You can only clean arc chutes with light surface carbon dust using dry compressed air. If the housing exhibits deep carbonization, tracking, or burnt holes, the dielectric strength of the material is permanently degraded. In such cases, cleaning is insufficient, and the unit must be replaced immediately to prevent catastrophic flashovers.
Q3: Can I repair a damaged arc chute using insulating tape or epoxy patch materials?
A: No, field repairs are strictly prohibited. Electric arcs generate instantaneous temperatures exceeding several thousand degrees Celsius, which rapidly vaporize ad-hoc adhesives and patching materials, causing secondary fires or severe short circuits. Damaged arc chutes must always be replaced with OEM-certified original spare parts matching the exact frame size and breaking rating.
