HAIPART | IEC 61009-1 Certified RCCB Manufacturer in China
Since 2019, HAIPART delivers Type AC/Type A RCCB devices with thermal-magnetic tripping for global electrical safety. Our RCCBs feature:
✅ Instant earth leakage detection (6mA-300mA sensitivity).
✅ 300mA high-sensitivity models for industrial fault protection.
✅ 2 Pole, 3 Pole, and 3P+N RCCB configurations.
✅ 30mA sensitivity protection for residential circuits.
✅ 10kA breaking capacity for commercial distribution panels.
✅ RCBO integration support (combined overcurrent + leakage protection).
Certifications: CE, CB, KEMA, CCC, RoHS, IEC 61009-1

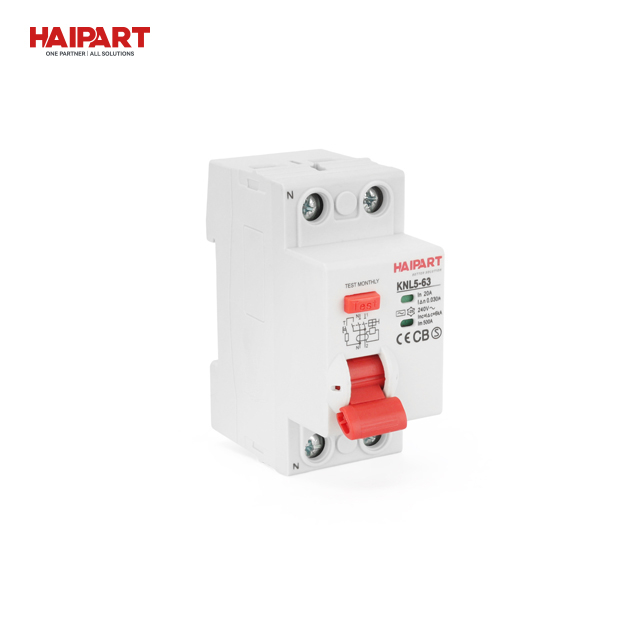

Poles: 1P+N (2 Pole RCCB)
Rated Current: 40A
Sensitivity: 30mA (Type AC)
Breaking Capacity: 6kA
Protection: Earth leakage only
Ideal for Single-Phase Residential Load Centers Protection. Orange handle with test button.

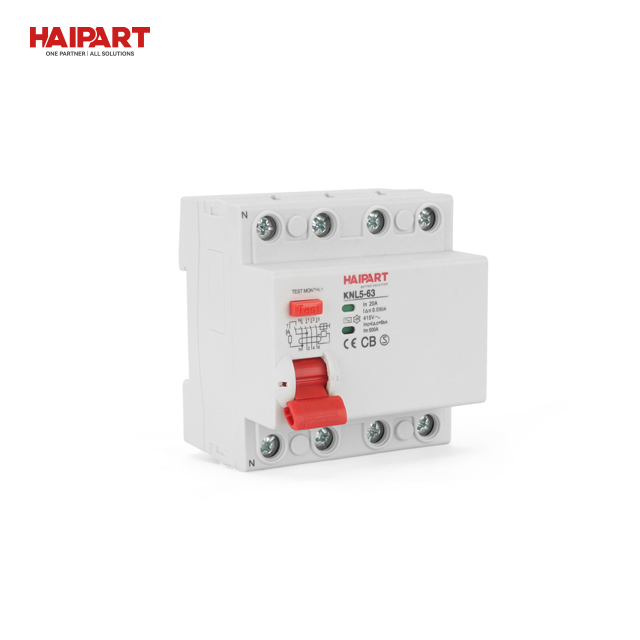

Poles: 3P+N (3 Phase RCCB)
Rated Current: 20A
Sensitivity: 100mA (Type A)
Breaking Capacity: 10kA
Standards: IEC 61009-1
Commercial/Industrial Distribution Panel Protection (IP40 enclosure). Red handle variant.
| Model | Poles | Current | Sensitivity | Breaking Capacity | Certifications |
|---|---|---|---|---|---|
| HAI-RCCB-1PN40 | 1P+N (Single Phase) | 40A | 30mA | 6kA | CE, CB |
| HAI-RCCB-3PN20 | 3P+N (3 Phase RCCB) | 20A | 100mA | 10kA | CE, KEMA |
✅ 3P+N RCCB with DC fault detection (Compatible with solar systems).
✅ RCCB Fuse Coordination for cascading protection.
✅ Custom tripping curves (Type AC/A).
✅ Short-circuit protection coordination with MCBs.
✅ 15+ years in residual current operated circuit breaker manufacturing.
Residential: 30mA sensitivity for socket circuits (IEC 61009-1)
Commercial: 100mA RCCB for distribution boards (3P+N config)
Industrial: 300mA RCCB with 10kA breaking capacity
While RCCBs protect against earth leakage currents, RCBOs combine leakage protection with overcurrent/short-circuit protection in one device.
Residential: 30mA | Commercial: 100-300mA | Industrial: 300mA-1A. View selection guide
✅ Operating Principle:
RCCBs use a core balance magnetic ring to monitor current flow in live (L) and neutral (N) wires. Under normal conditions, L and N currents are equal. If leakage occurs (e.g., human contact), current imbalance activates the tripping mechanism. When difference exceeds sensitivity (e.g., 30mA), it cuts power in 0.1 seconds.
Key Component: Summation Current Transformer
⚡ Core Definition:
An RCCB is a life-saving electrical device that detects earth leakage currents caused by:
• Insulation faults • Human electric shock risks
It does NOT provide overcurrent protection (requires pairing with MCB). Main parts:
Zero-sequence CT (detects imbalance)
Trip solenoid
Test button (simulates 10mA-30mA leakage)
Step-by-Step Process:
Phase & neutral wires pass through magnetic core
During leakage, current imbalance creates magnetic flux
Induced current triggers trip mechanism
Contacts open within 30ms (faster than heartbeat)
✅ Test Feature: Pressing test button creates artificial leakage to verify function.
Evolution of Protection:
| Parameter | Voltage-ELCB (Obsolete) | Current-ELCB (RCCB) |
|---|---|---|
| Detection Method | Earth wire voltage | L/N current imbalance |
| Sensitivity | 500mA-1A | 30mA-300mA |
| Safety | Fails if earth wire broken | Works without earth wire |
| Modern Compliance | Not IEC 61009-1 | IEC 61009-1 Certified |
Critical Note:
Modern "ELCB" refers to RCCB in most regions. True voltage-based ELCBs are discontinued due to safety flaws.
