Stop Paying the "Assembly Tax": How Integrated Magnetic Trip Modules Drive a 30% Efficiency Gain

In the competitive landscape of the electrical manufacturing industry, the push for leaner production is relentless. For manufacturers of MCB (Miniature Circuit Breakers) and MCCB (Molded Case Circuit Breakers), the search for efficiency often focuses on the assembly line. However, a significant and often overlooked cost—the "Assembly Tax"—is hidden within the procurement strategy of core components. Nowhere is this more apparent than in the sourcing of the Magnetic Trip Unit. While buying loose components may seem cost-effective on a unit-price basis, the cumulative operational friction often erodes the bottom line.

The Real Cost of Loose Magnetic Trip Components

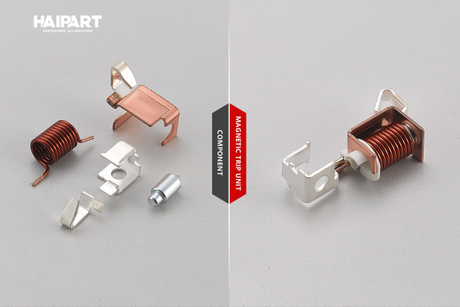

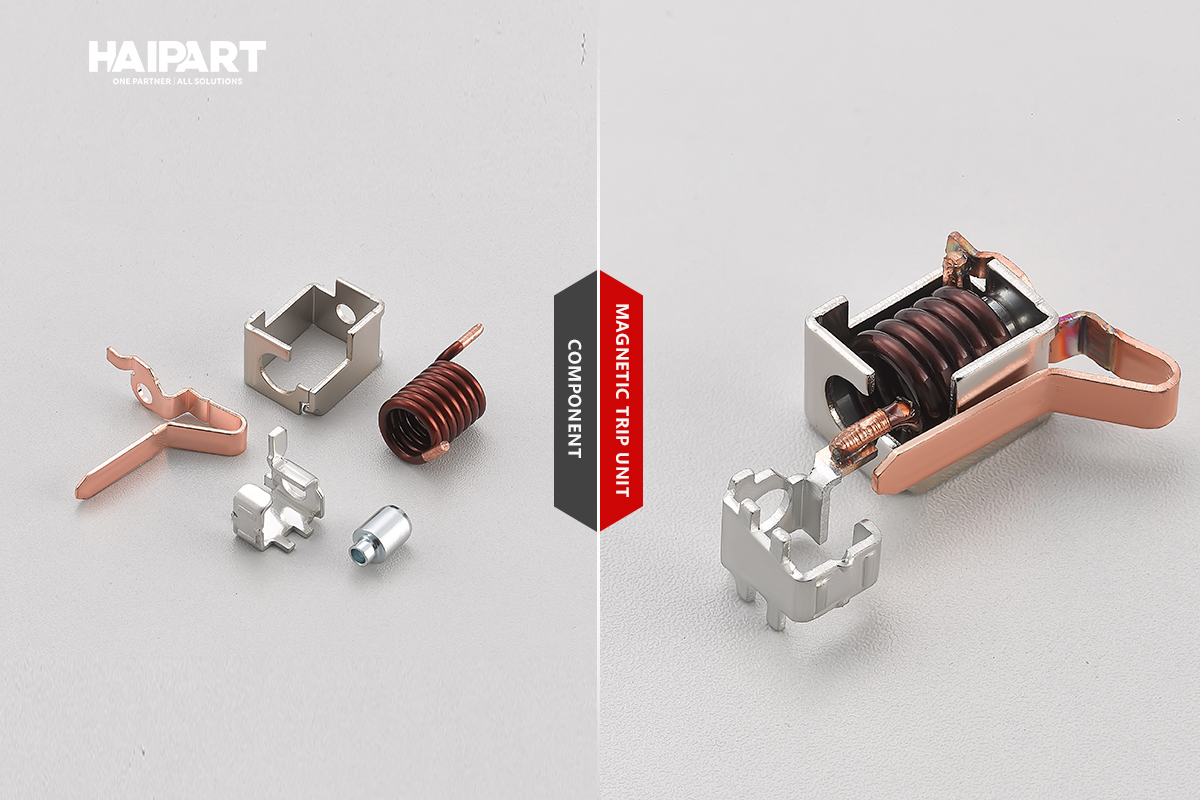

Traditionally, a Magnetic Trip function is treated as a collection of separate parts: the coil, the magnetic yoke, the armature, and various springs. Managing these as 8 or more individual SKUs creates a heavy administrative and logistical burden. This "Assembly Tax" manifests in three critical areas:

1. Labor Intensity: Each Magnetic Trip Unit requires precise manual sorting, positioning, and welding of small, delicate parts. These repetitive, high-precision tasks are "labor sinks" that slow down the entire production line.

2. Quality Volatility: Every manual touchpoint in the Magnetic Trip assembly process is a potential point of failure. Inconsistent welding or slight mechanical misalignments can lead to performance deviations, increasing scrap rates and rework costs.

3. Logistical Complexity: Managing a multitude of tiny parts increases the risk of stockouts and inventory imbalances. A shortage of a single spring can halt the production of thousands of finished circuit breakers.

The HAIPART Solution: The Integrated Magnetic Trip Module

At HAIPART, we believe that the most efficient assembly is the one you don't have to do. We have pioneered the transition from loose component sourcing to the delivery of pre-integrated Magnetic Trip Modules. By shifting the complex assembly and testing phase into our automated manufacturing facility, we allow our partners to receive a "Plug-and-Play" Magnetic Trip Unit that is ready for immediate installation into the breaker housing.

This modular approach is powered by our digital manufacturing ecosystem. Every Magnetic Trip Module is pre-assembled using CNC automated winding and high-precision welding, ensuring that the structural integrity and electromagnetic response are identical across millions of units.

Achieving the 30% Efficiency Breakthrough

The transition to integrated Magnetic Trip technology yields immediate, measurable results. Our partners typically report a 30% increase in overall assembly efficiency. This gain is achieved through:

• Process Consolidation: Moving from 5 or 6 complex manual steps to a single, streamlined installation of the Magnetic Trip Unit.

• Guaranteed Yields: Because every Magnetic Trip Module is 100% trip-tested before shipping, manufacturers can eliminate the station traditionally reserved for troubleshooting failed sub-assemblies.

• Supply Chain Lean Management: Shifting from 8 SKUs to 1 SKU simplifies the warehouse footprint and drastically reduces the administrative overhead of procurement and quality assurance.

Scaling Success in Global Markets

For global MCB and MCCB brands, the Magnetic Trip Unit is more than just a part—it is the heart of their safety promise. By partnering with a specialist who provides pre-validated, high-performance Magnetic Trip solutions, manufacturers can focus their internal resources on product innovation and market expansion rather than the minutiae of component welding.

Furthermore, as international standards for circuit protection become more rigorous, the consistent performance of a precision-engineered Magnetic Trip Module ensures that products pass stringent compliance tests on the first attempt, significantly accelerating time-to-market.

Conclusion: A Leaner Future for Electrical Manufacturing

The era of managing hundreds of loose parts for sub-assemblies is coming to an end. The future belongs to modularity and precision. By eliminating the "Assembly Tax" through integrated Magnetic Trip solutions, HAIPART is helping the world’s leading electrical brands build better, safer, and more profitable products. It is time to stop assembling and start integrating.
