Introduction
The Heart of the Issue: The Arc Chamber
Point 1: Material Purity & Thermal Shock
Point 2: Geometric Precision & Plate Alignment (几何精度)
Point 3: Automated Assembly & Quality Control
Conclusion & Strategic Partnership
In the competitive landscape of electrical engineering, there is a recurring nightmare for quality control managers: the "Lab-to-Factory Gap." Your R&D team spends months perfecting a Miniature Circuit Breaker (MCB) or a Molded Case Circuit Breaker (MCCB) design. In the laboratory, the prototypes perform flawlessly, quenching arcs with surgical precision and comfortably passing Icu/Ics (Ultimate/Service Breaking Capacity) tests. However, once the production line ramps up to 10,000 units, the data starts to fluctuate. Some units fail under stress, leading to costly recalls or, worse, safety risks in the field.
The root cause is rarely the overall design. Instead, the failure lies in the invisible factors of the arc chamber, the critical component often referred to as the "heart" of the circuit breaker. At HAIPART, we have spent years analyzing these fluctuations, and the data is clear: consistency in arc quenching technology is what separates a world-class brand from a generic one.

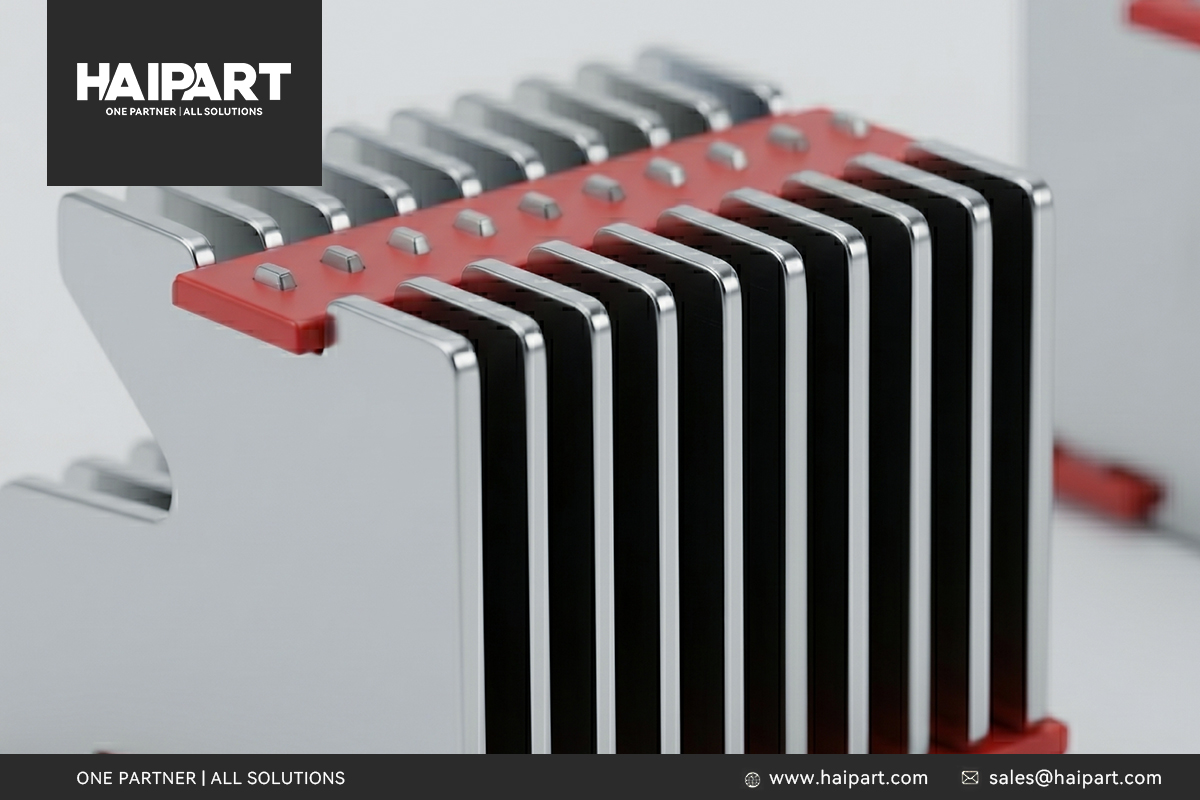

When a short circuit occurs, the arc chamber is subjected to near-instantaneous thermal shock. Temperatures within the arc chute can soar, putting immense pressure on the metal plates. If the material purity of the quenching plates is compromised, the metal may warp or erode prematurely.
Using high-grade alloys with specialized coatings is not just a luxury—it is a necessity. Superior material selection ensures that the breaking capacity of the breaker remains stable even after multiple operations. At HAIPART, our sourcing protocols for raw materials are designed to eliminate trace impurities that lead to inconsistent thermal conductivity, ensuring that every customized arc chamber we ship is as resilient as the lab prototype.

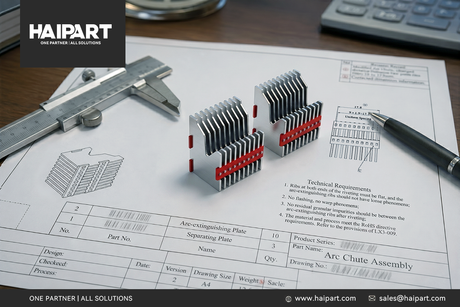

In low-voltage circuit protection, the geometry of the arc chute is a game of millimeters. The spacing between quenching plates determines how efficiently the arc is split and cooled. A misalignment of even 0.1mm can alter the magnetic field and the gas flow within the chamber, delaying the quenching process.
This "precision gap" is the primary reason for Icu/Ics performance fluctuations. While a skilled technician can hand-assemble a perfect prototype, maintaining that geometric precision across a bulk shipment requires advanced engineering. HAIPART utilizes high-precision molds and automated stamping processes to ensure that plate alignment is uniform across every unit. This level of precision engineering ensures that the aerodynamic flow for arc movement is optimized, providing a predictable and safe breaking performance.

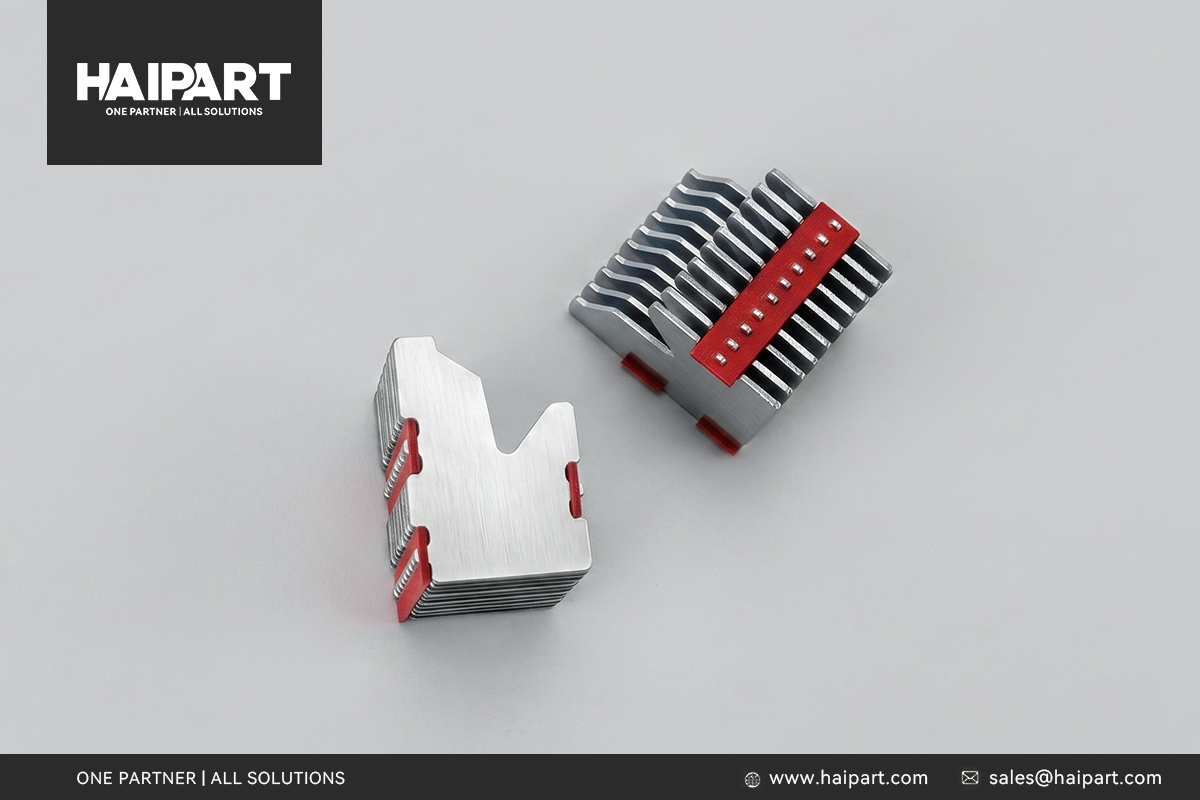

Designing a high-performance arc chamber is only half the battle. The assembly process—how the plates sit within the casing and how they interface with the breaker body—is the final pillar of quality. Stress-free fitting is essential. If the plates are forced into place, the resulting structural tension can lead to micro-fractures during a high-fault event.
By integrating automated assembly and rigorous Quality Control (QC), we remove the variable of human error. Our production lines are calibrated to deliver high-consistency components that fit perfectly into your breaker housings. This seamless integration is what allows our partners to maintain high yield rates on their assembly lines while guaranteeing the safety of the end-user.
In an industry where safety and reliability are paramount, you cannot afford to overlook the "invisible factors." The breaking capacity of your MCB or MCCB is only as reliable as its internal components. By focusing on material integrity, geometric precision, and assembly consistency, HAIPART provides the "Supply Chain Insurance" that modern manufacturers need.
Don’t let manufacturing variances compromise your primary product. Elevate your brand by choosing a partner that understands that in the world of electricity, precision is the only path to safety.
