Introduction
The evolution of low-voltage electrical protection systems.
The "Assembly Tax": Defining the hidden costs in traditional manufacturing.
The Hidden Friction of Loose Component Sourcing
Inventory and SKU management complexity for Magnetic Trip parts.
The volatility of manual assembly and its impact on brand reputation.
The Modular Revolution: Integrated Magnetic Trip Units
What defines a "Plug-and-Play" Magnetic Trip Module.
The engineering behind HAIPART’s automated assembly ecosystem.
Quantifying Success: The 30% Efficiency Gain
Streamlining the MCB assembly line through pre-integrated technology.
The role of 100% pre-delivery functional testing.
Strategic Benefits for Global Electrical Brands
Achieving "Zero-Defect" entry for international markets (IEC/UL compliance).
Accelerating the development cycle for next-generation MCCB products.
Conclusion
The shift toward smarter, modular electrical components.
Call to Action: Partnering with HAIPART for the future.
In the rapidly advancing landscape of global power distribution, the demand for higher reliability and faster production cycles has never been greater. For manufacturers of MCB (Miniature Circuit Breakers) and MCCB (Molded Case Circuit Breakers), the traditional method of sourcing loose components is increasingly becoming a bottleneck. At the heart of this challenge is the Magnetic Trip Unit, a critical sub-assembly that often carries a heavy, hidden "Assembly Tax". By shifting from individual parts to integrated Magnetic Trip Modules, industry leaders are reclaiming their margins and redefining their production standards.
Traditionally, a Magnetic Trip function was viewed as a collection of separate items: a coil, a yoke, an armature, and a variety of precision springs. Managing these as 8 or more individual SKUs creates a ripple effect of friction throughout the factory.
First, the labor intensity is staggering. Each Magnetic Trip Unit requires skilled workers to perform precise manual sorting, positioning, and welding. These repetitive tasks are not only slow but are "labor sinks" that consume resources better spent on final product innovation. Second, the quality risk is constant. Every manual touchpoint in a Magnetic Trip assembly is a potential point for human error, leading to inconsistent trip current curves and increased scrap rates. Finally, the inventory bloat of managing hundreds of thousands of tiny parts increases the complexity of supply chain coordination.
At HAIPART, we believe that the most efficient assembly line is one where the most complex tasks are already completed. Our solution is the Integrated Magnetic Trip Module—a fully assembled, pre-validated unit that drops directly into the breaker housing.

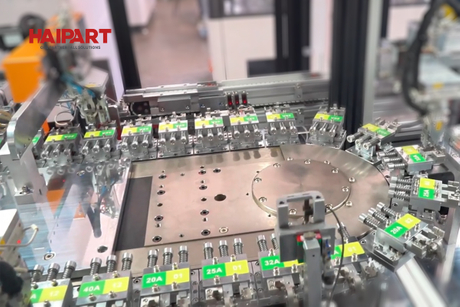

This modular approach is supported by our advanced, fully automated production lines. By utilizing CNC automated winding and high-precision welding systems, we eliminate the variables of human fatigue and inconsistency. Every Magnetic Trip Unit produced at our facility is a digital twin of the next, ensuring that the electromagnetic field and mechanical response are perfectly uniform across millions of units. This level of precision is virtually impossible to achieve through manual or semi-automatic methods.
The transition to HAIPART’s Magnetic Trip technology provides immediate, measurable results. Our partners typically report a 30% increase in overall assembly efficiency. This is not a vague estimate; it is the result of direct process consolidation. By shifting from 5 or 6 complex manual assembly steps to a single installation of a pre-integrated Magnetic Trip Module, manufacturers can drastically reduce their overhead.
Furthermore, the "Guaranteed Yield" of our modules removes the need for downstream troubleshooting. Because every Magnetic Trip Unit undergoes 100% simulated trip testing at our facility before shipment, our customers can eliminate the quality bottleneck traditionally found at the end of their own production lines.
For a modern MCB or MCCB brand, the Magnetic Trip Unit is more than just a part—it is the core of their safety promise to the end-user. As international standards like IEC 60947 and UL 489 become more stringent, the need for a "Zero-Defect" component supplier becomes a strategic necessity for market entry in Europe, North America, and beyond.
By partnering with HAIPART, manufacturers gain more than just a supplier; they gain a partner capable of accelerating their time-to-market. Our modular Magnetic Trip solutions allow R&D teams to skip the tedious phase of component打样 (sampling) and focus on the overall system architecture of their next-generation protection devices.
The era of managing hundreds of loose components for sub-assemblies is coming to a close. The future of the low-voltage electrical industry belongs to modularity, precision, and digital consistency. By eliminating the "Assembly Tax" through integrated Magnetic Trip solutions, HAIPART is helping the world’s leading brands build safer, more reliable, and more profitable products. Your next-generation assembly line starts here.
