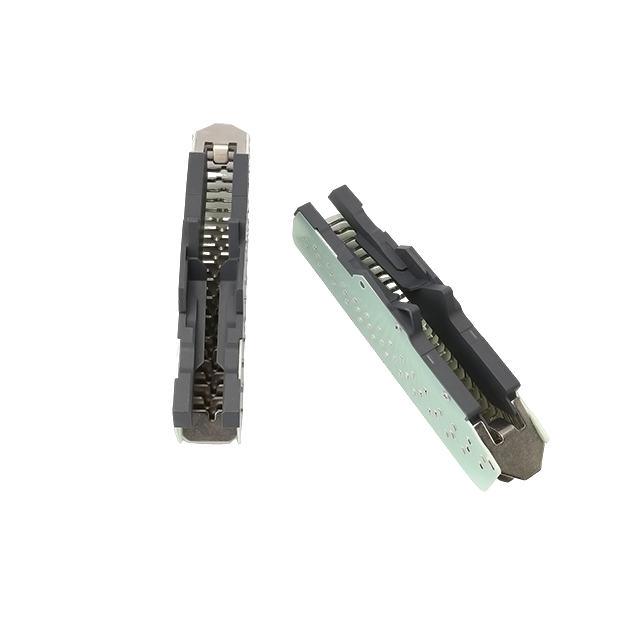

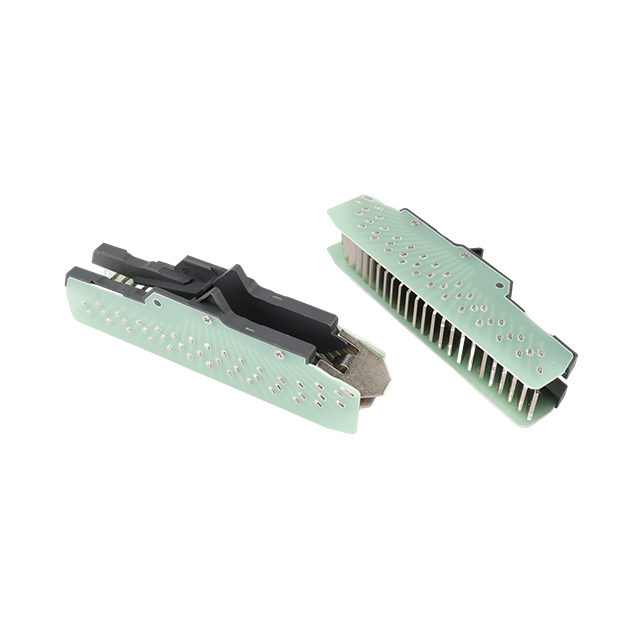

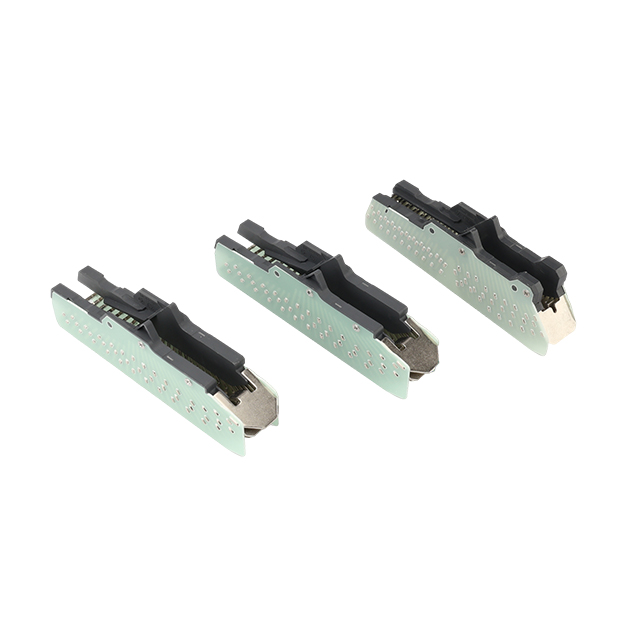

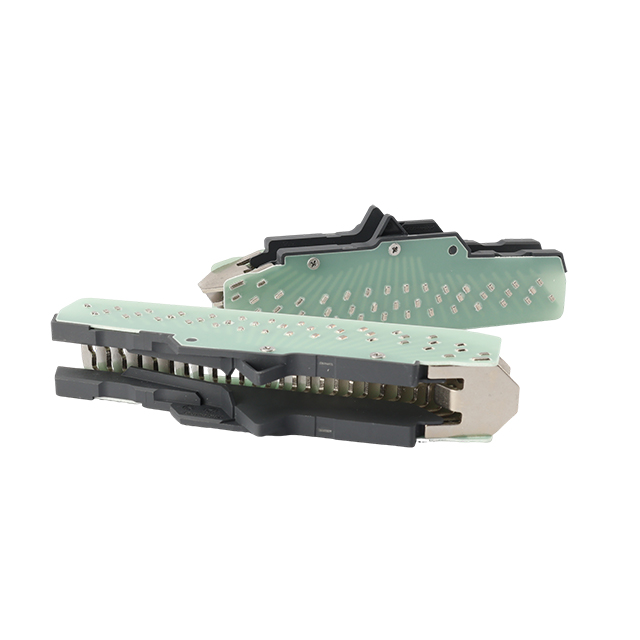

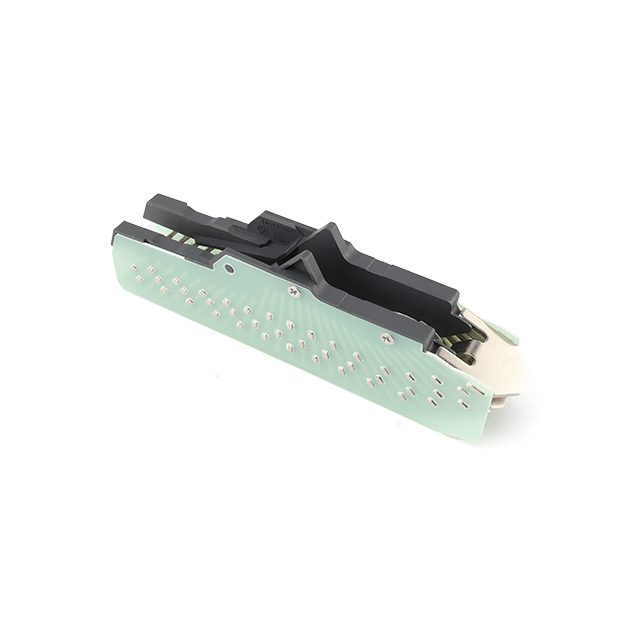

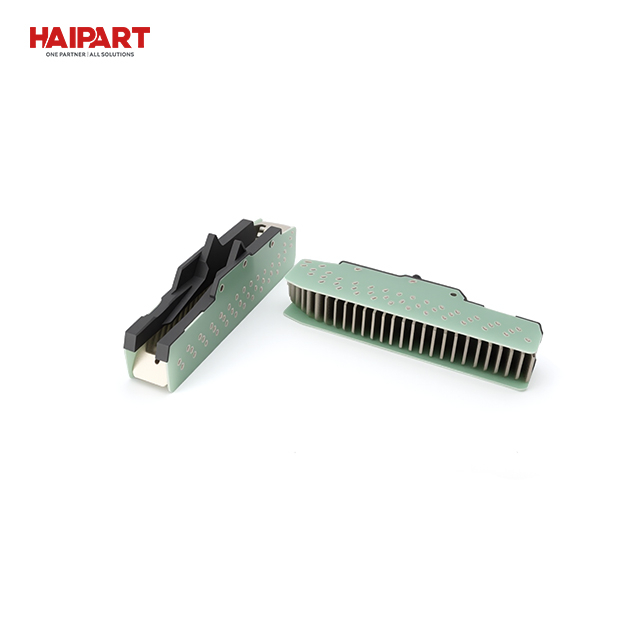

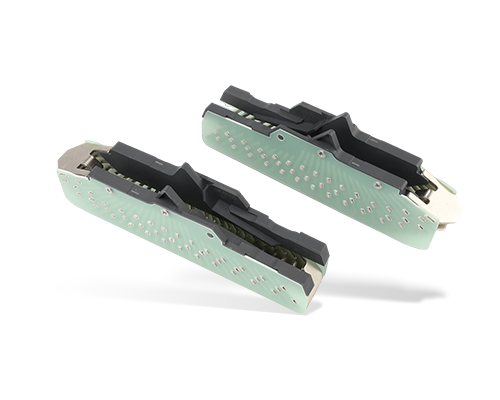

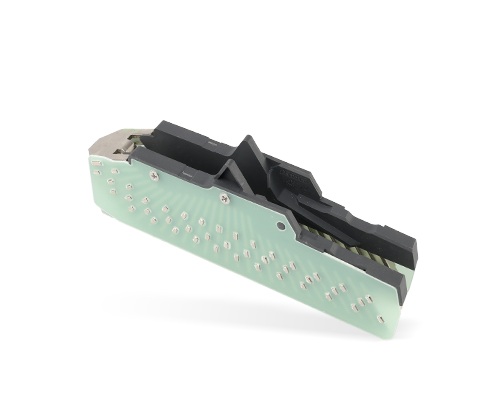

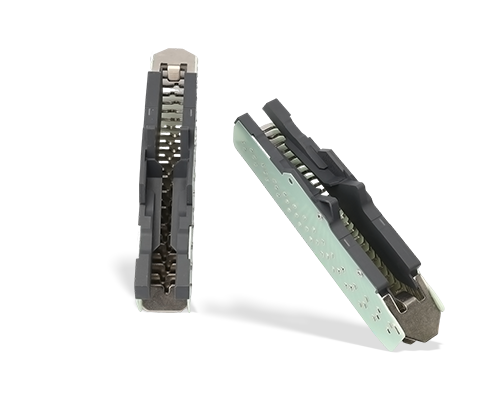

Arc Chamber
HAIPART
3011131
From raw material screening to finished product delivery, each arc chamber undergoes rigorous process control. Our team of experienced technicians maintains quality control with millimeter-level precision, ensuring that "Made in China" products earn global respect in the field of power safety.
Applications:
Suitable for new energy distribution cabinets, rail transit traction systems, and other applications.
Q1:How to match the number of poles of the arc chamber to the circuit breaker?
A1:1P/2P arc chambers are suitable for lighting and socket circuits; 3P/4P chambers are suitable for three-phase electrical equipment, with a breaking capacity of ≥6kA.
Q2:What are the common signs of damage to the arc chamber?
A2:The circuit breaker tripped;Cracks or burn marks appeared on the outer casing of the arc-extinguishing chamber.
Q3:What is the function of the arc chamber?
A3:The main function of the arc chamber is to quickly extinguish the arc when the circuit is interrupted, preventing equipment damage and circuit failure.
Q4:How to select the arc chamber size based on breaking capacity?
A4:For 6kA (residential/small commercial), select a narrow size of ≤60mm; for 10kA (industrial), select a wide size of ≥80mm.
Q5:How to choose the type of arc chamber?
A5:Based on the arc extinguishing principle, the following can be selected: grid plate, magnetic blowout, or narrow-slot arc chamber; Based on the circuit type, AC circuits should prioritize grid plate/narrow-slot, while DC circuits must use magnetic blowout or staggered grid plate.
Q6:What are the prices of your products?
A6:Product prices vary depending on the model, specifications, and quantity. Please consult the sales team or check the official website for details.
Q7:What after-sales services do you provide?
A7:We provide comprehensive after-sales services, including product consultation, technical guidance, installation and commissioning, repair and replacement, and warranty.
Q8:How can I contact your technical support?
A8:Technical support can be contacted through the official website, customer service hotline, or email.
Q9:Do your products have quality certifications?
A9:Our products have passed international and domestic quality certifications such as ISO 9001 and CE.
Q10:Do your products support customization?
A10:We support customized arc chambers. Provide us with detailed technical parameters and requirements, and we will provide you with a customized solution.
