You now have circuit breaker protection that is safer and more reliable. Modern trip units use smart sensors and microchips to make monitoring better. You get real-time monitoring, quick alerts, and better checking of electrical circuits. Better monitoring means less downtime and lower maintenance costs.
Modern trip units have smart sensors and microchips. They watch things in real time. This new technology helps stop machines from being off for long. It also makes fixing things cost less.
HAIPART trip units let you change settings for overload and short-circuit protection. You can make these settings fit your own needs. This keeps things safe for you.
Smart circuit breakers help with predictive maintenance. They find problems before they stop your machines. This saves money and helps your equipment last longer.

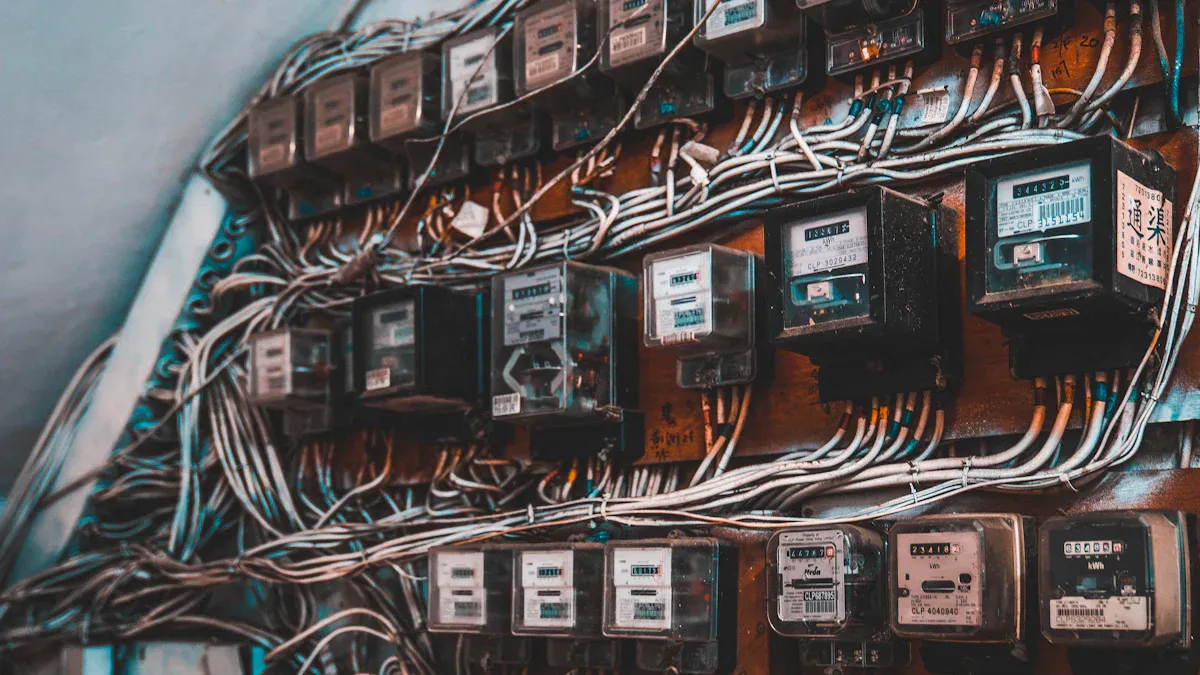

The first circuit breakers had many problems. They often used fuses to protect circuits. Fuses could only be used one time. After an overload or short-circuit, you had to replace them. This made maintenance harder and caused long power outages. The table below lists some big problems with fuses:
| Limitation of Fuses | Implication |
|---|---|
| Single-use nature | Raises maintenance costs and causes long power outages, which hurts how factories work. |
| Limited breaking capacity | Might not stop big short-circuit currents fast, which can be unsafe and break equipment. |
Early molded case circuit breakers did not always work the same way. Sometimes, the trip delay was between 50 and 300 seconds. You could not always count on these breakers to protect circuits every time. This put your electrical system at risk during overloads or short-circuits.
You might see signs when a breaker does not work right. These signs are tripping at random times, burn marks, strange noises, heat, and trouble resetting the breaker. Other problems come from worn-out parts, contacts wearing down, dust, moisture, old insulation, and skipped maintenance. All these things made early circuit breaker protection not very reliable.
You need good circuit protection to keep people and equipment safe. Over time, new rules made circuit breakers safer. For example, UL 489 and UL 489I set rules for how breakers should work. These rules help you trust that your breaker will stop overloads and short-circuits.
Engineers made new technology to make circuit breakers better. Air-magnetic breakers took the place of oil types, making it safer to stop arcs. Vacuum interrupters and SF₆ gas breakers helped with high voltage and short-circuits. Miniature circuit breakers used both thermal and magnetic trips, so you could reset them instead of changing fuses. Residual current devices gave extra safety by stopping electric shocks and fires.
Now, you have better circuit breaker protection because of these changes. Your electrical systems are safer, and you can trust your breaker to act fast during overloads or short-circuits.
Trip units inside a circuit breaker have changed a lot. At first, most breakers used thermal trip units. These units had a bimetallic strip that bent when it got hot. Too much current made the strip bend. When it bent enough, the breaker would trip and stop electricity. This design gave basic protection against overloads. It worked when wires got too hot. But it did not always stop short-circuit faults fast.
Later, engineers made magnetic trip units. These used an electromagnet to sense sudden surges of current. If a short-circuit happened, the magnet pulled a lever. The breaker tripped almost right away. This gave better protection from dangerous faults. But you had to set these by hand. They could not change for different loads or conditions.
The biggest change was electronic trip units. These use sensors and microchips to watch current and voltage all the time. You can set trip points for overload and short-circuit protection more exactly. Electronic trip units let you change settings for each circuit. You get the right protection for every part of your system. You also get features like ground fault detection, data logging, and remote monitoring. This technology helps you find problems before they cause damage. Your circuit protection is now smarter and more reliable.
Tip: Electronic trip units can send alerts to your phone or computer. You can fix problems faster and avoid long downtime.
You can see how circuit breaker protection got better over time. Each step made electrical systems safer and easier to use.
| Milestone | Description |
|---|---|
| Transition from fuses to circuit breakers | This change meant you could use protection again and again. You could fix problems faster after faults. |
| Invention of the first modern miniature circuit breaker (MCB) | In 1924, Hugo Stotz and Heinrich Schachtner made the first MCB. This was a big step in circuit breaker technology. |
| Advancements in tripping mechanisms | Thermomagnetic tripping used both heat and magnets. It helped with different kinds of faults. |
| Development of smart circuit breakers | These breakers use data and physical systems together. Power management became active, not just passive. |
You get many benefits from these milestones:
Moving from fuses to circuit breakers means you do not need to replace parts after every fault. You just reset the breaker and power comes back.
The first miniature circuit breaker helped protect small circuits in homes and offices. Wiring is safer and there is less risk of fire.
Thermomagnetic trip units give two layers of protection. The thermal part works for overloads. The magnetic part works for short-circuits.
Electronic trip units, which started in the 1990s, let you set trip points and watch circuits closely. You can change them for different loads and see how your system works.
New arc extinguishing technology, like vacuum and SF6, helps you handle strong faults safely.
You also see new devices like the 30mA RCCB. This device protects you from electric shock and fire from earth leakage currents. It checks if the current is balanced in the circuit. If it finds a problem, it disconnects power. Its high sensitivity keeps you safe, even in wet places. Many RCCBs now test themselves, so you spend less time on maintenance.
| Key Milestone | Evidence of Effectiveness |
|---|---|
| Equipment Safety Protocols | These rules make sure everyone stays safe. They also help projects work better and last longer. |
| Routine Inspections and Maintenance | Checking things often helps find problems early. This lowers the risk of failures and makes equipment last longer. |
| Integration of Smart Systems | Smart systems watch things in real time and control them automatically. This makes everything safer and more efficient. |
| Sustainability and Energy Efficiency | These steps help the environment and save energy. They also meet rules and what customers want. |
| Future-Proofing Installations | These designs can change as technology changes. This keeps systems safe and working for a long time. |
Now, circuit protection is smarter, faster, and more reliable. Electronic trip units give you real-time data and control. You can stop problems, save money, and keep your electrical systems safe.
You want your circuit breaker to do more than just stop power. You need a device that gives you smart control and quick action. It should work well every time. HAIPART trip units give you these things with new technology. These trip units use both thermal and magnetic protection. This means you are safe from overloads and short circuits. You can change the trip settings to fit your needs. Other brands do not always let you do this.
Here is how HAIPART molded-case circuit breakers are different:
| Feature | HAIPART MCCBs | Other Brands |
|---|---|---|
| Trip Units | Thermal and Magnetic | Varies, often only one type |
| Adjustable Trip Settings | Yes | Limited or none |
| High Fault Current Handling | Yes | Varies |
| Trip Indicators | Yes | Not always available |
| Current Limiting Features | Yes | Not standard |
You get more than just simple protection. HAIPART trip units have a bimetallic strip to find overloads. They also have a magnetic trip for short circuits. The time-delay feature stops the breaker from tripping too soon. This keeps your equipment working, even when there are quick surges.
HAIPART uses the newest technology with modular designs. You can change parts for maintenance without turning off everything. The smart safety system gives you sound and light signals. This helps you find problems fast. V-shaped arc grooves help control arcs better. EMI suppression keeps your circuit safe from electrical noise.
You will see these new features in every HAIPART device:
A special metal layer makes the thermal response 40% faster.
The breaker works from -25°C to 60°C, so it protects in many places.
Fast cooling reset lets your device recover quickly after power loss.
Swiss CNC-made V-groove latch stops false trips and keeps your circuit safe.
New changes in how the breaker works give you electronic control. There are fewer moving parts. Adaptive control helps your breaker handle changes in temperature and voltage. Condition monitoring gives you real-time data. You can find problems before they get worse. These smart breakers make your system safer and more reliable.
When you use HAIPART trip units, you get more than just safety. You get a smart device that helps your system work better. The bimetallic strip inside finds when there is too much current. The time-delay feature makes sure the breaker only trips when needed. This stops shutdowns that are not needed.
The thermal-magnetic function gives two types of protection in one. The thermal part works for overloads. The magnetic part acts fast for short circuits. This means you are safe from all kinds of faults. Your molded-case circuit breakers become smarter and stronger.
HAIPART works hard to bring you new ideas. The modular design lets you fix your device without stopping everything. The smart safety system uses sound and light to show problems. V-shaped arc grooves and EMI suppression keep your circuit safe from noise and arc damage.
You can see how these features help in real life. One customer cut inspection time by 70% after using HAIPART trip units. They found a bad bushing weeks before it could cause a shutdown. This shows how smart breakers with new technology help you avoid big problems.
HAIPART trip units give you:
Strong protection for every circuit and device.
Smart features to help you watch and control your system.
New ideas that keep your breakers ahead.
Good performance in tough places.
Safety you can trust every day.
You can count on HAIPART to give you the technology and safety you need. These smart devices help keep your circuits safe, your equipment working, and your business running.

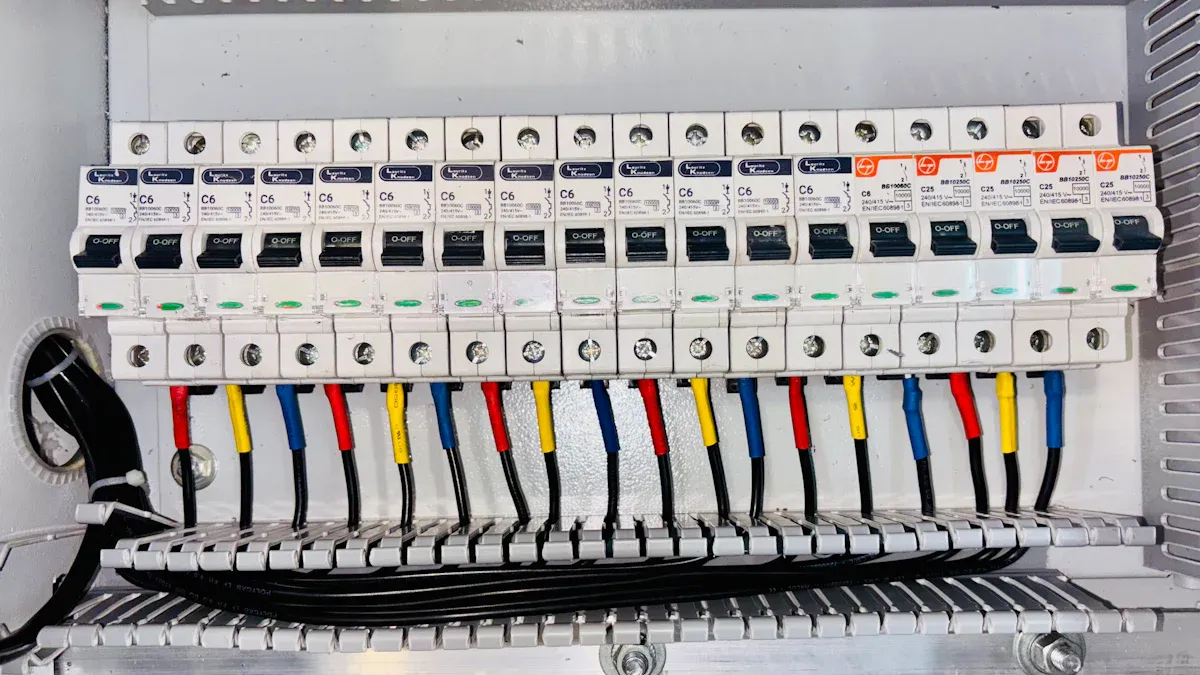

You need strong protection in every factory or plant. Smart circuit breakers with advanced trip units help keep everyone safe. These devices use smart sensors and digital tools to find dangers quickly. You do not have to touch live equipment because real-time monitoring gives you all the information you need. You can check power and load levels from far away. This lowers risk and keeps your team safe. Thermal monitoring finds problems that old checks might miss. Remote monitoring lets you watch your electrical system and find dangers without putting anyone at risk.
Industry rules say you should use advanced trip units for high current, heavy use, and tough places. You can trust these breakers to protect your power, even when fault currents are high or when you need special coordination. HAIPART trip units work well in many situations:
| Application Scenario | Key Features | Benefits |
|---|---|---|
| Industrial Equipment | Multi-strand winding, handles 10x current surge | Stable power, 12% less energy use |
| New Energy Systems | Custom electromagnetic matching | Fast response, steady performance for years |
You want your circuit breaker to save money and keep power on. Smart circuit breakers help you do both things. Predictive maintenance lets you fix problems before they stop your system. You get fewer emergency calls and lower costs. Your equipment lasts longer, so you save money on new parts. Smart technology turns data into helpful tips, making your maintenance planned, not just fixing things after they break.
Here are some key benefits:
Predictive maintenance stops problems before they shut down your power.
You get real-time data for better energy use.
Operators handle basic maintenance, which keeps your breaker working well.
| Benefit | Description |
|---|---|
| Reduced Downtime | Operators do simple maintenance, stopping problems early. |
| Improved Maintenance | Data-based schedules mean repairs happen on time. |
| Enhanced Equipment Protection | Smart circuit breakers protect sensitive devices from power swings. |
| Operational Efficiency | Built-in monitoring means faster action and fewer mistakes. |
Automatic switching and backup power keep your work going. You protect your equipment from power changes. You also use less energy, which saves money and helps the planet. With HAIPART trip units, you get strong protection, smart features, and real savings for your business.
You can see that trip units protect you better now. They also let you control your system more easily. Today’s circuit breakers have important features. These include overload protection and short circuit protection, as shown here:
| Safety Feature | Functionality |
|---|---|
| Overload Protection | Stops wires from getting too hot and starting fires |
| Short Circuit Protection | Keeps equipment safe from sudden electrical problems |
HAIPART trip units make sure your power stays safe and works well.
You use a thermal trip unit to protect circuits from overload. It senses heat from too much current and disconnects power before damage happens.
You check for fast response during overloads. You also look for no false trips. Reliable operation means your system stays safe and stable.
You can use HAIPART trip units in factories, smart grids, HVAC systems, and renewable energy setups. They work well in many industrial and commercial places.
