A CAM switch may look mechanically simple from the outside. Inside, every switching operation depends on a small contact interface that must repeatedly establish and interrupt an electrical path.
When contacts close, the material must provide a stable, low-resistance conductive path. When they open, the interface may have to withstand electrical arcing, localized heating, material transfer and repeated mechanical impact.
The engineering problem is therefore a balance among contact resistance, arc resistance, anti-welding behavior, mechanical strength, manufacturability and electrical life.
At the microscopic level, apparently flat surfaces touch through a limited number of microscopic contact spots. The real conducting area can be much smaller than the apparent physical area.

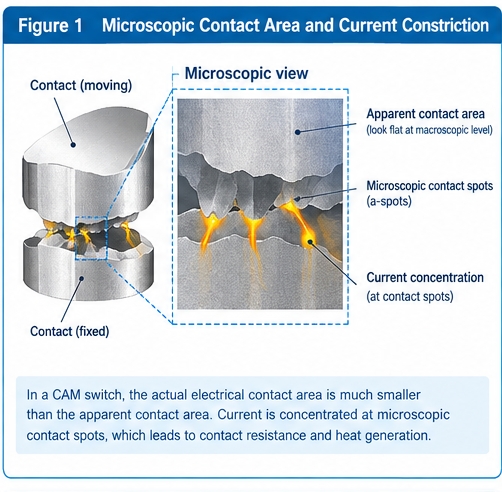

Figure 1. Conceptual illustration of apparent contact area, microscopic contact spots and current constriction.
Silver-based systems are widely studied for low-voltage switching contacts because silver offers high electrical and thermal conductivity. Alloying or adding a second phase can modify hardness, arc behavior, welding tendency and erosion behavior. The comparison below is qualitative, not a universal performance ranking.

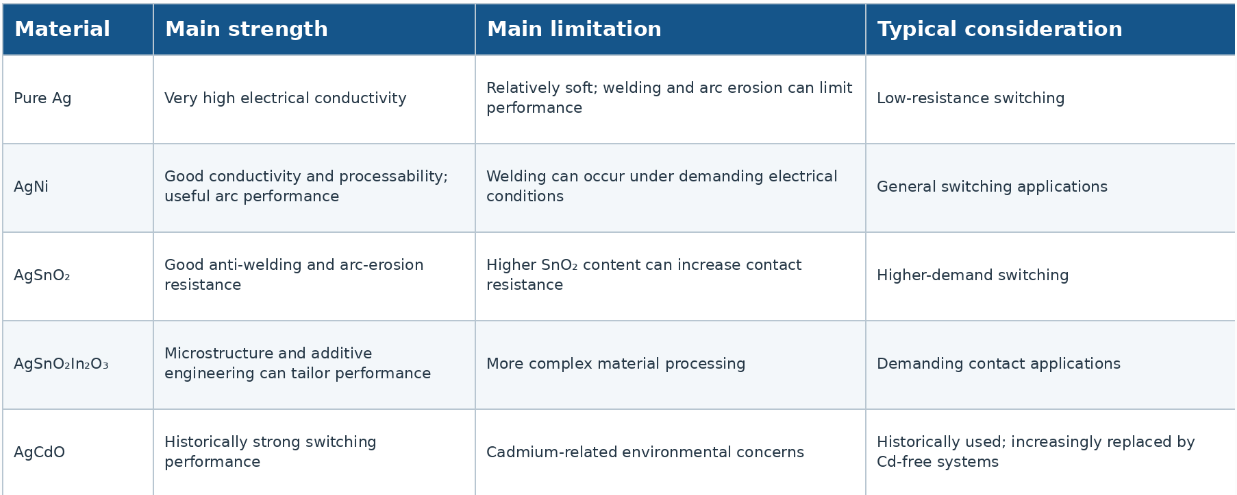

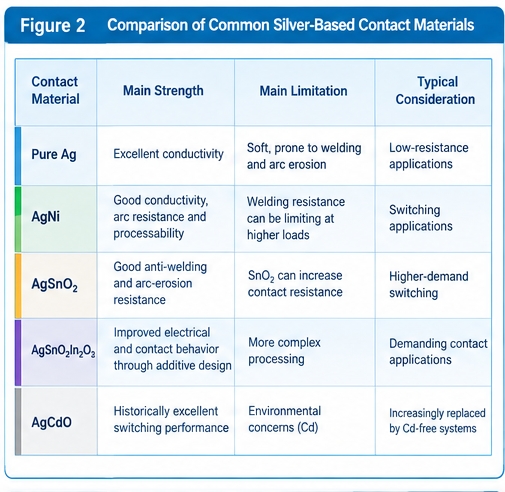

Figure 2. Qualitative comparison of common silver-based electrical contact materials.
AgNi combines a highly conductive silver matrix with nickel reinforcement. Its microstructure influences thermal behavior, arc erosion and material transfer.
The 2020 Ag–8 wt.% Ni study found serious arc erosion preferentially at Ni-rich regions on the eroded anode, while the reticulate Ni phase could restrain molten-pool expansion at the cathode during early testing.
Ag/Ni contacts can also weld under high current or high temperature. A 2015 study of Ag/12Ni investigated arc erosion after 50,000 operations at DC 19 V / 20 A under resistive-load conditions and documented crater-type erosion, melted silver, pores, cracks and other arc-affected features.
AgSnO₂ contains a hard, thermally stable SnO₂ second phase within a silver matrix. During switching, the oxide phase can influence arc distribution, molten-pool behavior, material transfer, welding tendency and surface erosion.

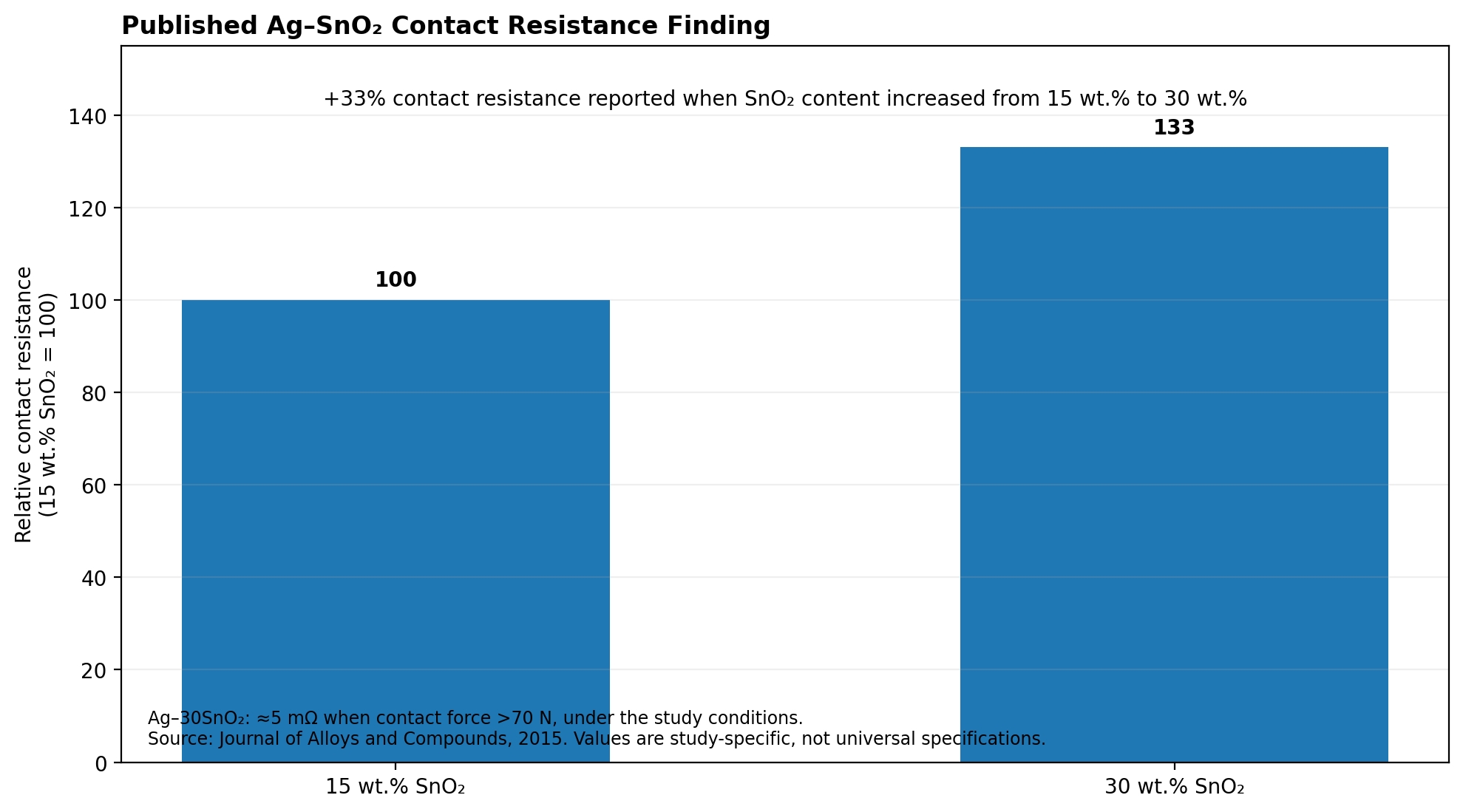

Figure 4. Published Ag–SnO₂ finding. The 15→30 wt.% comparison is a relative index derived from the reported +33% change; ≈5 mΩ applies to Ag–30SnO₂ above 70 N in the cited study.
When the CAM mechanism separates the contacts, current may not stop instantly. An electrical arc can form between the contact surfaces.
Repeated switching can change contact geometry. Published Ag/Ni and Ag–SnO₂ studies report craters, protrusions, material-transfer regions, pores and other arc-affected surface features.
A 2024 Materials Letters study compared Ag–8 wt.% Ni with Ag–8 wt.% Ni modified with Ag₂WO₄. Electrical contact tests were performed at 36 V / 25 A for 5,000 operations.

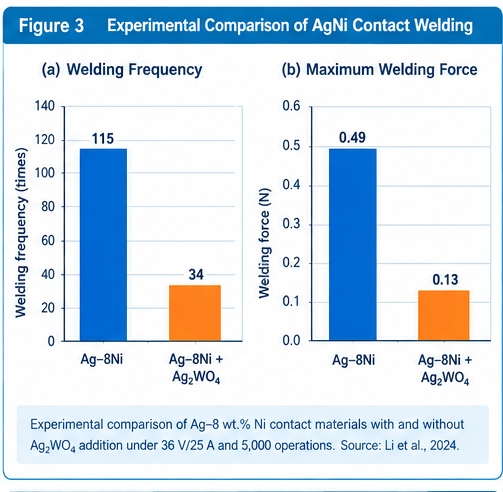

Figure 3. Published data from Li et al. (2024): welding frequency 115→34 events and maximum welding force 0.49→0.13 N, at 36 V / 25 A and 5,000 operations.
Electrical-contact studies commonly use SEM, EDS, optical microscopy, 3D surface profilometry, mass-loss measurements and electrical cycling. The 2015 Ag–SnO₂ study used SEM and scanning-laser 3D surface measurements; Ag/Ni studies have also documented arc-affected morphology and material transfer.

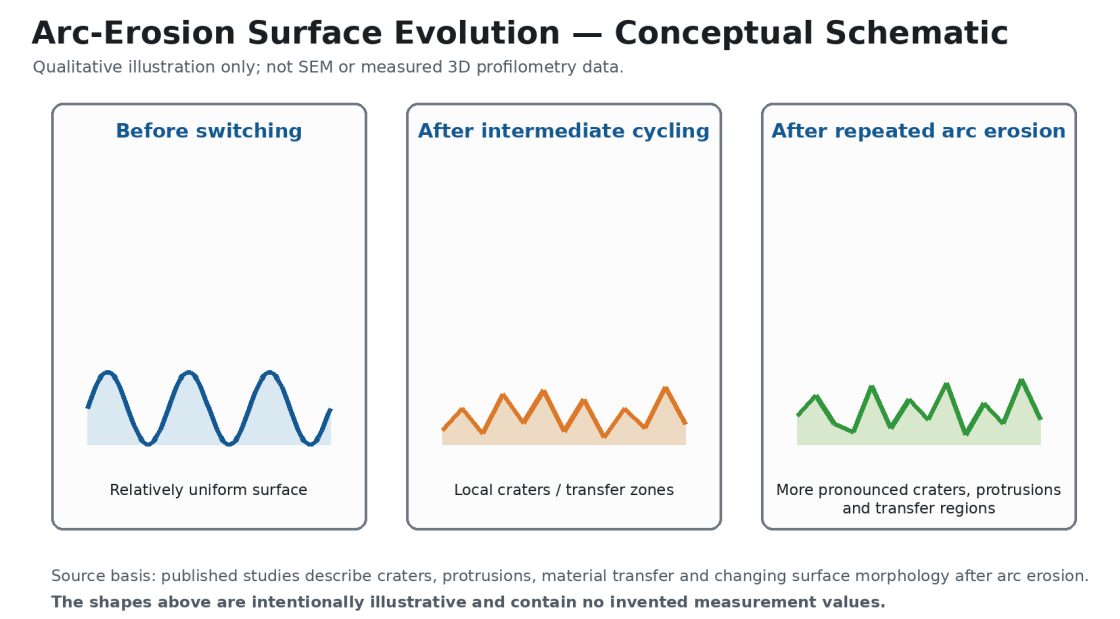

Figure 6. Conceptual illustration of qualitative contact-surface evolution during repeated arc erosion. The shapes are schematic and do not represent measured SEM or profilometry data.

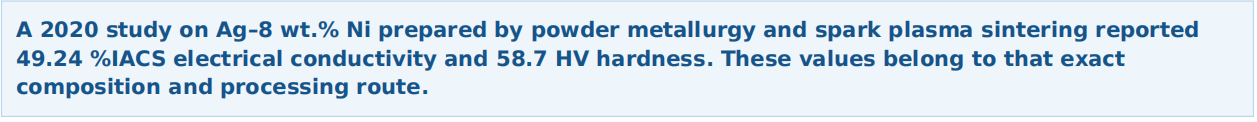

Powder metallurgy is a common route for silver-based contact materials, but the exact sequence varies with composition and target microstructure. The 2020 Ag–8Ni study, for example, used powder metallurgy with ball milling and spark plasma sintering.

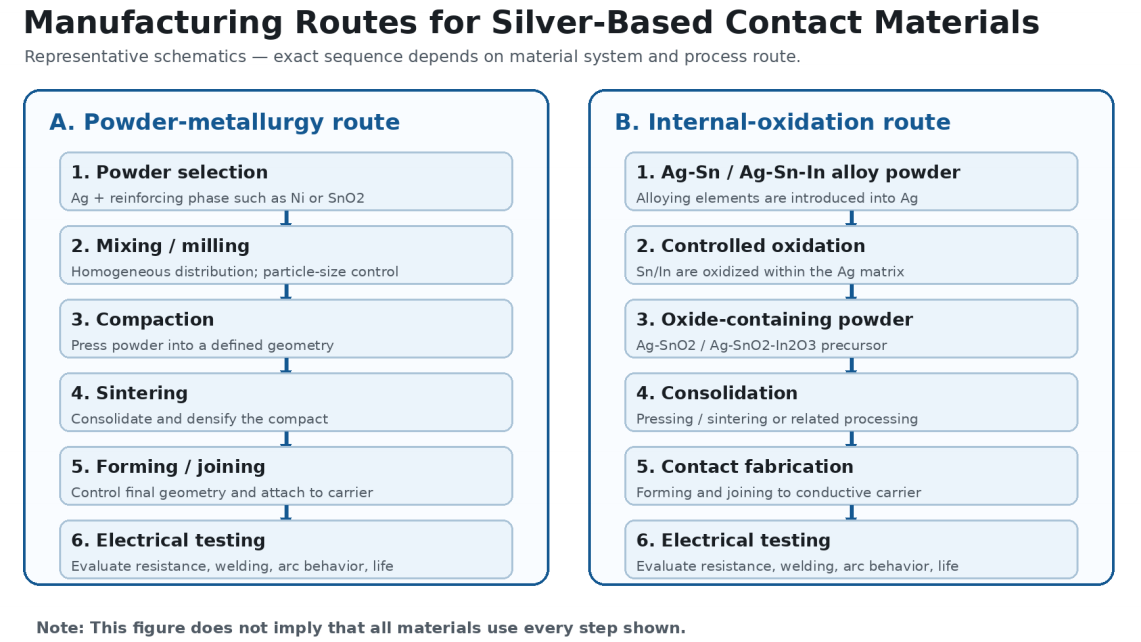

Figure 5. Representative manufacturing routes. The left branch summarizes powder metallurgy; the right branch summarizes internal oxidation. Not every material uses every step.
In a powder route, silver powder and reinforcing phases are selected, mixed or milled, compacted, sintered, formed and joined as required. Internal oxidation follows a different principle: an Ag–Sn or Ag–Sn–In alloy powder is oxidized so that alloying elements form oxide phases within the silver matrix.
Two contact materials can have the same nominal chemical composition and still perform differently because the distribution, size and morphology of the second phase can differ.
A 2026 Journal of Electronic Materials study of Ag/SnO₂ composites with TiO₂ reported that, under 220 V / 50 Hz / 20 A, adding 5 wt.% TiO₂ reduced total mass loss by 46.78% compared with the corresponding material without that addition. The same study reported hardness increasing from 82 HV to 112 HV with increasing TiO₂ content. These are results of that specific experimental system.
For CAM switch development, mechanical design and contact-material selection should therefore be considered together. A high-performance material cannot compensate indefinitely for insufficient contact force, poor geometry or uncontrolled assembly.
Material composition determines available phases; manufacturing controls their distribution and density; geometry and contact force determine interface behavior; electrical loading then drives arc formation, welding, erosion and material transfer.
This is why simply specifying “AgSnO₂ contact” is not enough to define the performance of a finished CAM switch.
Every cycle can change the contact surface slightly. Over time, these changes accumulate. Precision in material composition, forming, contact geometry, joining and dimensional control is therefore critical.
Selecting a contact material for a CAM switch is a balancing exercise. Pure silver offers excellent conductivity but is relatively soft. AgNi provides a useful combination of conductivity and processability, while welding and arc erosion must be evaluated under the intended load. AgSnO₂ offers a useful combination of conductivity, anti-welding behavior and arc-erosion resistance and has become an important cadmium-free system. More advanced Ag-based composites show how microstructure engineering can further tailor performance.
Silver-based materials are widely used because of their high conductivity. Depending on electrical load
and required life, AgNi, AgSnO₂ and other silver-based systems may be considered.
No. Pure silver has excellent conductivity but can be susceptible to welding and arc erosion under
demanding switching conditions.
AgSnO₂ provides a useful combination of conductivity, anti-welding behavior and arc-erosion resistance
and is an important cadmium-free system.
Yes. Experimental Ag–SnO₂ research found that increasing contact force can reduce and stabilize contact
resistance, particularly for high-SnO₂-content materials.
Typical evaluations include contact resistance, welding force, arc duration, arc energy, mass loss,
electrical cycling and SEM/EDS or 3D surface analysis.
Selected Research Sources
• Li H., Cao Q., Zheng J., Sun L., Rong W. “Enhancing the electrical performance of AgNi contact material
by doping Ag₂WO₄.” Materials Letters, 2024, 372, 137009. DOI 10.1016/j.matlet.2024.137009.
• Wang J., Tie S., Kang Y., Wang Y. “Contact resistance characteristics of Ag–SnO₂ contact materials with
high SnO₂ content.” Journal of Alloys and Compounds, 2015, 644, 438–443. DOI
10.1016/j.jallcom.2015.05.035.
• Li H., Wang X., Hu Z., Guo X. “Investigation on arc behavior of AgNi electrical contact material with
three-dimensional network structure.” Vacuum, 2020, 175, 109290. DOI 10.1016/j.vacuum.2020.109290.

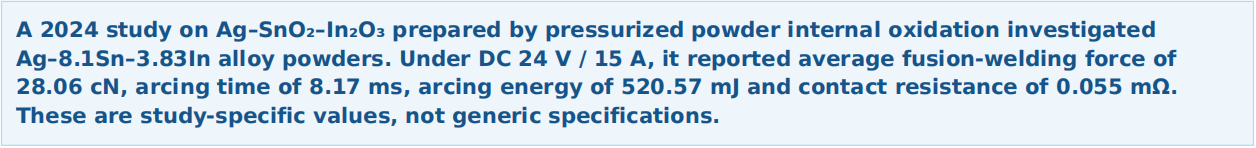

• “Electrical contact behavior of Ag-SnO₂-In₂O₃ contact materials prepared via pressurized powder internal
oxidation.” Materials Today Communications, 2024, 108357. DOI 10.1016/j.mtcomm.2024.108357.
• Biyik S., Aydin M. “Effect of TiO₂ Content on the Arc-Erosion Resistance of Ag/SnO₂ Electrical Contact
Materials Prepared via Mechanical Alloying-Assisted Powder Metallurgy.” Journal of Electronic Materials,
2026, 55, 3850–3867. DOI 10.1007/s11664-026-12701-8.
• Wu C.P. et al. “Arc erosion behavior of Ag/Ni electrical contact materials.” Materials & Design, 2015, 85,
511–519. DOI 10.1016/j.matdes.2015.06.142.
