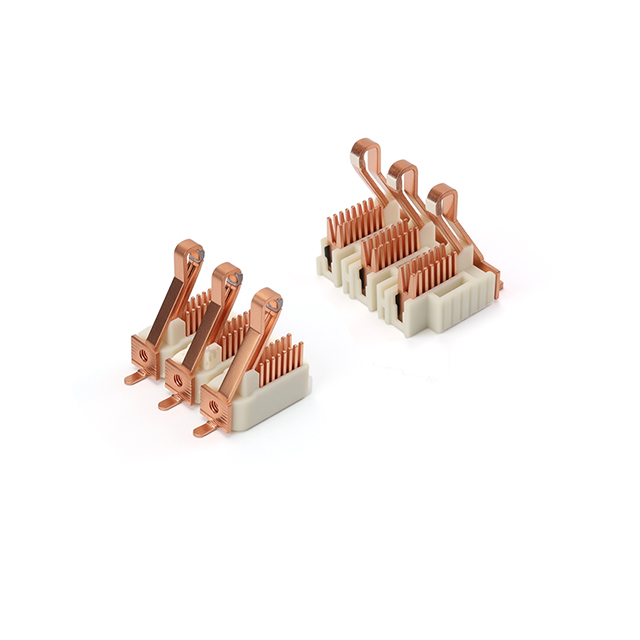

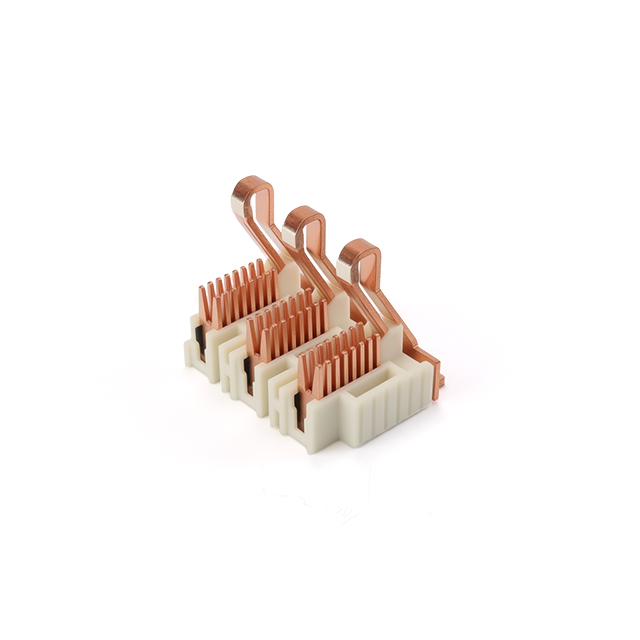

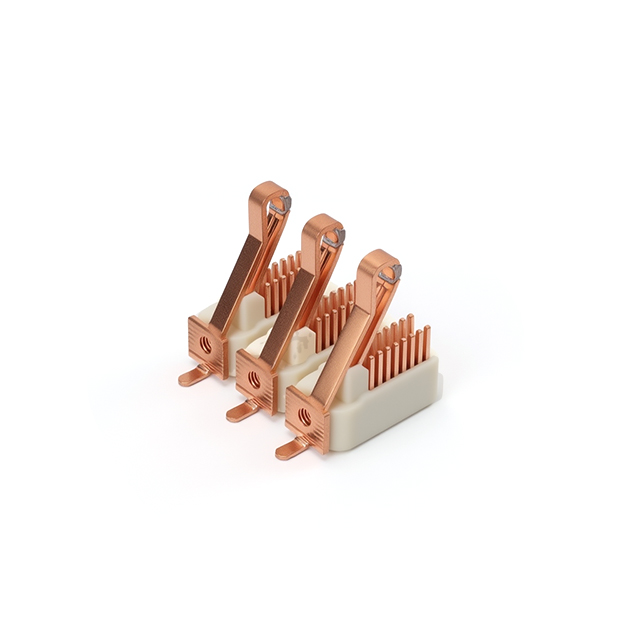

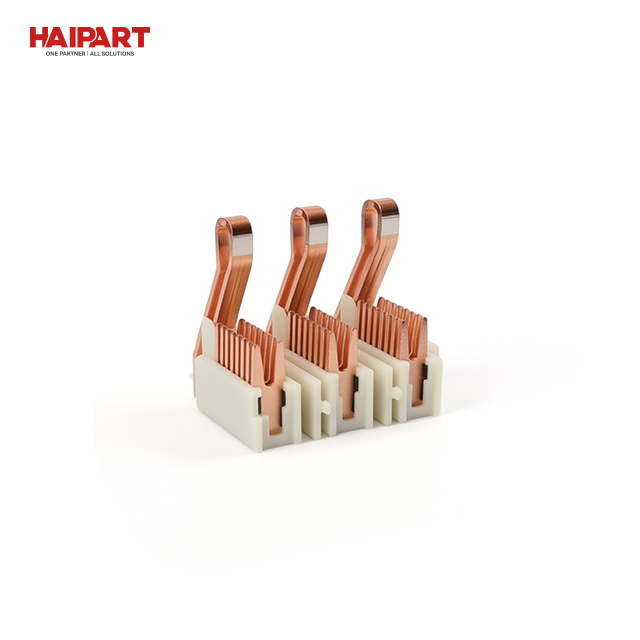

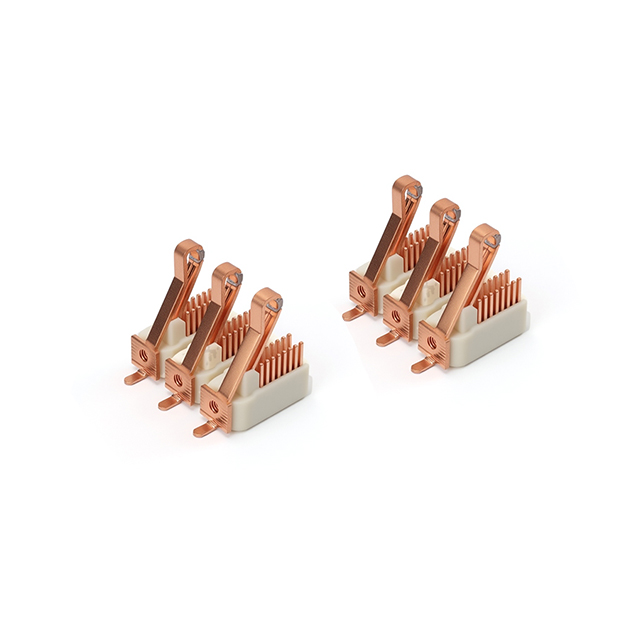

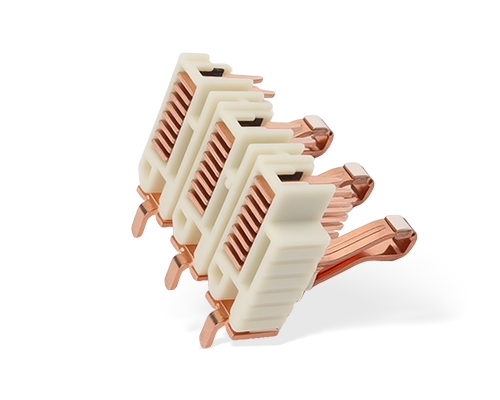

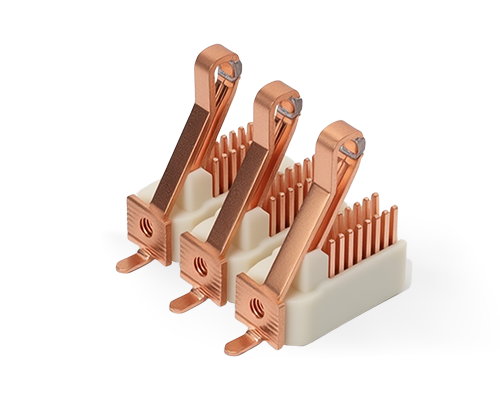

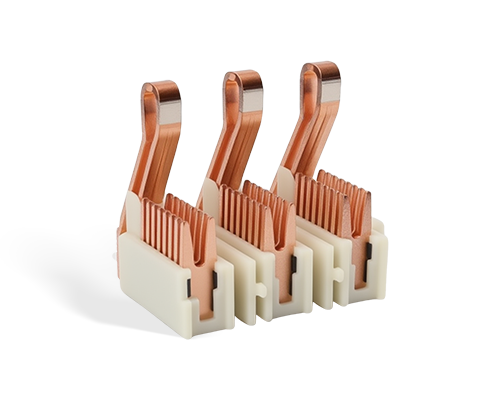

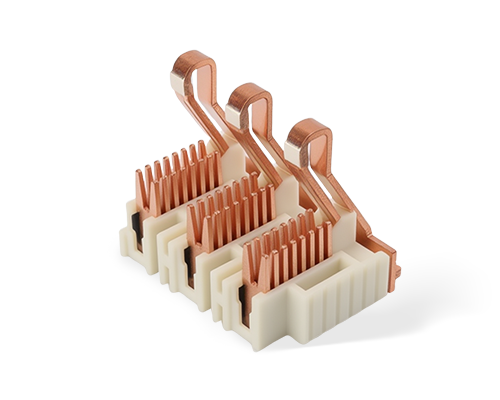

Connector Assembly
HAIPART
3056045
From mineral sand to conductor, HAIPART reshapes material properties at the molecular level. Through grain boundary engineering optimization and directional crystallization technology, every inch of the conductive medium possesses a stable electron migration path. This exploration of the essence of matter enables connectors to maintain consistent conductivity in harsh environments ranging from -40°C to 125°C.
FAQ
Q1:What is the core function of a connector assembly?
A1:To ensure reliable circuit switching and stable signal transmission and efficient power distribution, low contact resistance and high mechanical durability are required.
Q2:What is the difference between a connector and a contact assembly?
A2:The connector provides a modular interface that supports quick plugging and unplugging and multiple connections; the contact assembly is fixed inside the device and is responsible for switching a single circuit on or off.
Q3:How to choose the connector type?
A3:The arc resistance capability should be selected based on the breaking current, and the motor circuit needs to be designed with a high mechanical life.
Q4:How to match connector ratings?
A4:The rated voltage must be higher than the system's highest operating voltage, the rated current should be derated, and the contact resistance should be less than 1mΩ to avoid signal attenuation or overheating.
Q5:What are the requirements for connector installation location?
A5:The main connector should be located close to the main circuit of the equipment to reduce wiring length and impedance; auxiliary connectors should be installed in a location that is convenient for maintenance.
Q6:How to verify connector reliability?
A6:Manually plug and unplug to check for tightness of contact and any sticking or abnormal noise, and measure contact resistance and verify temperature rise by simulating load through electrical testing.
Q7:What are the common causes of poor connector contact?
A7:Mechanical failure: wear and tear from plugging and unplugging or foreign object isolation; Electrical failure: oxidation and corrosion causing intermittent signal or power interruption.
Q8:What are the prices of your products?
A8:Product prices vary depending on the model, specifications, and quantity. Please consult the sales team or check the official website for details.
Q9:What after-sales services do you provide?
A9:We provide comprehensive after-sales services, including product consultation, technical guidance, installation and commissioning, repair and replacement, and warranty.
Q10:How can I contact your technical support?
A10:Technical support can be contacted through the official website, customer service hotline, or email.
