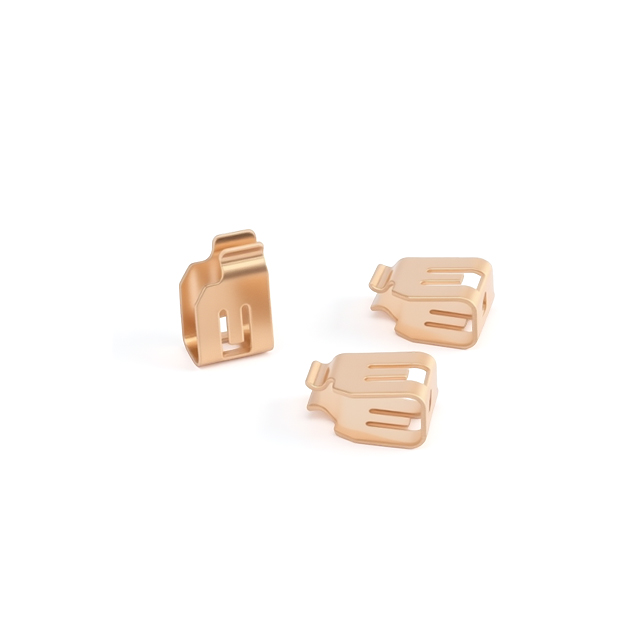

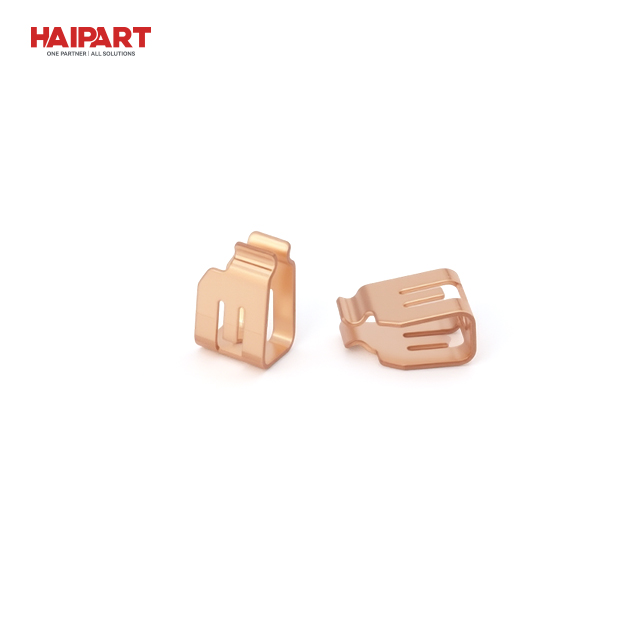

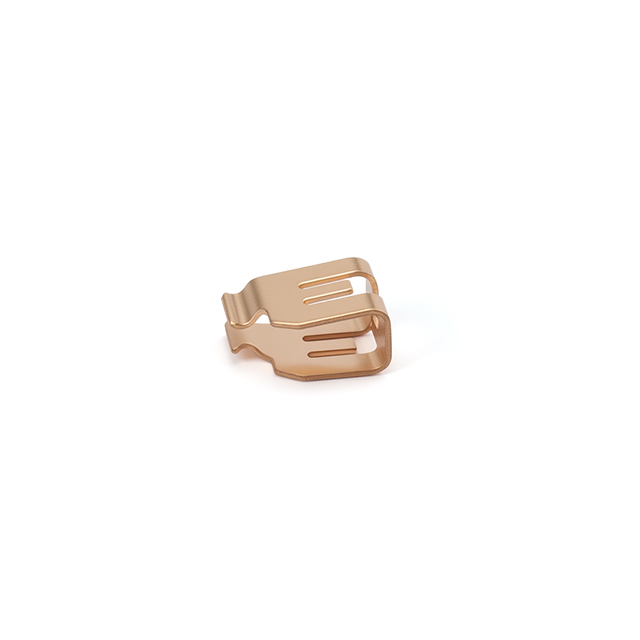

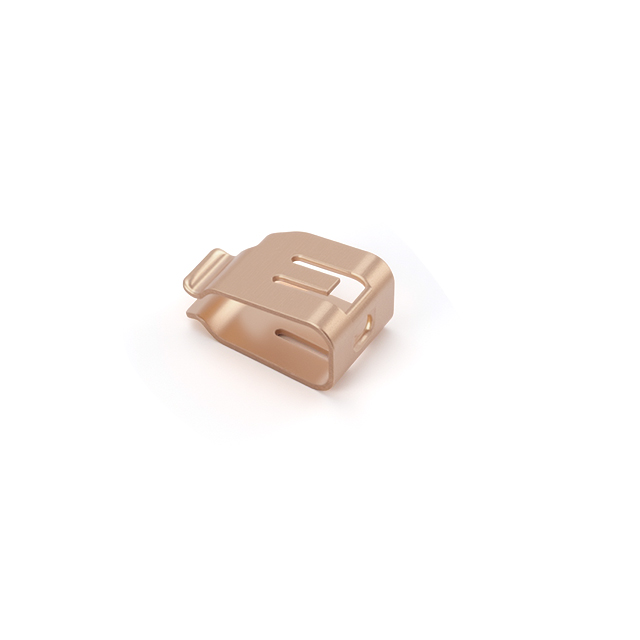

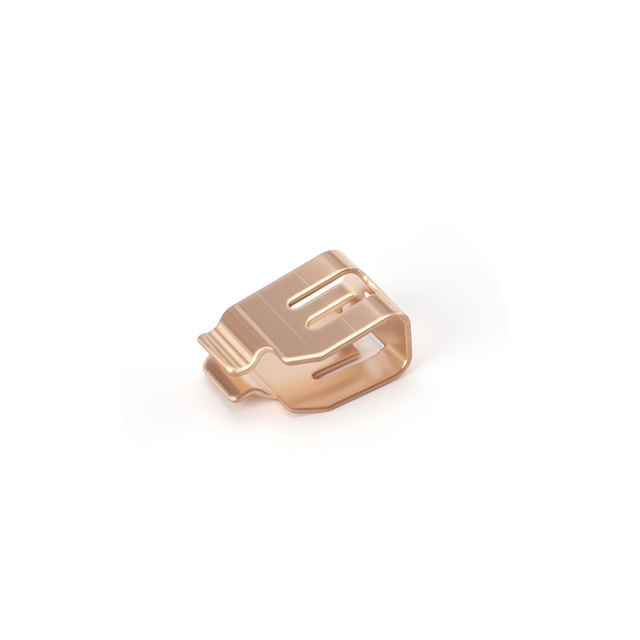

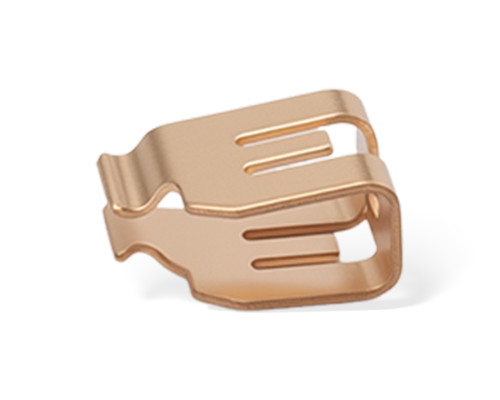

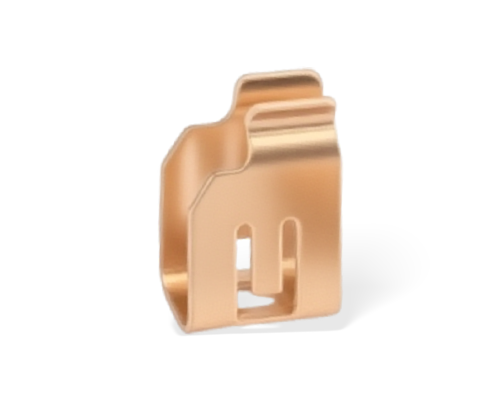

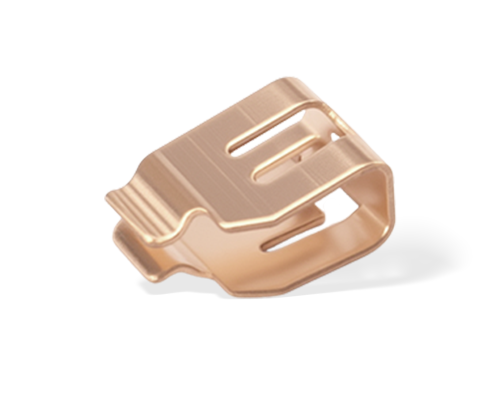

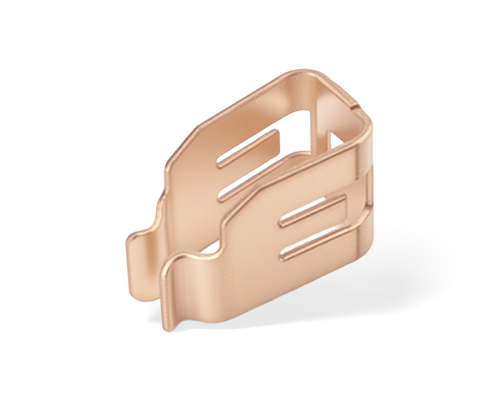

frame
HAIPART
DY1000024
The frame is a precision-stamped metal support structure that provides mechanical strength and a mounting base for electrical equipment. HAIPART uses topology optimization technology to achieve efficient material distribution, keeping stress concentration factors within safe limits. Rib layout is precisely aligned with the equipment's load path.
Applications
Suitable for applications such as smart home systems, extreme environments, and commercial building systems.
FAQ
Q1:How do the materials used in stamping affect electrical performance?
A1:The conductivity of a material directly affects the contact resistance, while the elastic modulus determines the lifespan of the spring.
Q2:What are the surface treatment options for stamped parts?
A2:Common treatments include nickel plating, silver plating, and powder coating.
Q3:How to control the tolerances of stamped parts?
A3:Referring to the GB/T 15055-2021 standard, tolerances not specified by default adopt grade m (medium grade).
Q4:What is the main function of stamped parts in low-voltage electrical equipment?
A4:Stamped parts are formed into standardized structures through precision stamping processes, and undertake functions such as conductivity, support, and insulation.
Q5:How can stamped parts pass electrical safety tests?
A5:Temperature rise ≤70K at 1.45 times rated current; no fusion welding of contacts at expected short-circuit current; withstand voltage ≥2000V and leakage current ≤1mA.
Q6:How can we provide design support for stamped parts to our clients?
A6:We provide 3D modeling services (SolidWorks/AutoCAD support), and simultaneously conduct DFM analysis to assess the manufacturability of the design and identify potential problems. We then produce 5-10 prototypes for customer testing and adjust the design based on feedback.
Q7:What international standards must stamped parts meet?
A7:It must comply with IEC 60947-1, ISO 9001, and RoHS 2.0 requirements.
Q8:What are the prices of your products?
A8:Product prices vary depending on the model, specifications, and quantity. Please consult the sales team or check the official website for details.
Q9:What after-sales services do you provide?
A9:We provide comprehensive after-sales services, including product consultation, technical guidance, installation and commissioning, repair and replacement, and warranty.
Q10:How can I contact your technical support?
A10:Technical support can be contacted through the official website, customer service hotline, or email.
