Electricity powers our world, but it remains a wild force that needs constant tethering. Without proper control, a simple surge can turn into a disaster. That is where overcurrent protection comes in. This guide explores how circuit breakers—the silent guardians of your infrastructure—work, and why the quality of internal MCB parts determines whether your building stays safe or faces a fire risk.
Every electrical circuit has a limit. When current exceeds this rated capacity, we call it an "overcurrent." This happens in two main ways: overloads and short circuits. An overload occurs when you plug too many devices into one outlet. A short circuit is more violent, happening when a "hot" wire touches a neutral one. Both generate massive heat.
Circuit breakers act as the ultimate safety switch. They detect these anomalies and snap open the circuit before the wires melt. But what actually makes a breaker reliable? It isn't just the plastic casing. The secret lies in the precision-engineered MCB parts hidden inside. From the High conductivity of the internal wiring to the responsiveness of the Bimetal strip, every component must function in perfect harmony.
To understand how a breaker safeguards your system, we must look at its dual-detection logic. Most modern Miniature Circuit Breakers (MCBs) use a "thermo-magnetic" trip mechanism. This means they handle two different types of danger using two different physical principles.
When a circuit is slightly overloaded, it doesn't need to shut down instantly. Instead, it needs to monitor the heat buildup. This is the job of the Bimetal strip. This component consists of two different metals bonded together. Because they expand at different rates when heated, the strip curves. Once it reaches a specific temperature, the curve becomes sharp enough to trip the mechanical latch.
Using High temperature resistant materials in these MCB parts ensures the breaker doesn't "nuisance trip" on a hot day but remains sensitive enough to protect the insulation of your building's wiring.
A short circuit is an emergency. It involves a massive, near-instantaneous spike in current. A Bimetal strip is too slow for this. Instead, breakers use an electromagnetic coil (solenoid). When a surge hits, the magnetic field becomes so strong it pulls a plunger that hits the trip bar immediately. This happens in milliseconds.
Feature | Thermal Protection | Magnetic Protection |
|---|---|---|
Trigger | Heat buildup from modest overload | Electromagnetic force from massive surge |
Component | Bimetal strip | Solenoid / Coil |
Response Time | Seconds to Minutes | Milliseconds |
Primary Goal | Protect wire insulation from melting | Prevent explosions and fires |
The reliability of this mechanism depends on Precision stamping of the metal components. If the latch or the plunger has even a micron of friction or misalignment, the breaker might fail to open, leading to catastrophic results.

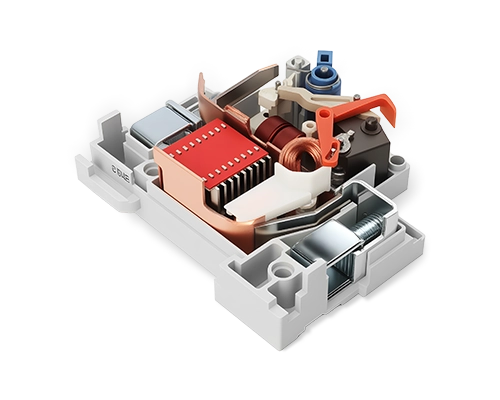

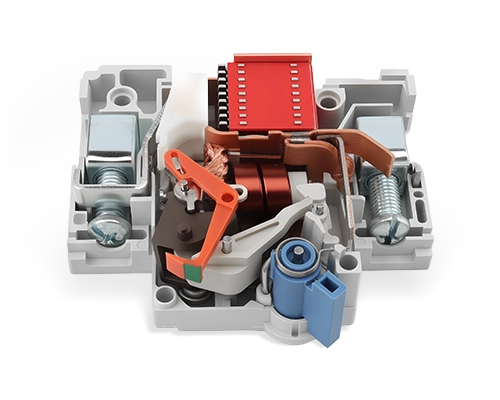

When we talk about "safeguarding," we are really talking about the integrity of the materials inside the device. You cannot have a high-performance breaker with low-grade internals. Let’s look at the critical MCB parts that define a breaker’s lifespan and safety rating.
The most vital interface in any breaker is where the electricity actually connects and disconnects. These are the contacts. Because they open and close under load, they often face "arcing"—a tiny bolt of lightning that jumps between the gaps.
Silver contact tips: We use silver alloys because silver has the highest electrical conductivity of any element. These tips resist welding together under high heat.
Copper busbars: The main current path is almost always made of high-purity Copper. It offers High conductivity, ensuring that the breaker itself doesn't become a source of heat during normal operation.
When a breaker trips, that "arc" mentioned above can reach temperatures hotter than the surface of the sun. If not controlled, it will melt the entire unit. The arc chute is a series of parallel metal plates that split the arc into smaller pieces, cooling it and snuffing it out. These plates require Precision stamping to ensure they are spaced exactly right to maximize de-ionization of the air.
The external casing isn't just a box. It must be made of High temperature resistant thermoset plastics or specialized polyamides. These materials ensure that even if an internal failure occurs, the fire is contained within the unit and doesn't spread to the distribution board.
Why does one circuit breaker last 20 years while another fails after two? The difference is usually found in the manufacturing process of the MCB parts.
Many parts inside a breaker, such as the moving contact arm and the trip lever, are created through Precision stamping. This process involves high-speed presses and incredibly accurate dies.
Consistency: In a safety device, "close enough" is dangerous. Precision stamping ensures that the 1,000th part is identical to the 1,000,000th part.
Mechanical Strength: Stamping can actually "work-harden" certain metals, making them more durable over thousands of cycles.
Complex Geometries: Modern breakers are getting smaller. We need complex shapes to fit the magnetic and thermal elements into a tiny DIN-rail footprint.
We don't just pick metals; we engineer them. For instance, the Bimetal strip isn't just "metal." It is a calibrated sensor. If the alloy mix is off by 1%, the trip curve shifts, and the breaker no longer meets its safety certification (like UL or IEC). Similarly, using High conductivity alloys for the terminals prevents "voltage drop," which can save large industrial plants thousands of dollars in energy costs over time.
Material Property | Benefit to the User | MCB parts Affected |
|---|---|---|
High Conductivity | Lower energy bills, less heat | Copper terminals, busbars |
Silver Contact | Prevents sticking/welding | Main and stationary contacts |
High Temp Resistance | Prevents casing meltdowns | Arc chutes, plastic housing |
Bimetal sensitivity | Accurate overload protection | Thermal trip unit |
A tripping breaker is often seen as a nuisance, but it is actually a success. It means the MCB parts did exactly what they were designed to do. However, understanding why it tripped is essential for maintaining your electrical system.
If your breaker trips, don't just flip it back on immediately. Follow this diagnostic flow:
Is the breaker warm to the touch? If yes, you likely have an overload. The Bimetal strip has been heating up over time. Unplug a few devices before resetting.
Did it trip with a loud "pop" or a flash? This indicates a short circuit. The magnetic solenoid was triggered. This is a wiring fault. Do not reset it; call an electrician.
Does it trip immediately after reset? There is likely a "dead short" in the system. The MCB parts are preventing a fire by refusing to stay closed.
Sometimes, low-quality MCB parts can cause a breaker to trip when there is no danger. This is often due to poor calibration of the thermal element or cheap springs that lose tension. This is why sourcing components from a factory that prioritizes Precision stamping is non-negotiable for contractors and OEMs. A reliable breaker should be "set and forget."
Not all overcurrent protection is created equal. The specific environment and load type dictate which MCB parts and trip curves you need.
Breakers are categorized by how they handle "inrush current"—the spike that happens when you first turn on a motor or a large LED array.
Type B: Trips at 3-5 times rated current. Best for residential lighting and resistive loads.
Type C: Trips at 5-10 times rated current. The "all-rounder" for commercial buildings and small motors.
Type D: Trips at 10-20 times rated current. Used for heavy industrial machinery with huge startup surges.
If you are installing breakers in a hot, humid, or coastal environment, the internal MCB parts face corrosion.
Plating: Look for Copper components that have been tin-plated to prevent oxidation.
Sealing: Higher-end breakers use better-fitting housings (thanks to Precision stamping) to keep dust and moisture away from the Silver contact points.
Choosing a breaker with High temperature resistant internals is also crucial for outdoor enclosures where ambient temperatures can reach 50°C (122°F).
We are moving into an era of "Active" protection. While traditional MCB parts are passive (responding to physical heat or magnetism), new systems are becoming digital.
Modern breakers now include microprocessors. However, they still rely on the same mechanical foundations. Even a "smart" breaker needs a high-quality Silver contact to break the physical connection. The integration of electronics simply allows for more precise monitoring of the High conductivity paths to detect early signs of wear or arcing (AFDD technology).
There is a growing push for "Green" MCB parts. This involves:
Using recycled Copper without sacrificing High conductivity.
Developing lead-free Silver contact alloys.
Optimizing Precision stamping to reduce metal scrap during production.
As we move toward a more electrified future with EVs and solar power, the demand for robust overcurrent protection will only grow. The quality of the tiny components inside these boxes will literally be the line between a functioning power grid and a dangerous failure.
Safeguarding an electrical system isn't just about the brand name on the panel. It is about the science of the MCB parts inside. Whether it is the rapid response of a Bimetal strip or the enduring performance of a Silver contact, every detail matters. When you choose breakers built with High conductivity materials and Precision stamping, you are investing in peace of mind.
We have seen how heat and magnetism are harnessed to protect us. We have explored how material science keeps the lights on. The next time you see a circuit breaker, remember the complex engineering and the High temperature resistant materials working together to keep you safe.
Q: Can I replace just the MCB parts if a breaker breaks? A: No. Circuit breakers are factory-sealed units. If internal MCB parts fail, you must replace the entire breaker to ensure the safety calibration remains intact.
Q: Why is Copper used instead of Aluminum in MCB parts? A: Copper has much higher High conductivity and is less prone to "cold flow" (loosening over time), making it much safer for the high-pressure terminal connections found in breakers.
Q: What happens if a Silver contact wears out? A: If the silver layer is gone, the resistance increases, creating heat. Eventually, the contacts may weld shut, meaning the breaker will stay "ON" even during a short circuit—a very dangerous situation.
Q: Does "Precision stamping" really matter for a simple switch? A: Yes. Because a breaker might sit unused for 10 years and then need to move in 5 milliseconds, the tolerances provided by Precision stamping are the only way to guarantee it won't seize up.
