The main circuit breaker acts as the gatekeeper of your entire home or facility's electrical system. It controls the flow of electricity from the utility grid to your branch circuits. When it fails or becomes undersized for modern power demands, knowing how to handle main circuit breaker parts and the upgrade process is critical for safety and efficiency. This guide explores the technical nuances, safety protocols, and component selection required for a successful replacement or upgrade.
A main circuit breaker is more than just a large switch; it is a sophisticated protection device designed to prevent catastrophic electrical fires. As buildings age and power needs grow—driven by electric vehicles, HVAC systems, and high-performance machinery—the original breaker often falls short. Replacing this unit requires a deep understanding of its internal mechanics and external compatibility.
Upgrading isn't just about swapping a 100-amp unit for a 200-amp one. It involves assessing the entire electrical panel, the service entrance wires, and the specific main circuit breaker parts that ensure long-term reliability. Whether you are dealing with a standard residential panel or an Industrial power distribution center, the principles of overcurrent protection remain the same.
Before touching any hardware, you must determine if the breaker is actually faulty or simply overloaded. A breaker that trips frequently might be doing its job correctly by protecting a circuit that draws too much current. However, physical signs of degradation often point toward a necessary replacement.
Look for discoloration or "pitting" on the busbar connections. This often indicates heat buildup due to a loose connection. If you smell ozone or burnt plastic near the panel, the internal thermal magnetic trip units might be failing. In some cases, the handle becomes loose or fails to "click" into the reset position, signaling that the internal springs and linkages have worn out.
If you are adding significant loads, such as a new workshop with heavy machinery, you might need a Molded case breaker with a higher continuous current rating. Modern homes often transition from 100A to 200A service to accommodate the electrical "noise" and demand of digital life. Using a clamp meter to measure the actual load during peak usage hours provides the data needed to justify an upgrade.
Symptom | Probable Cause | Recommended Action |
|---|---|---|
Frequent Tripping | Overloaded circuit or ground fault | Load balancing or breaker upgrade |
Buzzing Sound | Arcing at the busbar or internal failure | Immediate replacement of main circuit breaker parts |
Hot to the Touch | High resistance or loose lugs | Tighten connections or replace breaker |
Scorched Plastic | Severe arcing/short circuit | Full panel inspection and breaker replacement |
To perform a high-quality upgrade, you must know what happens inside the casing. A breaker is a mechanical assembly where every component must work in harmony. If one part fails, the entire safety net collapses.

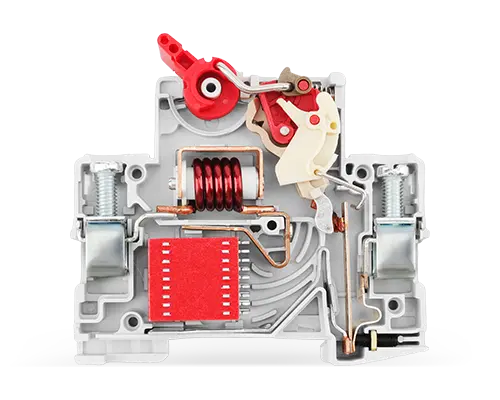

At the core of any quality breaker lies the thermal magnetic trip element. The thermal portion handles long-term overloads by using a bimetallic strip that bends when heated. The magnetic portion handles short circuits, using an electromagnet to trip the breaker nearly instantaneously.

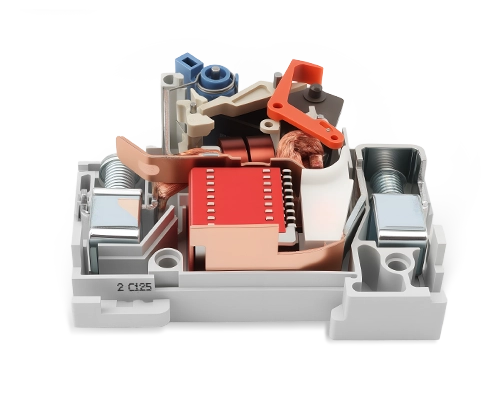

Another critical component is the Arc chute. When the contacts open under load, an electrical arc forms. The Arc chute consists of parallel metal plates that pull the arc away from the contacts, cooling and extinguishing it before it can damage the housing. In High voltage applications, these chutes are even more robust to handle the increased energy levels.
The exterior is usually a Molded case made of high-strength, fire-resistant composite materials. It protects the internal main circuit breaker parts from environmental contaminants. The lugs—the parts where the heavy service wires connect—must be rated for the specific wire gauge and material (copper or aluminum) you are using.
Lugs and Terminals: Ensure they are clean and free of oxidation.
Operating Handle: Provides manual control and clear status indication (On/Off/Tripped).
Mounting Clips: These secure the breaker to the panel’s busbar, ensuring a low-resistance electrical path.
Compatibility is the most common hurdle in breaker replacement. You cannot simply use any brand that "fits" the slot. The panel manufacturer specifies which breakers are "classified" or "listed" for use in their equipment.
Always match the breaker brand to the panel brand unless the manufacturer explicitly lists a compatible alternative. Using an incompatible breaker can lead to poor busbar contact, causing heat and eventually a fire. For Industrial settings, you might need to check the Interrupting Rating (AIR), which defines the maximum fault current the breaker can safely clear.
Modern codes often require more than just standard overcurrent protection. Depending on your local regulations, you might need to consider:
GFCI (Ground Fault Circuit Interrupter): Protects against "leaking" current that could cause shocks.
AFCI (Arc Fault Circuit Interrupter): Detects dangerous arcing in wiring that standard breakers might miss.
High voltage rated units for specialized machinery or commercial service entrances.
When sourcing main circuit breaker parts, verify that they carry the UL (Underwriters Laboratories) or equivalent certification mark. This ensures the unit has undergone rigorous testing for safety and performance.
Safety is the absolute priority here. Replacing a main breaker involves working near "live" service entrance wires that cannot be turned off at the panel.
Before opening the panel, put on your PPE (Personal Protective Equipment). This includes safety glasses, insulated gloves, and non-conductive footwear. Ensure you have a bright, independent light source since you will be turning off the power.
Notify Occupants: Let everyone know the power will be out.
Verify the Load: Turn off all individual branch breakers first to prevent a massive "inrush" current when you eventually flip the new main breaker back on.
External Disconnect: If your meter socket has an integrated disconnect, turn it off there. This is the safest way to work because it de-energizes the entire panel.
Once the panel is as safe as possible, use a voltage tester to confirm the busbars are dead (if you used an external disconnect). If you are working "live" at the main lugs (which we highly discourage for DIYers), use extreme caution.
Loosen the Lugs: Carefully unscrew the large set screws holding the main service wires. Pull the wires back and secure them so they don't touch the panel sides.
Pry the Breaker: Most main breakers are bolted or clipped onto the busbar. Remove the mounting screws and gently rock the unit until it releases.
Inspect the Busbar: Before installing the new main circuit breaker parts, look for signs of corrosion on the metal tabs. Clean them with a dedicated electrical contact cleaner if necessary.
Seating the New Unit: Align the new breaker with the busbar and press firmly. Re-install the mounting screws.
Wiring: Insert the service wires into the new lugs and torque them to the manufacturer's specific inch-pound requirements. A loose wire is a fire hazard.
An upgrade often involves moving from a lower amperage to a higher one. This is a more complex task than a simple 1:1 replacement because it usually requires new service wires from the utility company.
We use a "Load Calculation" to determine if an upgrade is necessary. You add up the square footage wattage, the dedicated appliance circuits, and the "demand factors" for items like clothes dryers and electric ranges. If your total exceeds 80% of your current main breaker's rating, it's time for an upgrade.
When you upgrade to a 200A or 400A service, the wires coming from the street must be thick enough to handle the load. They usually need to be replaced by the utility company. You will also likely need a new meter base and a larger electrical panel to house the new Molded case breaker and its associated main circuit breaker parts.
Service Level | Common Use Case | Required Wire Size (Typical) |
|---|---|---|
100 Amp | Small homes, gas heating | #4 Copper or #2 Aluminum |
200 Amp | Modern homes, EV charging | 2/0 Copper or 4/0 Aluminum |
400 Amp | Large estates, light Industrial | Dual 2/0 runs or specialized busing |
After the physical installation is complete, you must verify that everything is working as intended. This is where many mistakes are caught before they cause damage.
Flip the breaker on and off several times (without load) to ensure the internal linkages move freely. Use a multimeter to check the voltage across the two main phases; it should read approximately 240V (in standard US residential systems). Check the voltage from each phase to the neutral bar; it should be roughly 120V.
Once the branch breakers are turned back on and the building is under normal load, it's a good idea to use an infrared thermometer. Point it at the main lugs. The temperature should be consistent across both phases. If one lug is significantly hotter, it usually indicates a loose connection or a faulty internal contact within the thermal magnetic assembly.
We recommend checking the torque on the lugs again after 24 hours of operation, as heat cycling can sometimes cause wires to "settle," leading to slight loosening. This is a standard practice in Industrial maintenance to prevent long-term failure of main circuit breaker parts.
A main circuit breaker is not a "set it and forget it" device. While they are designed to last decades, periodic maintenance extends their life and ensures they trip when they are supposed to.
Exercise the Breaker: At least once a year, flip the main breaker off and back on. This prevents the internal pivots from becoming "frozen" due to dust or oxidation.
Visual Inspections: Every few months, take a quick look inside the panel (without removing the cover) for any signs of moisture, rust, or insect nesting.
Professional Audits: Every 5-10 years, have an electrician perform a "bolt-tight" check and a thermal scan.
If you ever notice the breaker making a "humming" or "sizzling" noise, do not wait. This indicates that the Arc chute or the contacts are struggling to maintain a clean connection. Immediate replacement of the main circuit breaker parts is the only safe solution.
Replacing and upgrading a main circuit breaker is a high-stakes task that demands precision and respect for electricity. By understanding the roles of the Arc chute, the thermal magnetic trip unit, and the quality of the Molded case, you can ensure your electrical system remains a silent, safe provider of power. Whether you are managing a small residential fix or a massive Industrial upgrade, using the right main circuit breaker parts and following strict safety protocols is the only way to succeed.
As a leading voice in the electrical components industry, we at HAIPART take immense pride in our manufacturing excellence. Our factory is equipped with state-of-the-art automation and testing labs that ensure every main circuit breaker part leaving our facility meets global safety standards. We don't just assemble components; we engineer reliability. From the precision-wound coils in our thermal magnetic units to the high-durability polymers used in our Molded case housings, our commitment to quality is evident. We understand the demands of both residential and High voltage industrial environments, and we leverage our decades of manufacturing experience to provide solutions that electricians and engineers trust. When you choose HAIPART, you are choosing a partner dedicated to power safety and innovation.
Q: Can I replace a main breaker without calling the utility company? A: It depends on your setup. If you have a separate "main disconnect" outside near your meter, you can shut off the power there and safely replace the breaker in your inside panel. If your main breaker is the very first point of disconnect, the wires leading into it are "hot" and cannot be turned off without the utility company pulling the meter.
Q: What is the difference between a standard breaker and a "Molded case" breaker? A: Technically, almost all modern residential and light commercial breakers are Molded case breakers. The term refers to the fact that the main circuit breaker parts are enclosed in a hardened plastic shell that provides insulation and structural integrity.
Q: How do I know if my breaker is Thermal Magnetic or Electronic? A: Most residential breakers are thermal magnetic. They use physical heat and magnetism to trip. Electronic breakers have a small circuit board inside and often have adjustable settings (dials) on the front to change the trip curves—these are more common in Industrial settings.
Q: Why is the Arc chute so important during an upgrade? A: When you upgrade to a higher capacity, the potential "fault current" (the energy released during a short circuit) increases. A high-quality Arc chute is essential to break that massive energy safely without the breaker exploding.
