In the complex landscape of modern electrical engineering, a Miniature Circuit Breaker (MCB) is far more than a simple switch. It is a highly calibrated safety system designed to protect lives and infrastructure from the volatile nature of electricity. Achieving superior circuit protection requires a deep understanding of internal architecture. To ensure system reliability and long-term safety, engineers must look beyond the external casing and evaluate the core components that define performance.

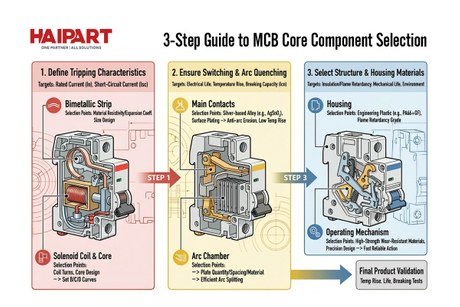

The primary function of an MCB is to detect faults and disconnect the power before damage occurs. This "intelligence" resides in two critical parts: the Bimetallic Strip and the Solenoid Coil.
The Bimetallic Strip is responsible for thermal protection against overloads. Selection here depends on material resistivity and the expansion coefficient. A high-quality MCB uses materials that respond predictably to heat, ensuring that the device does not "nuisance trip" but remains sensitive enough to protect the wire insulation.
Conversely, the Solenoid Coil & Core handle magnetic protection against short circuits. The precision of the coil turns and core design determines the specific B, C, or D tripping curves. For industrial applications, achieving a rapid instantaneous response is vital. This level of precision engineering is what differentiates a standard breaker from a world-class protection device.
When a fault occurs, the MCB must physically separate its contacts. This is where the most intense physical stress occurs. The Main Contacts are the heart of this process. High-performance breakers utilize silver-based alloys, such as AgSnO2 (Silver Tin Oxide). These materials are chosen for their exceptional anti-arc erosion properties and their ability to maintain low contact resistance, which prevents excessive temperature rise during continuous operation.
Once the contacts separate, an electrical arc is formed. Managing this arc is the job of the Arc Chamber. An effective Arc Chamber design focuses on plate quantity, precise spacing, and specialized materials to facilitate efficient arc splitting. By cooling and extinguishing the arc in milliseconds, the Arc Chamber prevents internal damage and ensures a high breaking capacity, protecting the overall power distribution network.
Even the best internal mechanism will fail if it is not supported by a robust frame. The Housing of a modern MCB must be constructed from high-strength engineering plastics, typically PA66+GF (Polyamide 66 reinforced with Glass Fiber). This material provides the necessary flame retardancy and mechanical rigidity to withstand the high pressures generated during a short-circuit interruption.
Furthermore, the Operating Mechanism must be designed for longevity. Precision-molded parts ensure a fast, reliable action every time the toggle is flipped. In industrial environments, where equipment is subject to vibrations and environmental stress, the mechanical life of these components is a non-negotiable factor for industrial automation and safety.
At HAIPART, we believe that "One Partner | All Solutions" is more than a slogan; it is a commitment to manufacturing excellence. Final product validation is the bridge between theory and reality. Every MCB must undergo rigorous testing, including:
Temperature Rise Tests: Ensuring the unit remains cool under full load.
Mechanical & Electrical Life Tests: Simulating years of operation.
Breaking Capacity Tests: Confirming the unit can safely interrupt fault currents.
By focusing on these core components and strict validation protocols, we provide the electrical engineering community with the tools needed for a safer, more efficient future.
