In the high-stakes world of Industrial Automation and Power Distribution, we often talk about smart grids and digital monitoring. But when things go wrong, the real hero is a few millimeters of engineered space inside your breaker. This Tech Deep Dive explores the HAIPART MCCB Arc Chamber (or Arc Chute). We’re looking past the plastic casing to the material science of DC01 steel, epoxy glass cloth, and 3μm copper plating. It’s a story of how Manufacturing Excellence translates directly into Electrical Safety and long-term Energy Safety.
The Hidden Battle: What actually happens during a short circuit?
Material Integrity: Why we chose DC01 Steel, Epoxy Glass, and Copper Plating.
Anatomy of an Extinction: The logical flow of our 7-plate system.
Beyond the Datasheet: Why IEC 60947-2 compliance isn't just a checkbox.
The HAIPART Philosophy: Engineering reliability into every millisecond.
In any heavy-duty Power Distribution network, a Circuit Breaker spends 99% of its life doing nothing. But in that remaining 1%, it has to perform a miracle. When contacts snap open under a fault, the air transforms into a plasma arc—a violent, blinding flash hotter than the sun’s surface. Without a high-performance Arc Chamber, that energy would simply vaporize your Switchgear.
For those of us in Industrial Automation, Electrical Safety isn't just about a "trip." It’s about how gracefully that energy is handled. At HAIPART, we’ve obsessed over the physics of this moment, ensuring that the arc is contained, cooled, and extinguished before it can compromise your system’s Energy Safety.
If you’ve spent any time in Electrical Engineering, you know that "generic" materials don't survive industrial environments. Our Arc Chute follows a strict material recipe designed for endurance.
The Power of DC01 Cold-Rolled Steel: We don't just use any metal. Our plates are crafted from Cold-rolled Steel (DC01). Why? Because of its magnetic "pull." It acts like a vacuum for electricity, dragging the arc away from the precious contacts and deep into the extinction stack.

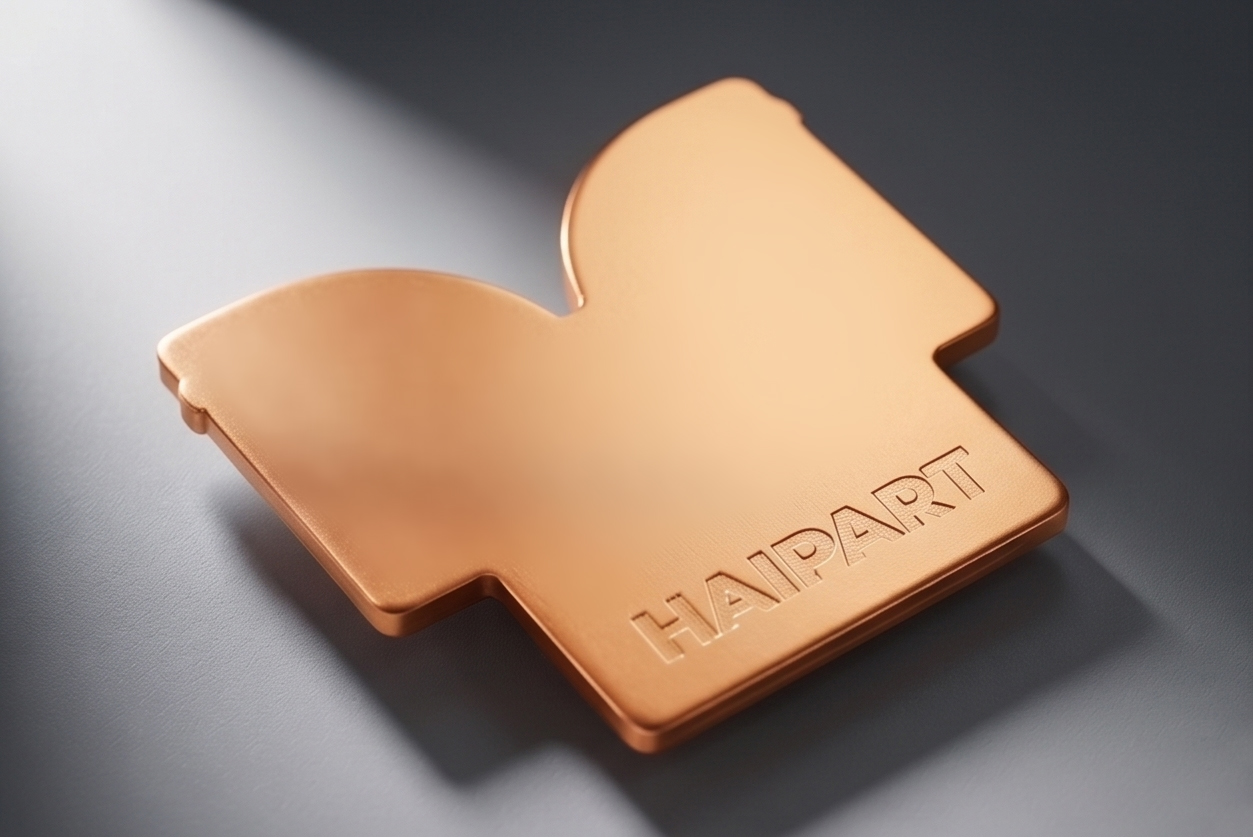

Precision 3μm Copper Plating: To prevent the plates from pitting and to keep thermal conductivity at its peak, we apply a 3μm Copper coating. This ensures that the Arc Chamber doesn't just split the arc—it absorbs the heat instantly.
Reinforced White Epoxy Glass Cloth Board: While a standard MCB might get away with basic plastic, an MCCB needs more backbone. We use White Epoxy Glass Cloth Board for the internal supports. It’s a choice that offers:
Dielectric Strength: Eliminating the risk of internal flashovers.
Mechanical Rigidity: Keeping the 7-plate stack perfectly aligned even under the violent pressure of a fault.
Thermal Stability: It won't carbonize, meaning your breaker is ready for action again and again.

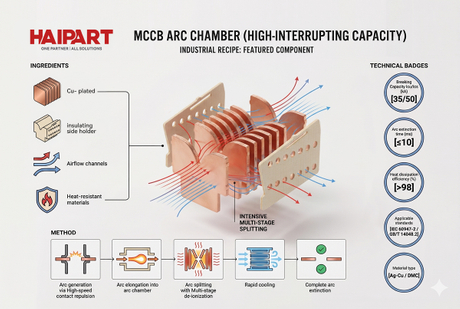

Extinguishing an arc isn't magic; it’s a calculated, logical process. Within a HAIPART unit, Manufacturing Excellence manifests in a five-step lifecycle:
Magnetic Drag: The DC01 plates generate a magnetic field that physically pulls the arc upward.
The Stretch: As the arc enters the Arc Chamber, it is elongated, which naturally increases its resistance.

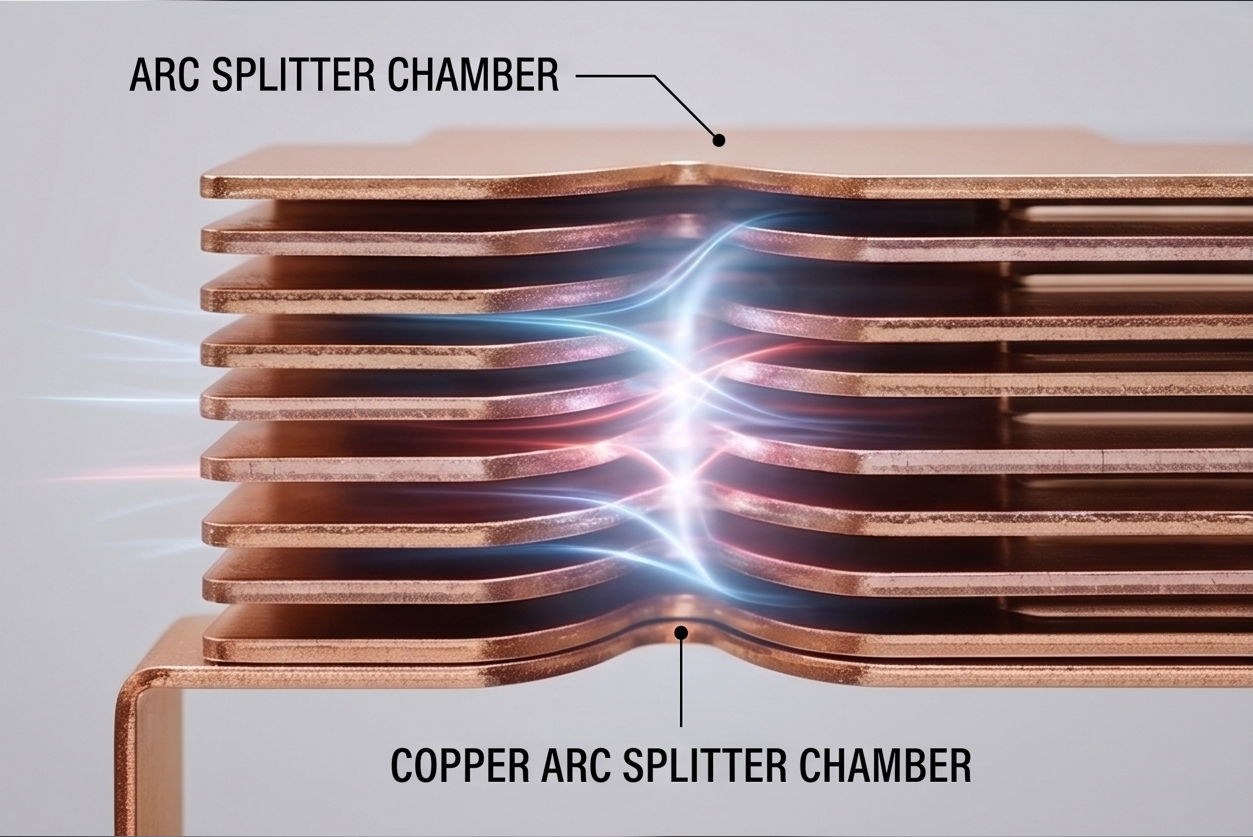

Intensive Splitting: Our 7-plate architecture segments the arc into smaller, weaker "mini-arcs." This Multi-stage De-ionization is where the real work happens.
Thermal Dissipation: The copper-plated surfaces and the DMC (Dough Molding Compound) case bleed off the heat.
Safe Isolation: The air gap is restored, the circuit is dead, and your equipment is safe.
In the world of Industrial Automation, talk is cheap. Engineering must be validated. Our MCCB Arc Chamber isn't just designed to work; it’s designed to pass the world’s toughest exams: IEC 60947-2 and GB/T 14048.2.
With a Breaking Capacity (Icu/Ics) of 35/50 kA, our tech is built for the "worst-case scenario." We keep Arc Extinction Time under 10ms because we know that every extra millisecond of heat shortens the life of your Switchgear. Choosing the right internal components is the difference between a system that lasts 20 years and one that fails in two.
At HAIPART, we believe that Electrical Safety is won or lost at the material level. By sticking to high-grade DC01 steel, silver-plated components, and Epoxy Glass insulators, we’re not just making parts—we’re making promises.
One Partner | All Solutions See the full technical breakdown and download our latest specs at: www.haipart.com
