When you put in a miniature circuit breaker, safety is very important. Doing it the right way helps stop electrical fires. It also keeps overcurrent from hurting your system. This lowers the chance of electric shocks.
Circuit breakers turn off power fast if something is wrong.
MCBs keep your electrical system safe from too much power.
Ground fault protection makes your space safer.
Regulation | Description |
|---|---|
1910.304(f)(1)(iv) | Overcurrent devices must be easy to reach and safe from harm. |
1910.304(f)(1)(v) | Circuit breakers must be covered to stop injuries when used. |
You can trust HAIPART’s help at every step. Always use this guide, follow your local rules, and check the mcb usage guide for good results.
Always switch off the main power before you start. This keeps you safe from electric shocks and accidents.
Use the correct tools and wear safety gear like gloves and goggles. These items help keep you safe from harm.
Check every connection and wire to make sure they are tight. Loose wires can cause problems and may be dangerous.
Look at your miniature circuit breaker often for damage or wear. Finding problems early helps keep things safe and working well.
Follow local rules and guidelines when you install circuit breakers. This keeps your electrical system safe and protected.
It is important to know how a miniature circuit breaker works before you install one. This device keeps your electrical system safe from danger. If too much current goes through the wires, the miniature circuit breaker stops it. It shuts off electricity when there is an overload or a short circuit. This helps protect your wires and devices. You do not need to buy a new device after it trips. You can reset it and use it again.
Stops circuits from getting too much power or short circuits.
Turns off electricity by itself when there is too much current.
You can reset it, so you do not have to replace it after it trips.
A miniature circuit breaker is very important for electrical safety. It helps stop wires from getting too hot and causing fires. You can trust this device to keep your home or business safe. The mcb usage guide shows you how to use and take care of these devices for the best results.
You need a good mcb for your electrical system. HAIPART miniature circuit breakers have many good features. These products follow strict safety rules. You can use them in homes, factories, and on boats. The mcb usage guide from HAIPART helps you pick the right one for your needs.
Feature/Certification | HAIPART Miniature Circuit Breakers | Industry Standards |
|---|---|---|
Certifications | Varies by region | |
Applications | Residential, Industrial, Marine | General applications |
Breaking Capacity | 6-10kA (varies by model) | Typically 6-10kA |
Manual Reset | Yes | Yes |
Specialized Solutions | Surge-protected, DC MCBs | Limited options |

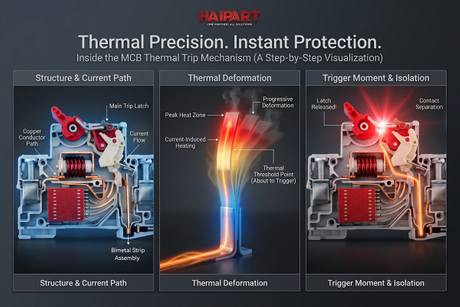

HAIPART miniature circuit breakers use a thermal-magnetic trip system. This gives you quick and accurate protection. You get strong galvanized contacts that last a long time. The small size makes it easy to install. You can trust HAIPART products to keep you safe. This guide will help you put in and use your miniature circuit breaker with confidence.
You need to wear safety gear before doing electrical work. This gear keeps you safe from electric shock and other dangers. Pick safety gear that fits you well and is not damaged. Always use safety gear when working with miniature circuit breakers. The right equipment helps stop accidents and keeps you safe.
Here is a table that lists the safety gear you should use:
Type of Equipment |
|---|
Rubber insulating blankets |
Rubber insulating matting |
Rubber insulating covers |
Rubber insulating line hose |
Rubber insulating gloves |
Rubber insulating sleeves |
Always wear rubber insulating gloves and sleeves. These protect your hands and arms from electric shock. Rubber insulating blankets and matting help when you kneel or stand near the panel. Covers and line hoses give extra protection for wires and connections. Wearing safety gear is one of the best mcb safety tips. You lower your chance of getting hurt and follow safety rules.
Tip: Check your safety gear before you use it. Look for holes, tears, or worn spots. Replace any gear that is damaged right away.
You must turn off power before installing a miniature circuit breaker. This step is very important for your safety. If you skip it, you could get shocked or hurt. Always follow these steps to turn off power safely:
Turn off power at the main breaker. Find the main breaker at the top of your panel and switch it off.
Use a voltage tester to make sure the power is off. Do not touch any wires until you know there is no electricity.
Double-check by testing nearby outlets or lights. Make sure everything is off before you start.
Use a voltage tester every time you work with electrical panels. This tool helps you check that the circuit is not live. You stop accidental electrocution when you test for power. Always test your voltage tester before you use it. Sometimes testers do not work right. Wearing insulated gloves gives you more safety when checking for power.
Using a voltage tester helps you make sure the circuit is not live.
Test your voltage tester first so you do not get wrong readings.
Insulated gloves keep you safe from electric shock during testing.
Follow these steps every time you install a miniature circuit breaker. Safety gear and careful testing help you avoid accidents. You keep yourself and others safe from harm. These steps also help your new breaker give the best overload and short-circuit protection.
You need to get your tools before you start. The right tools help you work safely and fast. Insulated handles on tools keep you safe from electric shock. Here are the main things you need:
Insulated screwdrivers (flathead and Phillips)
Torque screwdriver or torque bit for tight screws
Wire strippers or cable cutters for cutting wires
Pliers or wrenches for holding connections
Voltage tester or multimeter to check wires
Insulated gloves and safety goggles for safety
Circuit breaker panel labels for marking wires
Get all your tools before you begin working. This saves time and keeps you from losing things. When you have your tools ready, you can focus on wiring safely.
Tip: Check your tools for damage before you use them. Broken tools can hurt you or mess up wires.
Keeping wires neat is very important for safety. Always turn off the main power before you touch wires. Make sure your work area is clean and dry. Take away any metal things or water. Good lighting helps you see wires better.
When you put in the miniature circuit breaker, line it up with the others. Run wires so they do not cross or block other breakers. Put each wire in the right spot. Tighten screws so wires do not come loose. Make sure no wire ends stick out.
Check all connections before turning the power back on.
Make sure the breaker is tight in its place.
Wires should not be bent too much or pinched.
Label every wire and breaker so you know what they are later. This helps you or someone else fix things in the future. Neat wires help stop problems and make repairs easier.
Note: Neat wires help stop accidents and make your system look good.
Before you install miniature circuit breakers, you need to get ready. Good preparation keeps you safe and helps the installation go smoothly. Follow these steps to make sure you are ready:
Disconnect the power supply to the panel. Use lockout-tagout tags so no one turns it back on by mistake.
Check that the power is off with a non-contact voltage tester. Never trust the panel is dead until you test it.
Put on insulating gloves and protective goggles. Safety comes first.
Gather your tools. You need wire strippers, crimping tools, the right gauge wires, wire lugs, electric screwdrivers, flathead screwdrivers, and a multimeter.
Check the mcb you plan to use. Make sure the current rating matches your circuit’s load. Confirm the voltage is right for your panel. Look at the temperature and environment around the panel.
Tip: Always double-check your tools and safety gear before you start. This step can prevent accidents during installation.
If you need to replace an old breaker, you must remove it before you install miniature circuit breakers. Here is how you do it:
Turn off all branch circuit breakers in the panel. Then turn off the main circuit breaker.
Use your voltage tester to make sure the panel is not live.
Take off the panel cover. Set the screws aside so you do not lose them.
Find the old breaker you want to replace. Disconnect the wires from it. Remember where each wire goes.
Gently pry the old breaker out of its slot. Watch how it fits so you can install the new mcb the same way.
Note: Take a picture of the panel before you remove anything. This helps you remember where all the wires go.
Most panels use a DIN rail to hold breakers. You need to mount the new mcb on the DIN rail before you connect wires. Follow these steps:
Hold the new miniature circuit breaker by its sides. Line it up with the empty slot on the DIN rail in the panel.
Hook the back of the breaker onto the top edge of the DIN rail.
Push the bottom of the breaker until it snaps into place. You should hear a click.
Make sure the breaker sits flat and does not move. A loose breaker can cause problems in the panel.
Tip: If the breaker does not fit, check that you have the right model for your panel. Never force a breaker into place.
Now you are ready to connect wires to the new mcb. Wiring is a key part of the installation. Take your time and follow each step:
Bend the two black service wires and connect them to the main breaker in the panel. Strip the ends of the wires and insert them into the lugs on the main breaker.
For each branch circuit, connect the mcb that matches the needed amperage and voltage. Make sure you use the correct slot in the panel.
Attach the neutral wire for each circuit. For standard breakers, connect it to the neutral bus bar in the panel. For special breakers like AFCI or GFCI, connect the neutral wire to the labeled terminal on the breaker.
Connect the hot wire (usually black or red) to the terminal marked “Load Power” on the mcb. Tighten the screw so the wire does not come loose.
If you use AFCI or GFCI breakers, attach the coiled white pigtail wire to the neutral bus bar in the panel.
Snap the breaker into its slot in the panel. Loop any extra wire along the inside edge of the panel to keep things neat.
Double-check all connections. Make sure you connect wires to the right terminals and that every screw is tight.
Callout: Neat wires help you avoid problems later. Always label each wire and breaker in the panel. This makes future repairs easier.
You have now finished the main steps to install miniature circuit breakers. This guide helps you work safely and keeps your panel organized. When you follow these steps, you make sure your mcb works well and protects your electrical system.
After you install your miniature circuit breaker, you need to make sure everything works as it should. Safety checks help you catch problems before you restore power. These steps protect your home and give you peace of mind. You will learn the correct usage of your new breaker and keep your system safe.
Start with a careful look at your work. Check the panel for any loose wires or misplaced parts. Inspect connections at each terminal. Make sure you see no exposed copper or frayed insulation. Look for signs of damage or burning. If you see anything wrong, fix it before you move on.
Inspect connections for tightness and proper placement.
Confirm that all wires follow the correct usage as shown in your usage guide.
Check that the breaker sits flat on the DIN rail.
Tip: Use a flashlight to see inside the panel. Good lighting helps you spot small problems.
A neat panel makes future usage and maintenance easier. You lower the risk of electrical circuit protection failure when you keep things tidy.
Now you need to test your work. Testing helps you confirm that the breaker will provide electrical circuit protection. Before you restore power, use a multimeter to check for continuity. This step shows if your wiring is complete.
Set your multimeter to continuity mode.
Touch the probes to the breaker’s terminals.
If you hear a beep, your circuit is complete.
After you restore power, test breaker operation. Flip the breaker on and off. Make sure it moves smoothly. Test breaker tripping by pressing the test button if your model has one. This step checks the usage and safety features.
Test breaker function as part of your regular usage routine.
If the breaker trips, follow the steps for how to reset a miniature circuit breaker.
Always inspect connections again after testing.
Note: Testing and regular usage checks help you spot issues early. You keep your electrical circuit protection strong.
You should restore power only after you finish all safety checks. This habit keeps your system safe and helps you avoid problems.
Wiring mistakes happen a lot when you install miniature circuit breakers. Sometimes, people pick the wrong breaker for their circuit. Always check if your breaker matches AC or DC systems. Using wires that are too thin can make things overheat. Thin wires do not protect your system well. Pick the right wire size for each circuit. Loose connections can make sparks and lower protection. Tighten every screw and check each terminal. If you do not mount the breaker right, it can cause problems. Put the breaker firmly on the DIN rail for good protection.
Using the wrong breaker type can be dangerous.
Thin wires or loose connections lower protection.
Mounting the breaker wrong makes it work poorly.
Not following local rules can cause trouble and weak protection.
Tip: Check your wiring often for damage or loose wires. This helps keep your electrical system safe.
Putting too many devices on one circuit can overload your miniature circuit breaker. This can make the breaker trip and stop working right. Overloading can cause fires and hurt your home. It can also break your appliances and make the power go out. You need to know how much load each circuit can handle.
Too much current can start a fire.
Electric shocks can happen from short circuits.
Appliances can break if protection fails.
Power outages happen when breakers trip from overload.
To stop overloading, use different outlets for your devices. Surge protectors help manage power. Unplug things you do not use. Pick energy-saving appliances for better protection. If you are not sure, ask an expert for help.
If you skip safety steps, you can have big problems. Not checking your work can leave loose wires or bad grounding. This makes shocks and fires more likely. Putting many wires in one terminal can make connections loose. Loose connections lower protection.
Loose wires or bad grounding can cause shocks.
Wrong installation can make sparks and fires.
Skipping permits can cause legal trouble and no insurance protection.
Note: Always follow every safety step. If you see any problems, get a trained electrician to check your breaker box. This keeps your home and family safe.
You may find that your miniature circuit breaker does not fit into the panel. This problem often happens when the breaker model does not match the DIN rail or the panel slot. Always check that you have the correct type and size before you begin. If the breaker feels loose or will not snap in, do not force it. Forcing can damage both the breaker and the panel. Instead, compare the new breaker with the old one. Look at the mounting clips and the width. If you see a difference, you may need a different model. A breaker that fits well will sit flat and not move when you press on it.
Tip: Always bring the old breaker to the store when buying a replacement. This helps you get the right match.
If your new breaker keeps tripping, you need to find out why. Several common problems can cause this:
Overloaded circuits
Short circuits
Ground faults
Arc faults
Overloads happen when you plug in too many devices. The breaker trips to stop the wires from overheating. Short circuits occur when a hot wire touches a neutral or ground wire. This causes a sudden surge of current. Ground faults happen when electricity escapes to the ground, often through a damaged wire. Arc faults are sparks that jump between wires or connections.
You can fix overloads by unplugging some devices. If the breaker still trips, check for damaged wires or outlets. Sometimes, you need an electrician to find hidden problems.
Loose connections can cause many issues in your electrical panel. You might notice flickering lights, warm spots on the panel, or even a burning smell. These signs mean you should check your connections right away. Use a flashlight to look for pitting, charring, or discoloration around the terminals. These marks show that a connection is not tight.
You can also use a thermal scanner to find hot spots. Compare the temperature of each breaker. If one is much warmer, it may have a loose or corroded connection. After you fix a loose wire, always tighten the screw and check again. Write down what you fixed so you can keep track. Good records help you spot patterns and prevent future problems.
Note: Always turn off the main power before you touch any wires or terminals. Safety comes first every time.
Taking care of your mcb keeps your electrical system safe. You should check your mcb often for any problems. If you look after it, your mcb will work when you need it.
Check your mcb on a set schedule. This helps you find problems early and keeps things safe. Use the table below to help you know what to do:
Inspection Step | Description |
|---|---|
Visual Inspection | Look for broken parts, rust, or loose wires and grounding. |
Electrical Testing | Use a multimeter to check voltage and test insulation. |
Cleaning and Lubrication | Wipe the outside and add oil to moving parts if needed. |
Documentation | Write down what you do for future checks. |
Scheduling | Make a plan for regular checks. |
Assigning Responsibilities | Make sure trained people do the checks. |
You can also do these checks:
Load testing shows if the mcb trips with real use.
Insulation resistance testing finds weak spots in insulation.
Multimeter voltage testing checks if the mcb works right.
Continuity testing checks if power flows when the mcb is ON and stops when OFF.
Tip: Always turn off power before you check or test your mcb.
You should know when your mcb is getting old or worn out. These signs mean your mcb may need fixing or changing. Watch for these things:
The mcb trips a lot
You see burn marks or smell something strange near the mcb
There are cracks or broken pieces
The mcb panel has spots that look burned or discolored
The mcb trips often because of too many things plugged in
If you see any of these, check your mcb right away. A worn mcb cannot keep your system safe.
Change your mcb if you find big problems when you check it. Experts say you should follow basic steps to check molded-case circuit breakers. These steps help you know if your mcb is still safe. Trained people should do these checks, especially in big buildings or factories.
Replace your mcb if:
It trips all the time, even after you fix the load
You see burn marks or smell burning
The mcb is broken or has cracks
The mcb does not pass electrical tests
Note: A new mcb gives better protection and keeps your system safe.
Looking after your mcb helps you avoid problems and keeps your home or business safe. Regular checks and fixing problems fast help your mcb last longer.
To put in a miniature circuit breaker safely, do these steps. First, pick the right breaker for your system. Next, turn off the main power. Put on safety gear like gloves and goggles. Check all the connections to make sure they are tight. Put the panel cover back on when you finish. Turn the power back on and listen for strange sounds. Test the breaker to see if it works right.
HAIPART’s breakers follow tough quality rules:
Quality Metric | Specification |
|---|---|
Stamping precision | ±0.02mm |
Environmental cert. | ROHS/REACH |
Quality guarantee | 10-year |
Doing regular checks and getting help from a licensed electrician keeps your system safe and working well for a long time.
HAIPART is a diversified company in the low-voltage electrical apparatus field with comprehensive production capabilities. We not only independently produce plastic and metal parts but also process them into components through various advanced manufacturing techniques. Our expertise covers mold design and manufacturing, automation equipment R&D, and finished product assembly, offering one-stop solutions to our customers.
You use a miniature circuit breaker to protect your electrical system. It stops the flow of electricity when there is too much current or a short circuit. You can reset it after it trips.
You check the voltage and current rating for your circuit. You pick an MCB that matches your system’s needs. You can ask an expert or use the HAIPART usage guide for help.
You can install an MCB if you follow safety steps and use the right tools. You must turn off the power and wear protective gear. If you feel unsure, you should call a licensed electrician.
You unplug some devices and check for damaged wires. You look for signs of overload or short circuit. If the problem does not stop, you contact an electrician for help.
You inspect your MCB every six months. You look for burn marks, loose wires, or strange smells. Regular checks help you keep your electrical system safe.
